Eco-Flo PED Series Owner's Manual

Eco-Flo PED Series Owner's Manual

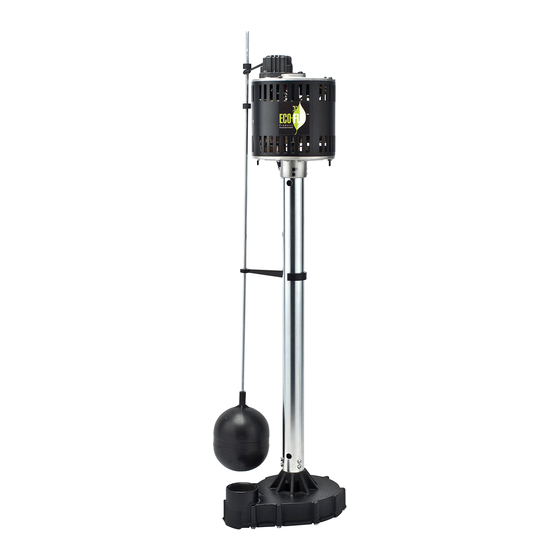

1/3 & 1/2 hp pedestal sump pumps

Advertisement

EPP
with
Vertical
Switch
IMPORTANT SAFETY INSTRUCTIONS
Carefully read and follow all safety
instructions in this manual and on pump.
SAVE THESE INSTRUCTIONS - This manual
contains important instructions that should be
followed during installation, operation, and
maintenance of the product.
Save this manual for future reference.
Safety Labels
This is the safety alert symbol. When you
see this symbol on your pump or in this manual,
look for one of the following signal words and be
alert to the potential for personal injury!
Indicates a hazard which, if
not avoided, will result in death or serious injury.
Indicates a hazard which,
if not avoided, could result in death or serious
injury.
Indicates a hazard which, if
not avoided, could result in minor or moderate
injury.
NOTICE
indicates practices not related to
personal injury.
Keep safety labels in good condition. Replace
missing or damaged safety labels.
OWNER'S MANUAL
PED SERIES
1/3 & 1/2 HP
Pedestal Sump
Pumps
EPC
with
CONTENTS:
Vertical
General Safety . . . . . . . . . . . . . . . . . . . . 1
Switch
Pre-Installation & Assembly. . . . . . . . . . .3
Installation . . . . . . . . . . . . . . . . . . . . . . . 4
Troubleshooting . . . . . . . . . . . . . . . . . . . 6
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . 7

General Safety

Risk of burns. Do not
touch an operating motor. Motors are de-
signed to operate at high temperatures. To
avoid burns when servicing pump, allow it to
cool for 20 minutes after shut-down before
handling.
Do not allow pump or any system compo-
nent to freeze. To do so will void warranty.
Pump water only with this pump.
Periodically inspect pump and system com-
ponents.
Wear safety glasses at all times when work-
ing on pumps.
BEFORE YOU START
A sump pump is an electrical
device designed to operate in
inheretly wet environments.
ALWAYS USE EXTREME
CAUTION
when installing or
maintaining this product.
®

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PED Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Eco-Flo PED Series

  • Page 1 OWNER’S MANUAL PED SERIES ® 1/3 & 1/2 HP Pedestal Sump Pumps with with Vertical CONTENTS: BEFORE YOU START Vertical Switch General Safety ....1...
  • Page 2 APPLICATIONS Ideal for High-Volume Water Removal from Basement Sump Pits SPECIFICATIONS Capacity Cord Solids Model Volt Amps (GPH at 0’) Max Head Construction Impeller Length Pumped EPP33 3600 18’ Thermoplastic Thermoplastic 8’ 3/16” EPC33 3600 18’ Cast Iron Thermoplastic 8’ 3/16”...
  • Page 3 PRE-INSTALLATION PACKAGE CONTENTS BEFORE FIRST USE Carefully examine the pump and all parts to ensure no parts are damaged. If any part of the pump appears to be dam- aged, do not use the pump and contact the Customer Service Team at 1-877-326-3561. INTENDED USE This pump is suitable to pump rain water and also can be used both for permanent and temporary installation.
  • Page 4 INSTALLATION PREPARING THE PUMP BASIN PLACING THE PUMP IN A BASIN • Place the pump (A) on a hard surface inside the sump • The pump must be installed in a suitable basin. Ensure the surface is clear of debris. basin (not included).
  • Page 5 OPERATION CONNECTING POWER AND TESTING OPERATING THE PUMP PUMP OPERATION • The pump will start automatically • Plug the pump power cord into 120V when the water level raises to Discharge Pipe Electrical GFCI power outlet. the appropriate depth to activate Connection the switch.
  • Page 6 TROUBLESHOOTING PROBLEM POSSIBLE CAUSE CORRECTIVE ACTION THE PUMP DOES NOT RUN. 1. The line circuit breaker is off, or fuse is 1. Reset the breaker or replace the fuse. If the problem blown or loose continues, contact a plumbing professional. 2.
  • Page 7 You. This warranty gives You specific legal rights and You may also have other rights which vary from state to state. ® 1899 Cottage Street, Ashland, Ohio 44805 Telephone: 1-877-326-3561 Fax: 1-877-326-1994 Copyright © 2020, ECO-FLO PRODUCTS, INC. www.ecofloproducts.com EF-0064/PEDOM-rev. 04/2020...

This manual is also suitable for:

Epp33Epc33Epp50Epc50
