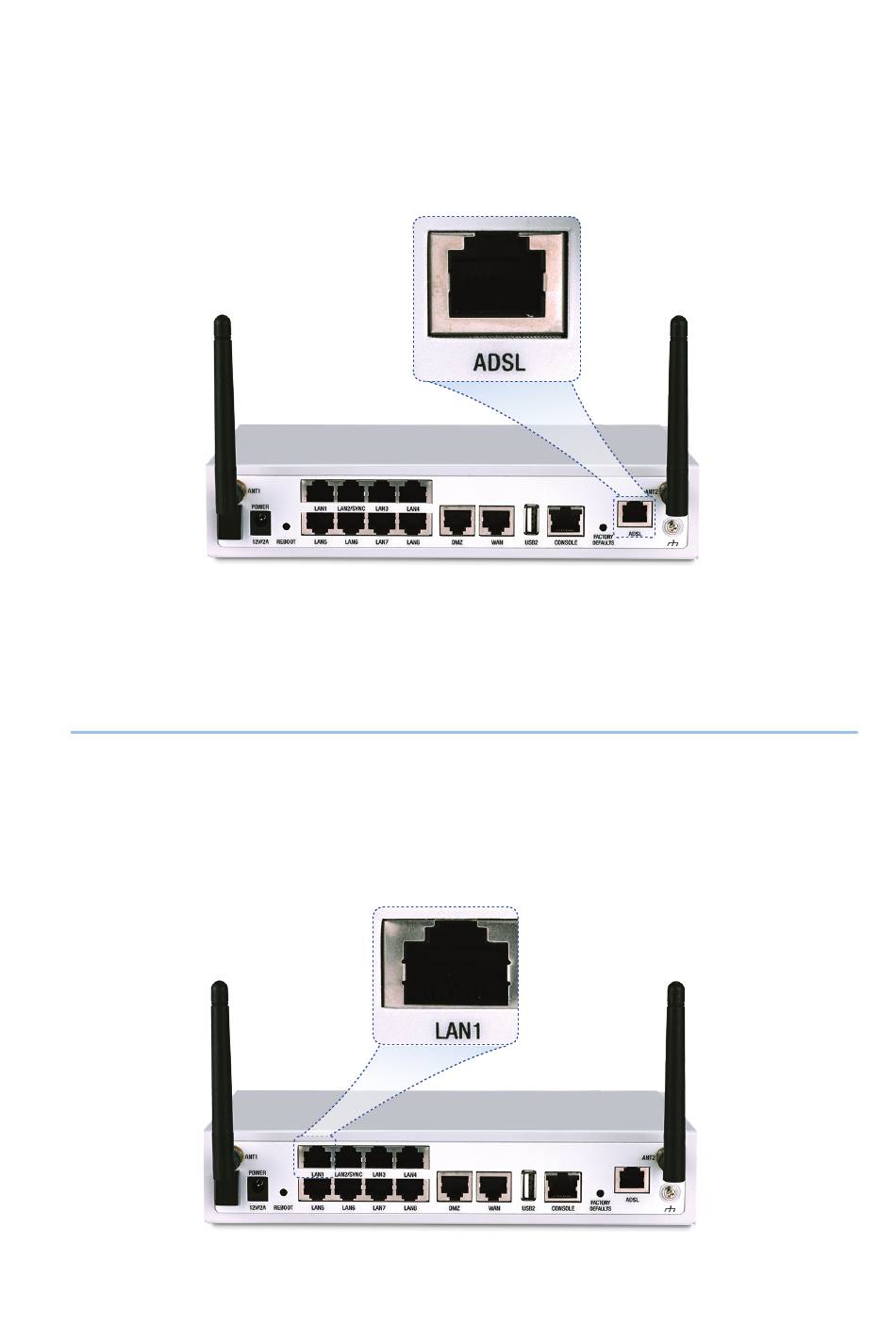

For ADSL Models:

• Connect the included telephone cable to DSL port on the 1100 Appliance rear
panel and plug it into ADSL line socket.
• DSL Link LED on the front panel will light when connection is established.
Important Note: you must have a microfilter connected to each socket on the
line the ADSL is enabled on, even if you will not connect the ADSL modem to
that socket.
3

Connect Your PC for Initial Setup

• Connect another Ethernet cable to the LAN1 port on the 1100 Appliance rear
panel and plug it into the network adapter on your PC.
• The LAN1 Link LED on the front panel will light, indicating that the cable is
connected properly.
