KDS-EN5, KDS-DEC5 Quick Start Guide
This guide helps you install and use your KDS-EN5, KDS-DEC5 for the first time.
Go to
Scan for full manual
firmware upgrades are available.
Step 1: Check what's in the box
KDS-EN5 4K Video Encoder / Streamer OR
KDS-DEC5 4K Video Decoder

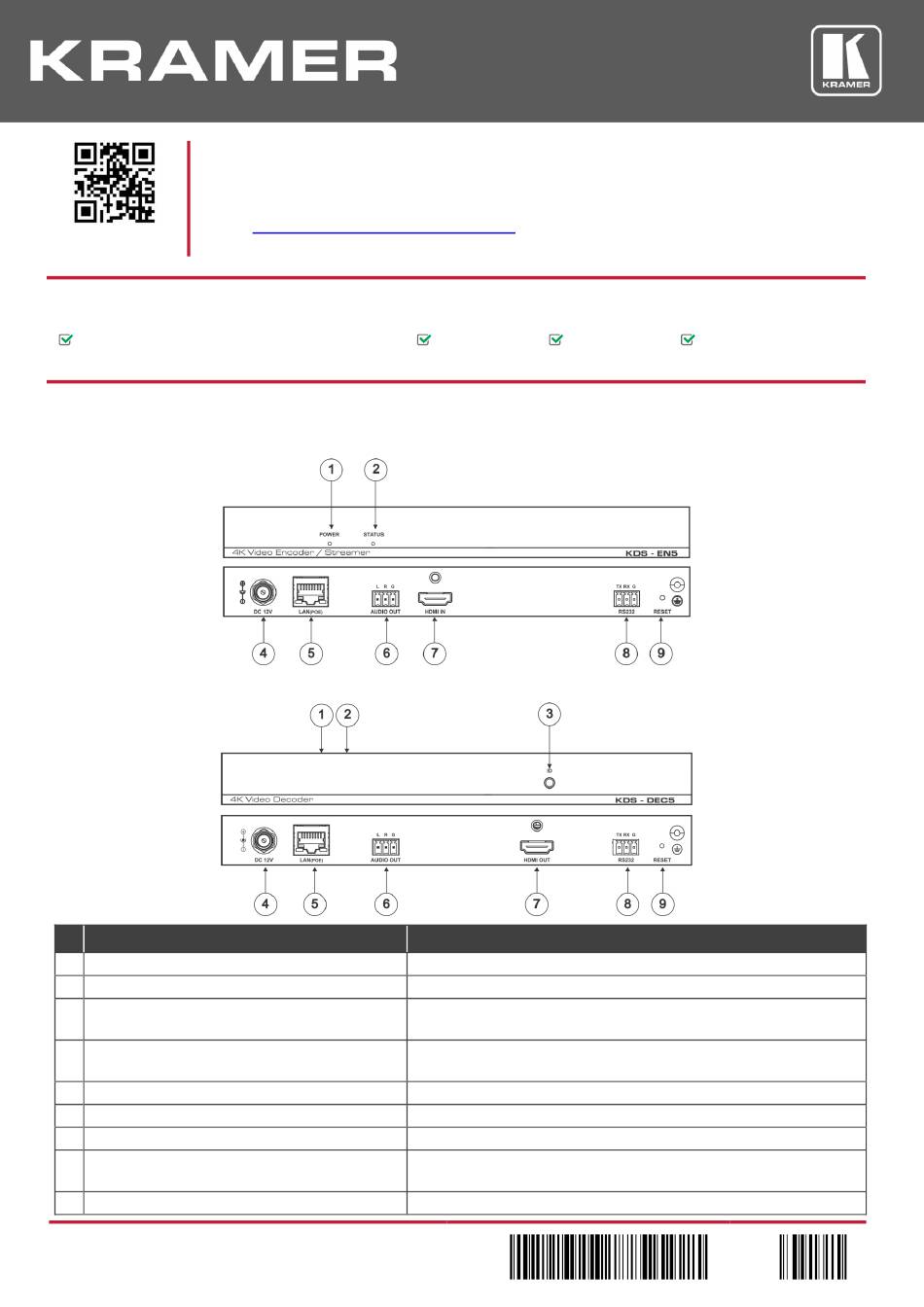

Step 2: Get to know your KDS-EN5, KDS-DEC5

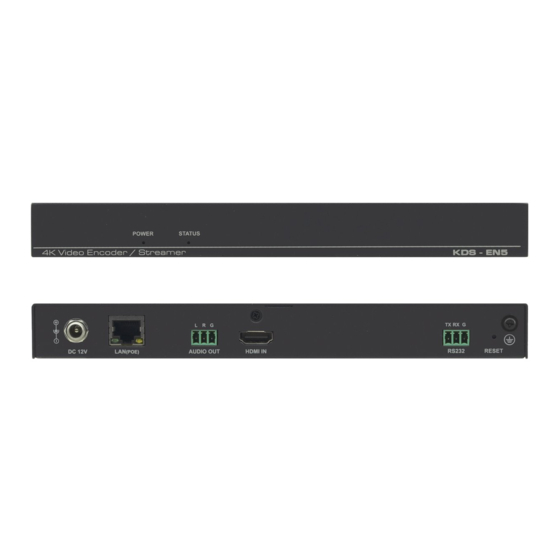

KDS-EN5
KDS- DEC5
# Feature
1 POWER LED Indicator (on top of unit)
2 STATUS LED Indicator (on top of unit)
3
ID Button (KDS- DEC5)
4 DC 12V Connector
5 LAN (POE) RJ-45 Connector
6 AUDIO OUT 3-pin Terminal Block
7 HDMI IN (KDS-EN5) / OUT (KDS-DEC5)Connector
8 RS-232 3-pin Terminal Block Connector
9 RESET Button
KDS-EN5, KDS-DEC5 Quick Start
(P/N: 2900-300906QS REV 1)
www.kramerav.com/downloads/KDS-EN5
Function
Lights when the unit is powered on.
Lights when unit is functioning properly.
Press to display the encoder and decoder information, such as device IP
address and ID, on the screen.
Connect to a 12V power adapter (optional – when power is not supplied by
PoE).
Connect to a PC via a LAN to control the unit and to receive power via PoE.
Connect to an unbalanced audio acceptor.
Connect to an HDMI source/acceptor.
Connect to an external device (e.g. a camera or display screen) that can be
controlled via the IP controller SW / API.S
Press and hold for about 8 seconds to reset to factory default settings.
to download the latest user manual and check if
4 Rubber feet 1 Bracket set
P/N:
2 9 0 0 - 3 0 0 9 0 6 QS
1 Quick start guide
Rev: 1
