Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: KDS-EN1 HD Video Encoder/Streamer P/N: 2900-300150 Rev 3... -
Page 3: Table Of Contents
Installing the KDS-EN1 in a Rack Connecting the KDS-EN1 Connecting to the KDS-EN1 via Ethernet Connecting the Balanced/Unbalanced Stereo Audio Input Operating the KDS-EN1 Using the Front Panel Buttons Unlocking the Front Panel Buttons Using the Menu Changing the Video Input Selection... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront video, audio, presentation, and broadcasting professionals on a daily basis. In recent years, we have redesigned and upgraded most of our... -
Page 5: Getting Started
Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer KDS-EN1 away from moisture, excessive sunlight and dust This equipment is to be used only inside a building. It may only be connected to other equipment that is installed inside a building. -
Page 6: Recycling Kramer Products
Kramer Electronics has made arrangements with the European Advanced Recycling Network (EARN) and will cover any costs of treatment, recycling and recovery of waste Kramer Electronics branded equipment on arrival at the EARN facility. For details of Kramer’s recycling arrangements in your particular country go to our recycling pages at http://www.kramerelectronics.com/support/recycling/. -
Page 7: Overview
Overview The KDS-EN1 HD Video Encoder/Streamer is ideal as a broadcast quality video scaler and audio embedder/de-embedder for digital signals up to 3G HD-SDI, composite and component video signals, HDMI and balanced audio signals, which are output as an IP stream and as a DVB-ASI signal. -
Page 8: Defining The Kds-En1 Hd Video Encoder/Streamer

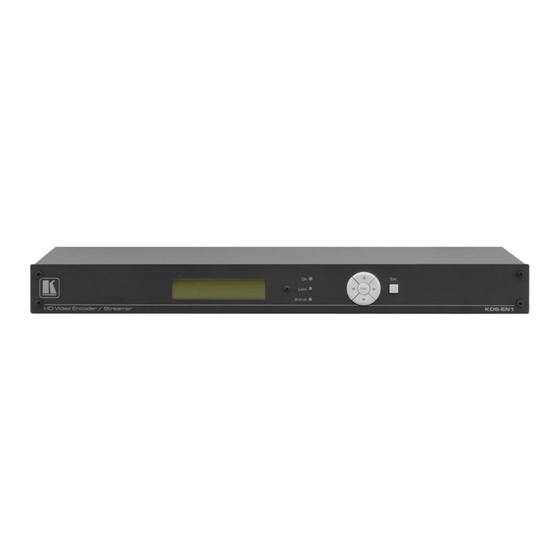

Defining the KDS-EN1 HD Video Encoder/Streamer Figure 1 defines the front panel of the KDS-EN1. Figure 1: KDS-EN1 HD Video Encoder/Streamer Front Panel Feature Function LCD Readout Displays either the input/output resolution currently selected or the menu during configuration ON LED... -
Page 9: Figure 2: Kds-En1 Hd Video Encoder/Streamer Rear Panel
Figure 2 defines the rear panel of the KDS-EN1. Figure 2: KDS-EN1 HD Video Encoder/Streamer Rear Panel Feature Function CV BNC Connector Connect to a composite video source Y BNC Connector Connect to the Y component of the component video source... -
Page 10: Installing The Kds-En1 In A Rack
Installing the KDS-EN1 in a Rack This section provides instructions on rack mounting the KDS-EN1. KDS-EN1 - Installing the KDS-EN1 in a Rack... -
Page 11: Connecting The Kds-En1
KDS-EN1. After connecting your KDS-EN1, connect its power and then switch on the power to the other devices. Figure 3: Connecting the KDS-EN1 HD Video Encoder/Streamer To connect the KDS-EN1 as illustrated in the example in Figure 1. Connect the composite video source (for example, a composite video player) to the CV INPUT BNC connector. -
Page 12: Connecting To The Kds-En1 Via Ethernet
6.1.1 Connecting the Ethernet Port directly to a PC You can connect the Ethernet port on the KDS-EN1 to the Ethernet port on your PC via a crossover cable with RJ-45 connectors. This type of connection is recommended for identification of the factory default IP Address of the KDS-EN1 during the initial configuration. -
Page 13: Figure 4: Local Area Connection Properties Window
6. Select Use the following IP Address and enter the details as shown in Figure 5. You can use any IP address in the range 192.168.1.1 to 192.168.1.255 (excluding 192.168.1.39) that is provided by your IT department. KDS-EN1 - Connecting the KDS-EN1... -
Page 14: Connecting The Balanced/Unbalanced Stereo Audio Input
7. Click OK. 6.1.2 Connecting to the Ethernet Port via a Network Switch/Hub To connect to the Ethernet port on the KDS-EN1 via a network switch/hub: • Connect the PC to the Ethernet network switch/hub using a straight through cable... -
Page 15: Figure 6: Balanced Stereo Audio Connection
Figure 6: Balanced Stereo Audio Connection Figure 7: Unbalanced Stereo Audio Connection KDS-EN1 - Connecting the KDS-EN1... -
Page 16: Operating The Kds-En1 Using The Front Panel Buttons
Approximately 30 seconds after powering on the KDS-EN1, the model name, firmware version and serial number of the device is displayed (standby display). When this display appears, you can operate the KDS-EN1 via ether the front panel buttons or remotely using Ethernet over a LAN (see... - Page 17 Min BitRate Sets the minimum video bitrate. This is From 1000Kbps to (VBR) only valid when in VBR mode and must 7999Kbps be less than the average video bitrate KDS-EN1 - Operating the KDS-EN1 Using the Front Panel Buttons...
- Page 18 Sets the service provider name Textual name Default—TV-Channel Packet Size Packet size selection 188, 204 FEC OFF, 204 FEC ON Default—188 System Bitrate Sets the system bitrate From 2000Kbps to 19999Kbps Default—9500Kbps KDS-EN1 - Operating the KDS-EN1 Using the Front Panel Buttons...
- Page 19 Host Gateway Sets the IP gateway address All valid gateway addresses of the device Default—192.168.1.1 Host MAC Sets the IP port number of All valid TCP ports the device Default—12-34-56-78-B0-6C KDS-EN1 - Operating the KDS-EN1 Using the Front Panel Buttons...
-
Page 20: Changing The Video Input Selection
To Reset the Device to Factory Default Configuration To reset the device to the factory default configuration: 1. Press Enter. The menu is displayed. KDS-EN1 - Operating the KDS-EN1 Using the Front Panel Buttons... - Page 21 4. Press down (▼) repeatedly until the Restore Initial option is displayed. 5. Press Enter. The “Updating …” message flashes for a few seconds and the factory defaults are loaded. 6. Press Esc twice to exit the menu. KDS-EN1 - Operating the KDS-EN1 Using the Front Panel Buttons...
-
Page 22: Operating The Kds-En1 Using The Web Pages
Operating the KDS-EN1 Using the Web Pages The embedded Web pages can be used to remotely operate the KDS-EN1 using a Web browser and an Ethernet connection over a LAN. The menu appears on the left side of the screen. There are ten Web pages: •... -
Page 23: Figure 9: Home Page
The following video parameters are included: • Input port selection • Resolution • • Encoding mode • Average, maximum and minimum bitrates Figure 10: Video Parameters Page For video parameter descriptions see Section 7.2.1. KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 24: Figure 11: Audio Parameters Page
The following system parameters are included: • PMT PID • PCR PID • VID PID • AUD PID • Service name and provider name • TS ID • Service ID • Packet size • System bitrate KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 25: Figure 12: System Parameters Page
The following TS IP parameters are included: • Stream IP, netmask and gateway • MAC address • Protocol • Destination IP and port • Enable/disable IGMP FEC column offset • • FEC column Na number KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 26: Figure 13: Ts Ip Parameters Page
Host IP Settings Page The following host IP parameters are included: • Host IP, netmask and gateway • MAC address Figure 14: Host IP Parameters Page For host IP parameter descriptions see Section 7.2.5. KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 27: Figure 15: System Information Page
8.1.8 Loading the Default Configuration Page The Load Default page allows you to retrieve a previously stored configuration. The message shown in Figure 17 is displayed before the operation is executed. KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 28: Figure 17: Load Default Confirmation Message
The Software Upgrade page allows you to upgrade the firmware of the device. Prior to performing this operation, you must download the latest firmware version to your PC. The latest version is available from http://www.kramerelectronics.com. Figure 19: Software Upgrade Page KDS-EN1 - Operating the KDS-EN1 Using the Web Pages... -
Page 29: Technical Specifications
0° to +40°C (32° to 104°F) STORAGE TEMPERATURE: –40° to +70°C (–40° to 158°F) HUMIDITY: 10% to 90%, RHL non-condensing DIMENSIONS: 19” x 9.41” x 1U (W, D, H) rack mountable WEIGHT: 1.8kg (3.97lbs) approx. ACCESSORIES: Power cord, rack “ears” KDS-EN1 - Technical Specifications... -
Page 30: Default Communication Parameters
Default Communication Parameters Ethernet IP Address 192.168.1.39 Subnet mask 255.255.255.0 Default gateway 0.0.0.0 KDS-EN1 - Default Communication Parameters... -
Page 31: Default Edid
1024 x 768p at 75Hz - VESA 1280 x 1024p at 75Hz - VESA EIA/CEA-861 Information Revision number..3 IT underscan..... Not supported Basic audio....Supported YCbCr 4:4:4....Supported YCbCr 4:2:2....Supported Native formats... 0 Detailed timing #1..1920x1080i at 60Hz (16:9) KDS-EN1 - Default EDID... - Page 32 Supports YCbCr 4:4:4..No Supports dual-link DVI... No Maximum TMDS clock..165MHz Report information Date generated... 03/02/2013 Software revision..2.60.0.972 Data source....File Operating system..6.1.7601.2.Service Pack 1 Raw data 00,FF,FF,FF,FF,FF,FF,00,2E,4D,19,06,01,00,00,00,09,17,01,03,80,66,39,78,0A,0D,C9,A0,57,47,98,27, 12,48,4C,BF,CF,00,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,01,1D,00,72,51,D0,1A,20,6E,28, 55,00,7E,88,42,00,00,1A,01,1D,00,BC,52,D0,1E,20,B8,28,55,40,C4,8E,21,00,00,18,00,00,00,FC,00,4B, 44,53,20,45,4E,31,20,20,20,20,20,20,00,00,00,FD,00,32,50,0F,44,0F,00,0A,20,20,20,20,20,20,01,EF, 02,03,20,70,4C,01,02,04,05,06,0E,10,11,13,14,19,1F,23,09,07,07,23,17,7F,38,66,03,0C,00,10,00,00, 01,1D,80,18,71,1C,16,20,58,2C,25,00,C4,8E,21,00,00,9E,01,1D,80,D0,72,1C,16,20,10,2C,25,80,C4,8E, 21,00,00,9E,8C,0A,D0,90,20,40,31,20,0C,40,55,00,13,8E,21,00,00,18,8C,0A,D0,8A,20,E0,2D,10,10,3E, 96,00,13,8E,21,00,00,18,D6,09,80,A0,20,E0,2D,10,08,60,22,00,12,8E,21,08,08,21,08,08,21,08,08,72 KDS-EN1 - Default EDID...
- Page 34 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
