KDS-EN6, KDS-DEC6 Quick Start Guide
This guide helps you install and use your KDS-EN6/KDS-DEC6 for the first time.
Go to
download the latest user manual and check if firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

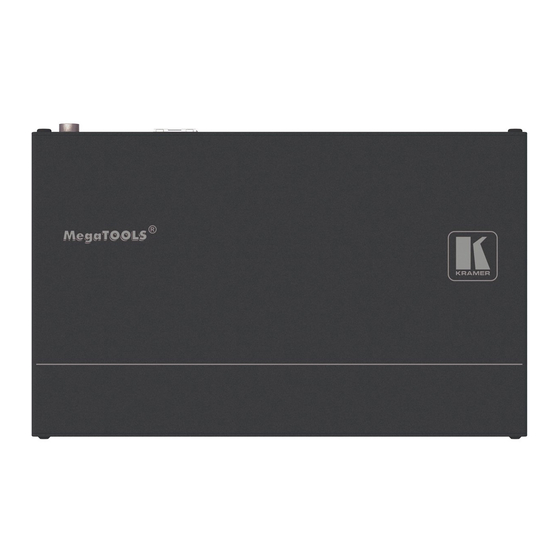

KDS-EN6 Video Encoder
KDS-DEC6 Video Decoder

Step 2: Install the KDS-EN6/KDS-DEC6

To mount the KDS-EN6/KDS-DEC6 in a rack, use an RK-T2B rack adapter. Alternatively, attach the rubber feet to the underside of
the KDS-EN6/KDS-DEC6 and place it on a table. A Kramer TOOLS™ can also be mounted on a desk top, wall or similar area.
Fasten a bracket on each side of the TOOLS using the two M3x8 screws (supplied). Use the flat-head screws (supplied) to fix the
TOOLS to the mounting surface or enable it to slide in place.

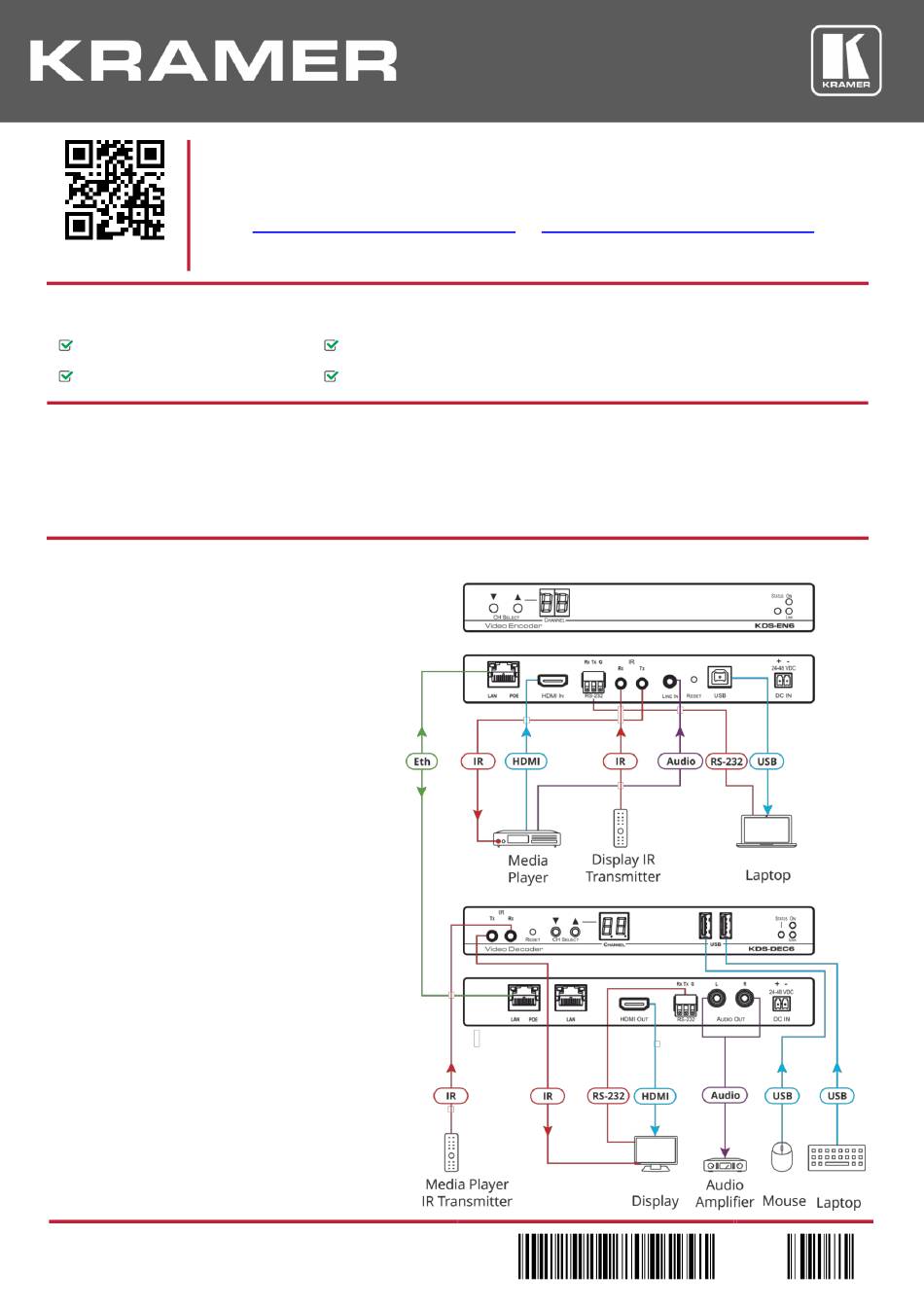

Step 3: Connect the inputs and outputs

Always switch OFF the power on each device
before connecting it to your
KDS-EN6/KDS-DEC6. For best results, we
recommend that you always use Kramer high-
performance cables to connect AV equipment to
the KDS-EN6/KDS-DEC6.

Step 4: Connect the power

By default, KDS-EN6 and KDS-DEC6 are
set to PoE. If you are not powering the
device via PoE, connect the KDS-DEC6
and the KDS-EN6 each to the 24-48 VDC
power adapter and connect the adapter to
the mains electricity. If 48V DC power is
connected, PoE is automatically disabled.
/
KDS-EN6 KDS-DEC6 Quick Start (P/N: 2900-300787QS REV 2)
www.kramerav.com/downloads/KDS-EN6
1 Bracket set for TOOLS
1 Quick start guide
t or www.kramerav.com/downloads/KDS-DEC6
P/N: 2 9 0 0 - 3 0 0 7 8 7 QS
to
Rev: 2
