Kohler Dongle 23777T Installation Instructions

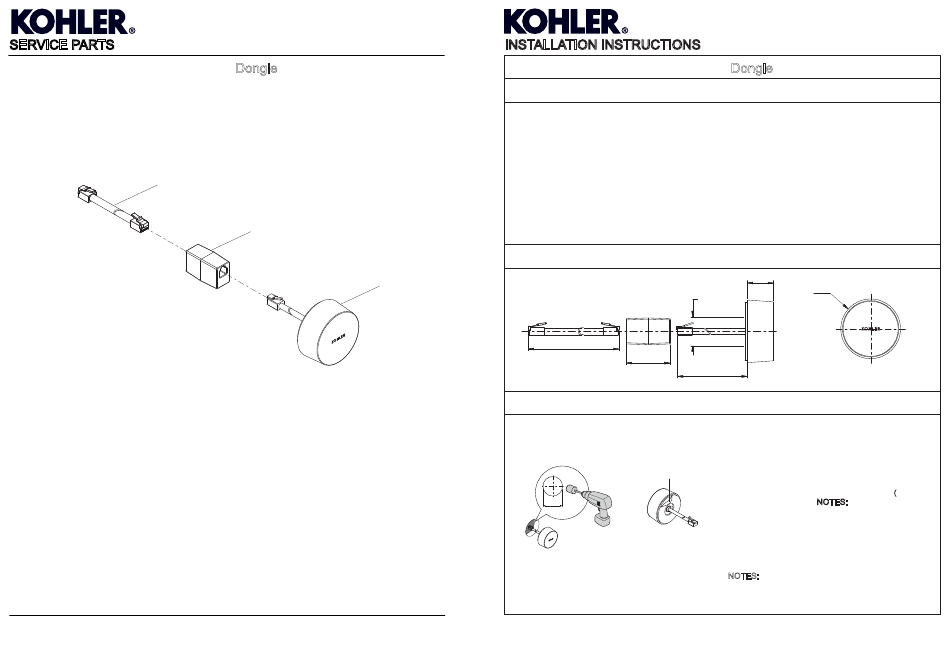

SERVICE PARTS
23777T
1391756
**Color code must be specified when ordering.
1388389-2A-B
DTV MODE
Dongle
1442283
1354512
INSTALLATION INSTRUCTIONS
BEFORE YOU BEGIN
All information is based on the latest product information available at the time of publication. Kohler Co. reserves
the right to make changes in product characteristics, packaging, or availability at any time without notice.
Please leave these instructions for the consumer. They contain important information.
NOTES:
1. Observe all plumbing, electrical, and building codes.
2. Isolate the electrical and water supplies before commencing installation.
3. DO NOT modify or extend the cables supplied with the product.
4. When possible, install the valve prior to installing the dongle.
5. Ambient Temperature: 1°C - 40°C; Maximum Relative Humidity: 95% non-condensing．
ROUGH-IN DIMENSIONS
5000
INSTALLATION
Ø30~40mm
Dongle
1388389-2A-B
4
23777T Dongle
22
Ø53
Ø30-Ø40
37
1000

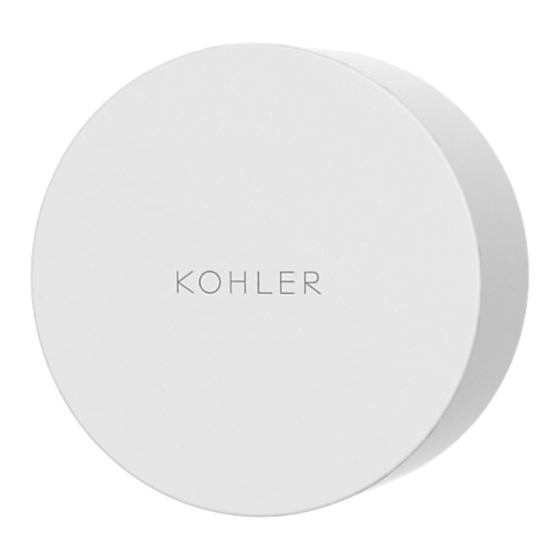

Install the Dongle
Through the dongle, terminal devices(such as mobile
phone, ipad) can be interconnected with shower
products, users can turn on/off the shower and set
water temperature and preset bath fill in APP.
Adhesive Paper
Decide a suitable location for the dongle. It can be
installed within 6 meters away from the valve（Cable-
1m, extension line-5m). NOTES: There should be no
metal barriers around the dongle. Drill a hole according
to the dimensions to install dongle. Route the dongle
cable through the hole and connect it to valve.
Use the cleaning wipe to clean the surface around
mounting hole. Remove the paper from the adhesive
back. Install the dongle in position and push firmly.
NOTES: The dongle cannot be adjusted when it is
fitted. Make sure to test fitment before removing the
tape.
DTV MODE
1
