HIKVISION DS-K5032-3XFD Quick Start Manual

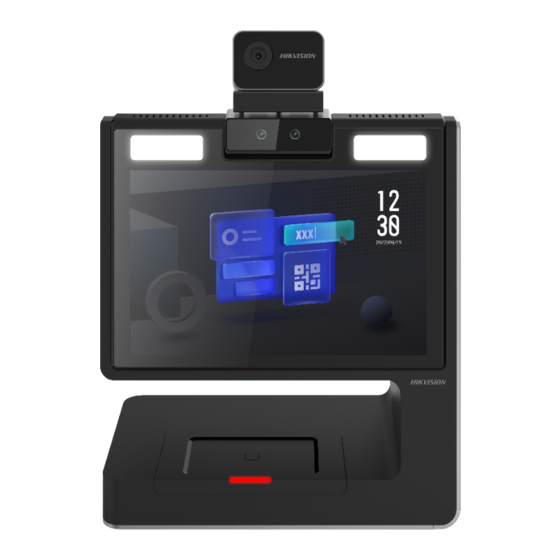

DS-K5032-3XFD Visitor Terminal
Quick Start Guide
UD20442B-A
