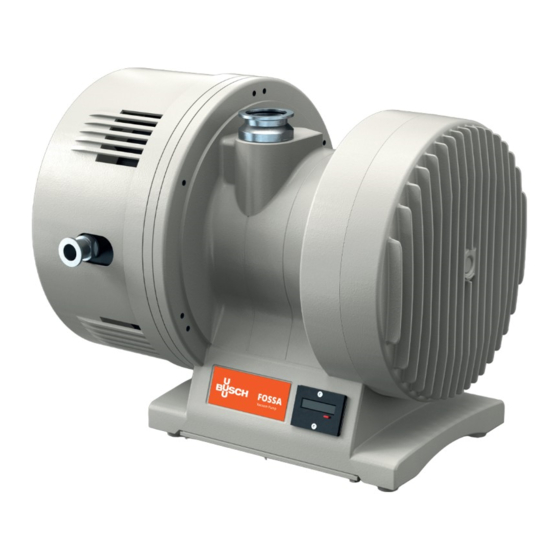

BUSCH FOSSA FO 0015 A A Instruction Manual
Vacuum pumps
Hide thumbs
Also See for FOSSA FO 0015 A A:
- Instruction manual (48 pages) ,
- Instruction manual (40 pages) ,
- Instruction manual (24 pages)
Related Manuals for BUSCH FOSSA FO 0015 A A
Summary of Contents for BUSCH FOSSA FO 0015 A A

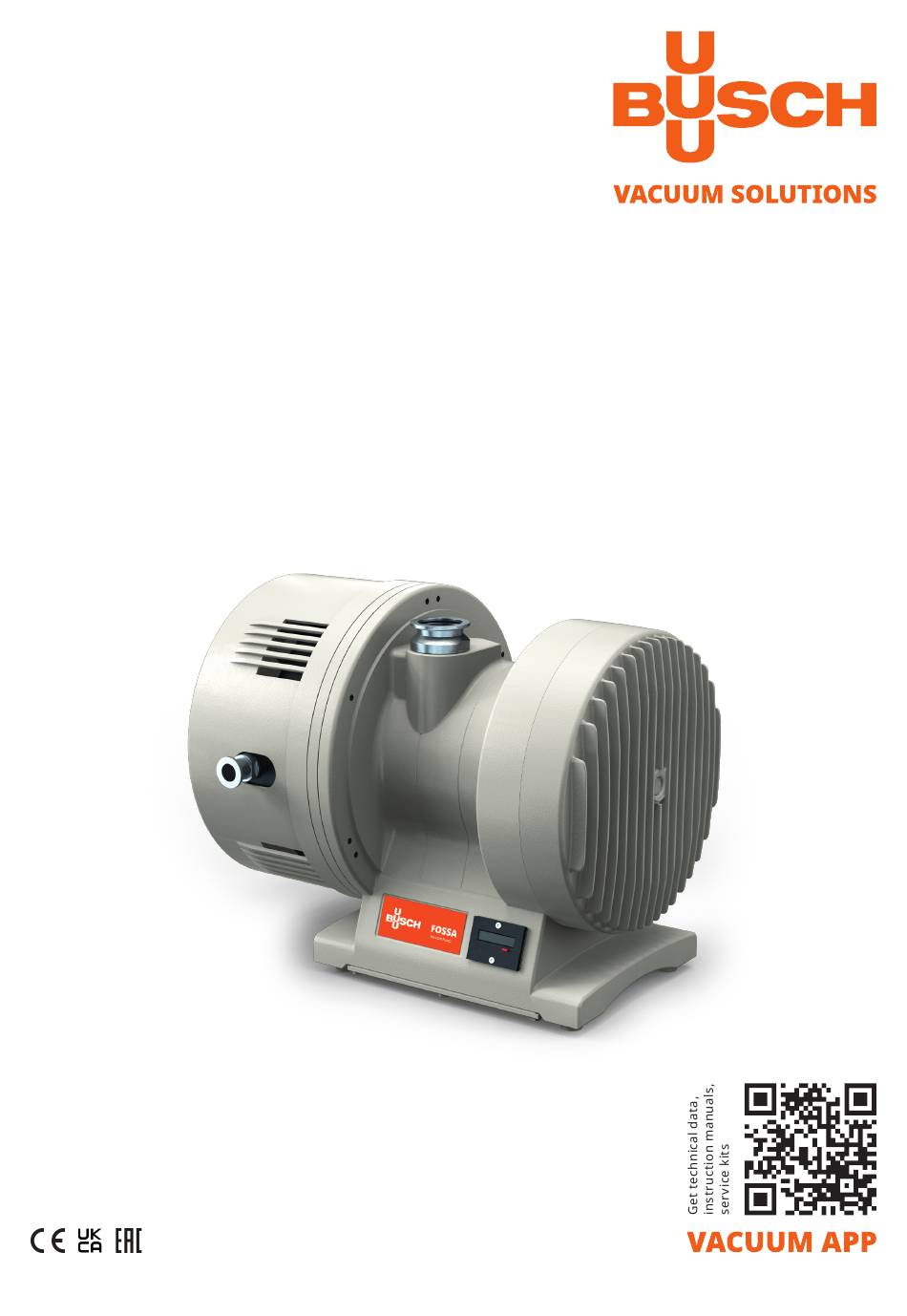

- Page 1 Instruction Manual FOSSA Scroll Vacuum Pumps FO 0015 A, FO 0035 B 0870573863/A0006_en / Original instructions / Modifications reserved 21/01/2022...
-
Page 2: Table Of Contents
Table of Contents Table of Contents 1 Safety ............................3 2 Product Description ........................4 2.1 Operating Principle ......................5 2.2 Application........................5 2.3 Standard Features ......................6 2.3.1 Non-return Valve ....................6 2.3.2 Inlet Screen ......................6 2.3.3 Operating Hours Counter ..................6 2.3.4 Variable-Frequency Drive (Single-phase Version Only) .......... -
Page 3: Safety
Safety Prior to handling the machine, this instruction manual should be read and understood. If anything needs to be clarified, please contact your Busch representative. Read this manual carefully before use and keep for future reference. This instruction manual remains valid as long as the customer does not change anything on the product. -
Page 4: Product Description
2 | Product Description Product Description OUT, NRV IN, IS MC, OOS Axial fan I/O and communication port (single-phase version only) Eye bolt Fuse holder Gas ballast valve connection Suction connection Inlet screen Mains connection Nameplate Non-return valve Operating hours counter On/off-switch (single-phase version only) Discharge connection NOTE... -
Page 5: Operating Principle
Conveying of other media leads to an increased thermal and/or mechanical load on the machine and is permissible only after a consultation with Busch. Depending on the optional variant, the machine may be used for ATEX or oxygen appli- cations, see Optional Variants [► 7]. -
Page 6: Standard Features
2 | Product Description 2.3 Standard Features 2.3.1 Non-return Valve The non-return valve (NRV), integrated to the discharge connection (OUT), protects the process against suckback. 2.3.2 Inlet Screen The inlet screen (IS), integrated to the suction connection (IN), prevents large solid parti- cles from entering into the machine. -
Page 7: Optional Variants
Transport | 3 2.5 Optional Variants 2.5.1 ATEX (Optional) According to ATEX classification, refer to the nameplate (NP), explosive gases and va- pour mixtures (zone 2) can be drawn in according to the scope of the Directive ATEX 2014/34/EU. 2.5.2 Oxygen (Optional) The machine is designed for conveying gases with an increased oxygen content (volume content greater than 21% and up to 100%) if the following label is stuck on the ma- chine body:... -
Page 8: Storage
4 | Storage Storage • Seal all apertures with adhesive tape or reuse provided caps. NOTICE Long storage time. Risk of damage to the machine! • Due to a long storage time the capacitors of the variable speed drive can lose efficien- cy because of electrochemical processes. -
Page 9: Connecting Lines / Pipes
• Make sure that all provided covers, guards, hoods, etc. are mounted. If the machine is installed at an altitude greater than 1000 meters above sea level: • Contact your Busch representative, the motor should be derated or the ambient temperature limited. -
Page 10: Suction Connection
– ISO-KF 40 If the machine is used as part of a vacuum system: • Busch recommends the installation of an isolation valve in order to prevent the process gases and debris flowing back to the vacuum system. 5.2.2 Discharge Connection Connection size(s): –... -
Page 11: Electrical Connection
• Make sure that the motor of the machine will not be affected by electric or electro- magnetic disturbance from the mains; if necessary seek advice from Busch. • Connect the protective earth conductor. Single-phase version: •... -
Page 12: Wiring Diagram Three-Phase Motor
5 | Installation 5.4.1 Wiring Diagram Three-Phase Motor • Wire the mating connector (delivered loose) in accordance with the scheme below: Mains connection (MC) 1 = Phase 1 (L1) 2 = Phase 2 (L2) 3 = Phase 3 (L3) 4 = Not used PE = Earth •... -
Page 13: I/O And Communication Port Schematic (Single-Phase Version Only)
"Logic 0" ► input voltage = 0 … 4 VDC "Logic 1" ► input voltage = 8 … 30 VDC Communication port via Modbus (RS485): Ask your Busch representative for more information. Instruction Manual FOSSA FO 0015 A - FO 0035 B_EN_en 13 / 28... -
Page 14: Commissioning
6 | Commissioning Commissioning WARNING FO 0035 B operates at 100 hPa (mbar) in continuous operation. Risk of damage to the machine! ATEX ► Risk of explosion and injuries! • Make sure to comply with the maximum continuous suction pressure, see Technical Data [► 20]. -
Page 15: Gas Ballast Valve Adjustment
WARNING Version intended for oxygen application. Risk of fire! • Do not perform maintenance task before being informed about oxygen requirements. • Ask your Busch representative for more information. CAUTION Hot surface. Risk of burns! • Prior to any action requiring touching the machine, let the machine cool down first. -
Page 16: Maintenance Schedule
Changing the tip seals without training. Loss of Busch liability! Loss of efficiency! • Ask your Busch representative before performing this maintenance task. • Order the Busch genuine service kit. • Follow the service instructions (document ref. 0870 202 845) delivered with the ser- vice kit (see Spare Parts) before performing this maintenance task. -
Page 17: Overhaul
• Decontaminate the machine as much as possible and state the contamination sta- tus in a ‘Declaration of Contamination’. Busch will only accept machines that come with a completely filled in and legally binding signed ‘Declaration of Contamination’ (form downloadable from www.buschvacuum.com). -
Page 18: Spare Parts Kits
10 | Spare Parts Kits 10 Spare Parts Kits 10.1 Overview Pos. 8 Pos. 8 Pos. 26 Pos. 81 Pos. 83 Pos. 86 Pos. 87 Pos. 82 10.2 Available Kits Spare parts kit Description Part no. Service kit Includes: 0992 237 173 (FO 0015 A) 1x O-ring (pos. -
Page 19: Accessories
The machine does not start. The motor is not supplied • Check the power supply. with the correct voltage. Internal parts are worn or • Repair the machine damaged (contact Busch). The fuse has blown. • Check the electrical installation. • Replace the fuse. The motor is defective. -
Page 20: Technical Data
13 | Technical Data 13 Technical Data FO 0015 A FO 0035 B Nominal pumping speed m³/h 15 / 18 35 / 42 Single-phase version: (normal / boost)* l/min 250 / 300 583 / 700 Three-phase version: (50Hz / 60Hz) 8.8 / 10.6 20.6 / 24.7 Ultimate pressure (gas ballast closed) -
Page 21: Eu Declaration Of Conformity
This Declaration of Conformity and the CE-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufacturer. When this machine is integrated into a superordinate machinery the manufacturer of the superordinate machinery (this can be the operating company, too) must conduct the conformity assessment process for the superordinate machine or plant, issue the Declaration of Conformity for it and affix the CE-marking. - Page 22 In case control systems are integrated. Only if an ATEX classification is written on the nameplate. Legal person authorized to compile the technical file Busch Dienste GmbH and authorized representative in the EU Schauinslandstr. 1 DE-79689 Maulburg (if the manufacturer is not located in the EU): Chevenez, 14.05.2021...
-
Page 23: Declaration Of Conformity
15 UK Declaration of Conformity This Declaration of Conformity and the UKCA-markings affixed to the nameplate are valid for the machine within the Busch scope of delivery. This Declaration of Conformity is issued under the sole responsibility of the manufac- turer. - Page 24 In case control systems are integrated. Only if an ATEX classification is written on the nameplate. Legal person authorized to compile the technical file Busch (UK) Ltd and importer in the UK 30 Hortonwood (if the manufacturer is no...
- Page 25 Note...
- Page 26 Note...
- Page 27 Note...
- Page 28 Busch Vacuum Solutions We shape vacuum for you. Argentina Denmark Malaysia South Africa info@busch.com.ar info@busch.dk busch@busch.com.my info@busch.co.za Australia Finland Mexico Spain sales@busch.com.au info@busch.fi info@busch.com.mx contacto@buschiberica.es Austria France Netherlands Sweden busch@busch.at busch@busch.fr info@busch.nl info@busch.se Bangladesh Germany New Zealand Switzerland sales@busch.com.bd info@busch.de sales@busch.co.nz...
