LEGRAND Wattstopper FSP-301 Installation Instructions Manual

No: 27938 – 06/21 rev. 7
Catalog Number • Numéro de Catalogue • Número de Catálogo: FSP-301
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
DESCRIPTION AND OPERATION
The FSP-301 is a motion sensor that dims lighting from high to low
based on movement. This slim, low-profile sensor is designed for
installation inside the bottom of a light fixture body. The PIR lens
module connects to the FSP-301 through a 1.30" diameter hole in
the bottom of the fixture.
The sensors use passive infrared (PIR) sensing technology that
reacts to changes in infrared energy (moving body heat) within the
coverage area. Once the sensor stops detecting movement and
the time delay elapses, lights will go from high to low mode and
eventually to an OFF position if it is desired. Sensors must directly
"see" motion of a person or moving object to detect them, therefore
careful consideration must be given to sensor luminaire placement
and lens selection. Avoid placing the sensor where obstructions
may block the sensor's line of sight.
The FSP-301 has a photocell that can read the light level and
continuously raise or lower the dimming level of the lighting loads,
based on the ambient light and desired light level setting.
The FSP-301 operates at 12–32 VDC. It is designed to be installed
in indoor and outdoor environments.
NOTE: When the FSP-301 is powered up the first time, it will use
factory default parameters to operate. If adjustments are
needed, the Sensor Configuration mobile app must be used.

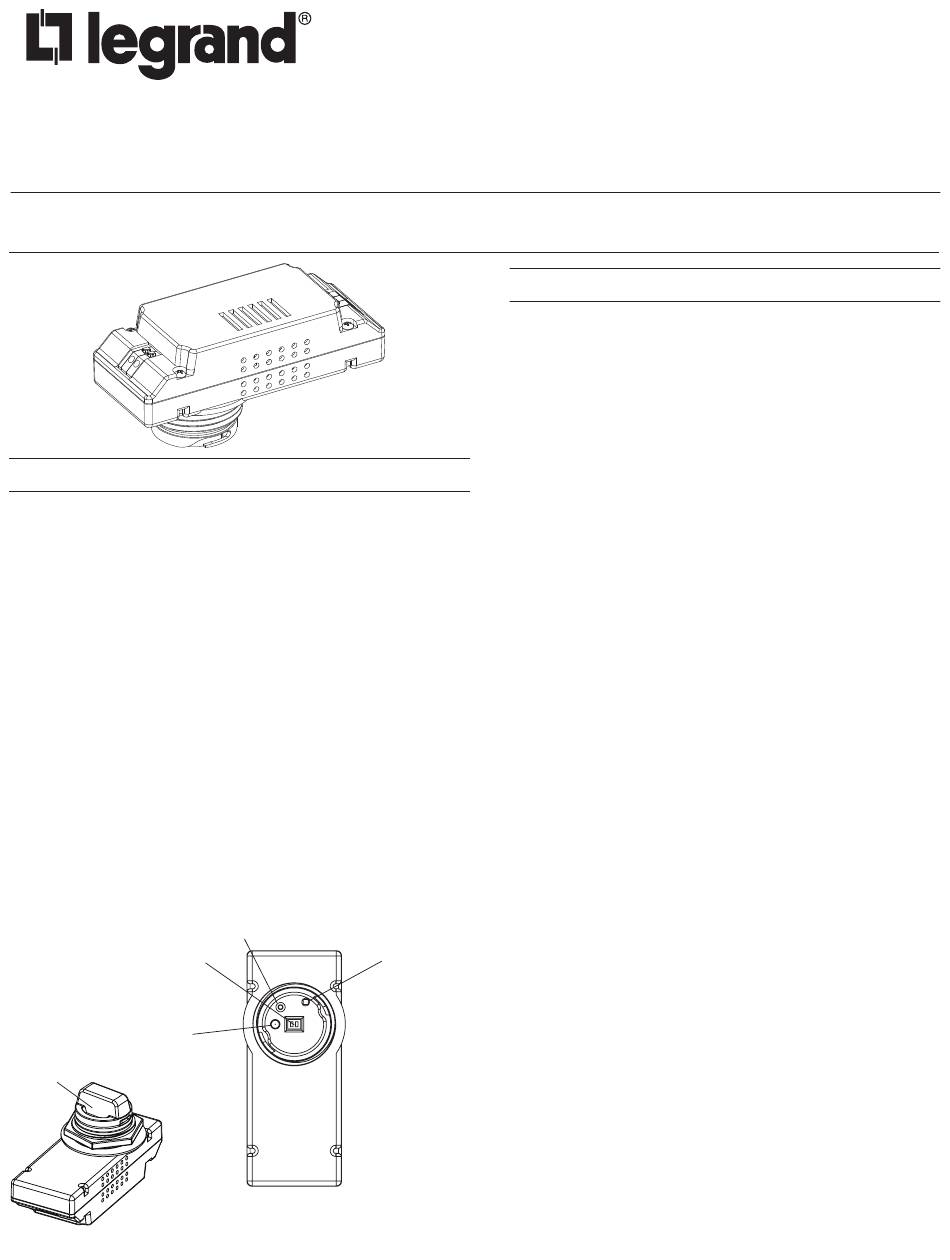

PIR Sensor
Motion Indicator
Blue LED
Sensor Protection Cap
NOTE: Remove Cap before use
Wattstopper
Low Voltage PIR Continuous Dimming Fixture Integrated Sensor with
Bluetooth low energy technology
Basse Tension, Gradation Continue, Luminaire avec détecteur IRP intégré
avec technologie Bluetooth basse consommation
Bajo Voltaje, Atenuación Continua, Sensor PIR para fixturas con tecnología
Bluetooth de bajo consumo
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Reset Button
Light Sensor
®
SPECIFICATIONS
Voltage ....................................................................... 12
Current Consumption .......................................... 15 mA maximum
Wiring Terminals
Primary Voltage .......................+VDC, Com, Ctrl, 16–18AWG
Control Output ........................................... 100 mA maximum
Dimming Voltage ...Dim + (purple), Dim – (pink), 18–20 AWG
Use Solid or Tinned Stranded Copper Conductor
Operating Temperature ...........-40°F (-40°C) to 167°F (75°C)
Tightening Nut Torque ................................................ 25
Dimensions
Collar ...............................................1.30" diameter (33.0mm)
Collar height ...................................................0.64" (16.3mm)
Body ..........3.72" x 1.6" x 1.66" (94.5mm x 41mm x 42.2mm)
Weight ........................................................................ 2.1 oz (59 g)
Coverage
FSP-L2 Lens @ 8' height ...........................up to 44' diameter
FSP-L3 Lens @ 20' height .........................up to 40' diameter
FSP-L7 Lens @ 40' height .......................up to 100' diameter
Adjustments and Features
High Mode ...................................................................0
Low Mode .....................................................0
Time Delay ................................. 30 seconds, 1 min – 30 min
Cut Off ..........................Disabled, 1 min
Sensitivity .............................On-Fix, Off-Fix, Low, Med, High
Hold Off .....................................Auto, Disabled, 1 fc
Ramp Up .........................................Disabled, 1 sec
Fade Down ......................................Disabled, 1 sec
Photocell Setpoint for On/Off ................... Disabled, 1
Continuous Dimming ................................ Disabled, 0
Factory Defaults
High Mode .......................................................................10 V
Low Mode .........................................................................1 V
Time Delay .................................................................... 5 min
Cut Off .............................................................................. 1 hr
Sensitivity .......................................................................High
Hold Off ................................................................... Disabled
Ramp Up .................................................................. Disabled
Fade Down ............................................................... Disabled
Photocell Setpoint for On/Off ................................... Disabled
Continuous Dimming ................................................ Disabled
OPEN DEVICE for installation in a Listed Enclosure per Installation
Instructions.
–
32 VDC
–
30 in-lbs
–
10 V
–
9 V, Disabled
– –
59 min ,1 hr 5 hr
–
250 fc
–
60 sec
–
60 sec
–
250 fc
–
250 fc
