LEGRAND Wattstopper FSP-321B Installation Instructions

No: xxxxx – 03/17 rev. 1
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: FSP-321B, FSP-321B-S, FSP-321B-D
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
Voltage ......................................100-347VAC (single phase)
Load Ratings
Wiring
Operating Temperature .......... -40°F (-40°C) to 167°F (75°C)
Tightening Skirt/Nut Torque .................................25-30 in-lbs
Dimensions
Weight 2.8 oz (80 g)
Enclosure ................................................. IP66 (NEMA STD)
Coverage
The FSP-321B is an IP66 rated motion sensor that dims lighting from high to low based
on movement.
Three configurations are available. The FSP-321B mounts inside the fixture and the PIR lens
connects to the FSP-321B through a 1.30" diameter hole in the bottom of the fixture. The
FSP-321B-S mounts to a fixture/enclosure with a 1/2" knock out, via a nipple on the back.
The FSP-321B-D has a drop mount nipple, for mounting on to a pole, or to a fixture.
The sensor uses passive infrared (PIR) sensing technology that reacts to changes in
infrared energy (moving body heat) within the coverage area. Once the sensor stops
detecting movement and the time delay elapses, lights will go from high to low mode
and eventually to an OFF position if it is desired. Sensors must directly "see" motion of a
person or moving object to detect them, so careful consideration must be given to sensor
luminaire placement and lens selection. Avoid placing the sensor where obstructions may
block the sensor's line of sight.
The FSP-321B operates at 100-347V Single Phase, as well as 208/230/480VAC phase-to-phase. No power pack is required. It is
designed to be installed in indoor and outdoor environments.
NOTE: When the FSP-321B is powered up the first time, it the will use factory default parameters to operate. If adjustments are
needed, the FSIR-100 configuration tool must be used.
Several lenses are available for use with the FSP-321B. Lenses give coverage at mounting heights between 8' - 40' for applications
such as, offices, warehouses and outdoor use. Density and range of the coverage is determined by the type of lens and mounting
height. Lens modules are IP-66 rated when combined with an FSP-321B sensor mounted to an outdoor rated fixture. See the FSP-Lx
Coverage Guide for more information.

SPECIFICATIONS

............................. 208/230/480VAC phase-to-phase
@230-240V .................... 0-300W Ballast or LED Driver
@ 120V ........0-800W Tungsten, Ballasts or LED Driver
@ 277V ........................ 0-1200W Ballast or LED Driver
@347/480V .................. 0-1200W Ballast or LED Driver
Motor @ 120V/277V............................................1/6 HP
Length .......36" (91.44cm), 30" (76.2cm) from nipple
Line Voltage .................................... Line, Neutral, Load
Low Voltage ............Dim + (violet), Dim - (gray) 18AWG
Collar ...................................... 1.30" diameter (33.0mm)
Collar height .......................................... 0.64" (16.3mm)
Body .....5.7"L x 2.3"W x 3.5"H (145mm x 60mm x 90mm)
FSP-L2 Lens @ 8' height .................. up to 44' diameter
FSP-L3 Lens @ 20' height ................ up to 40' diameter
FSP-L7 Lens @ 40' height .............. up to 100' diameter
DESCRIPTION AND OPERATION
Wattstopper
Single/Dual Phase (Universal), High/Low/Off,
PIR Fixture Integrated Outdoor Sensor In IP66 Enclosure
Monophasé/Biphasé (Universel), Haut/Bas/Éteint,
Luminaire avec capteur IRP extérieur intégré dans un boitier IP66
Fase simple/doble (universal), Alto/Bajo/Apagado,
Sensor exterior integrado del aplique PIR en gabinete IP66
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Adjustments and Features
Factory Defaults
LENS OPTIONS
®
High Mode .......................................................0 V -10 V
Low Mode .............................................. 0 V - 9.8 V, Off
Time Delay ......................... 30 seconds, 1 min - 30 min
Cut Off ..................... Disable, 1 min - 59 min ,1 hr - 5 hr
Sensitivity .....................On-Fix, Off-Fix, Low, Med, Max
Hold Off Setpoint .....................Auto, None, 1 fc - 250 fc
Ramp Up ................................... Disable, 1 sec - 60 sec
Fade Down ................................ Disable, 1 sec - 60 sec
Photocell Setpoint for On/Off ............................1-250 fc
High Mode .............................................................. 10 V
Low Mode ................................................................ 1 V
Time Delay ............................................................5 min
Cut Off ..................................................................... 1 hr
Sensitivity ...............................................................Max
Hold Off Setpoint ...............................................Disable
Ramp Up ............................................................Disable
Fade Down .........................................................Disable
Photocell Setpoint for On/Off .............................Disable

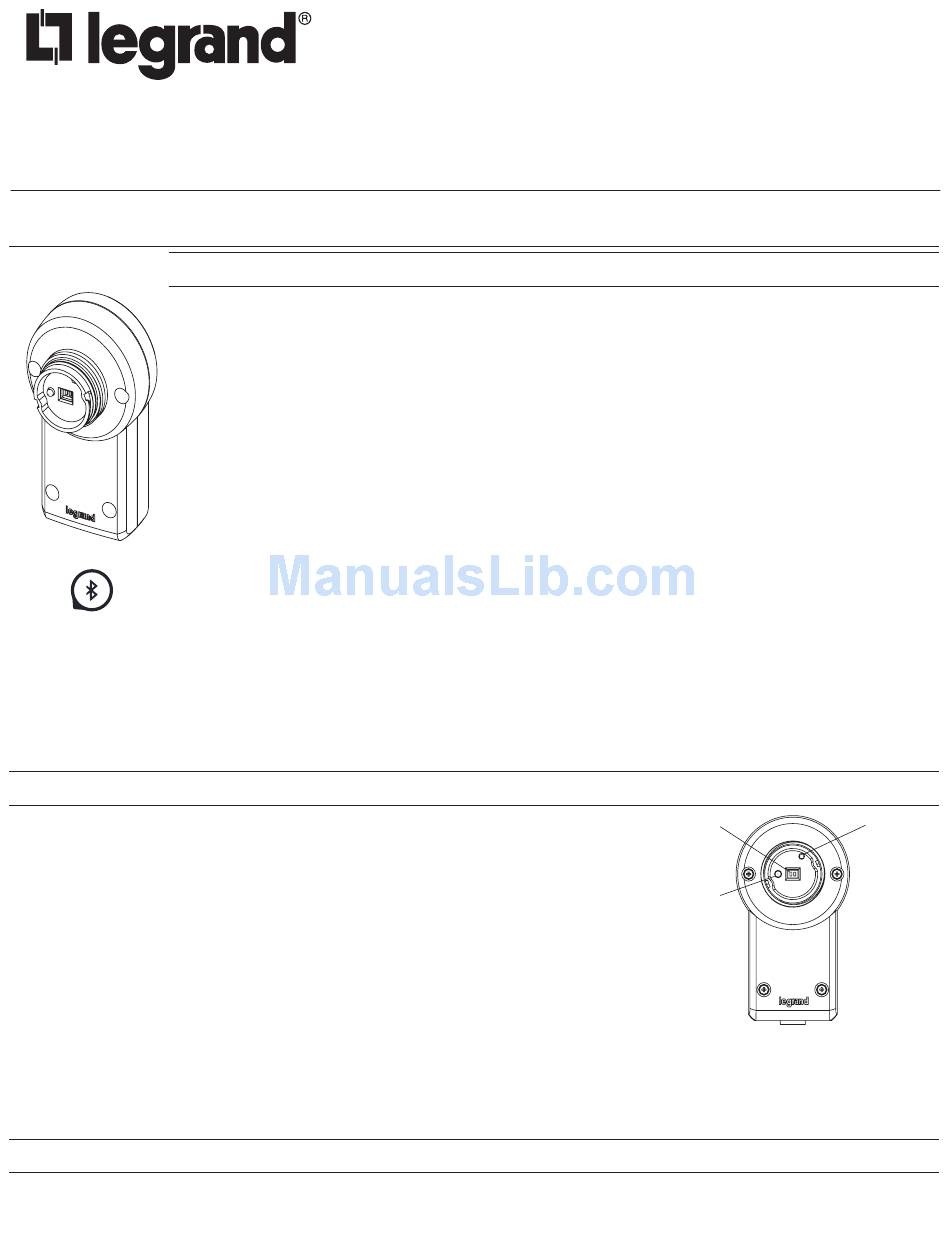

PIR Sensor
Motion Indicator
Blue LED
Light Sensor
