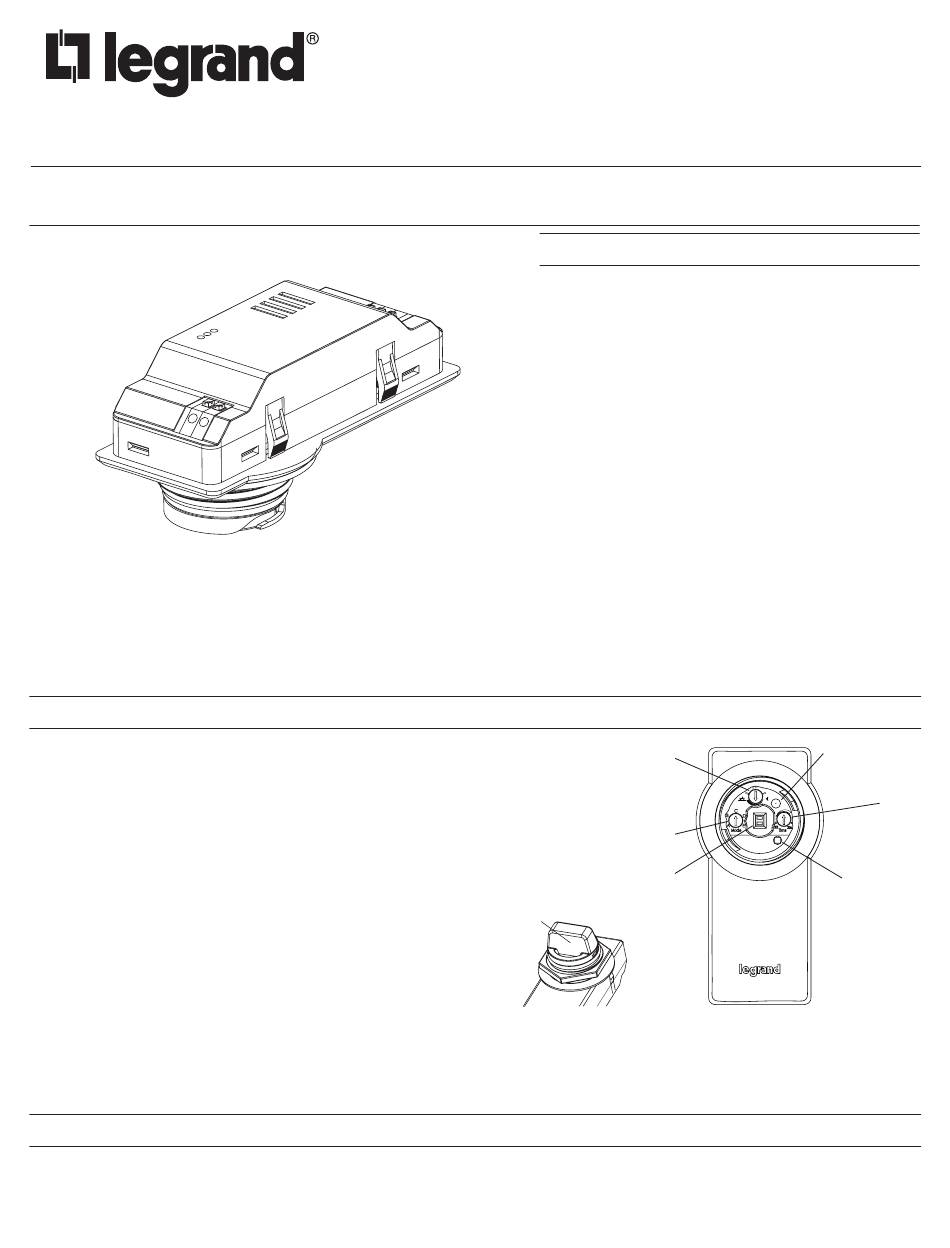

LEGRAND Wattstopper FSP-212D Manual

No: 27547 – 10/18 rev. 3
Catalog Number • Numéro de Catalogue • Número de Catálogo: FSP-212D
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
The FSP-212D is a motion sensor that dims lighting from high to
low based on movement. This slim, low-profile sensor is designed
for installation inside the bottom of a light fixture with a 0-10V output
dimmable ballast or LED driver control.
The sensors use passive infrared (PIR) sensing technology that reacts to
changes in infrared energy (moving body heat) within the coverage area.
Once the sensor stops detecting movement and the time delay elapses
lights will go from high to low mode and eventually to an OFF position if
it is desired. Sensors must directly "see" motion of a person or moving
object to detect them, so careful consideration must be given to sensor
luminaire placement and lens selection. Avoid placing the sensor where
obstructions may block the sensor's line of sight.
The FSP-212D has a photocell to read the light level and can
continuously raise or lower the dimming level of the lighting loads, based
on the ambient light and the desired light level setting.
The FSP-212D operates at 120V/230V-240V Single Phase/277V. It is
designed to be installed in indoor and outdoor environments, and provides
easy to use selectable modes with several adjustable parameters.
The FSP-212D offers four different control modes of operation, (plus service and test modes) that can be selected using a rotary pot.
Once powered up, each mode has a factory default set of parameters. Additionally, sensor adjustment is available for time delay and
high/low dim levels via rotary pots.
Several lenses are available for use with the FSP-212D. Lenses give coverage at mounting heights between 8' - 40' for applications
such as, offices, warehouses and outdoor use. Density and range of the coverage is determined by the type of lens and mounting
height. A lens with shroud option is also available. The shroud blocks light coming from the fixture, to prevent interference with the
photocell function of the sensor. Lens modules are IP66 rated when combined with an FSP-212D sensor mounted to an outdoor rated
fixture. See the FSP-Lx Coverage Guide for more information.
Wattstopper
Selectable Mode Continuous Dimming Line Voltage PIR Fixture Integrated Sensor
Détecteur pour intégration au luminaire à gradation continuelle er mode
sélectionable de tension de ligne
Modo de voltaje de línea SSensor PIR con atenuación continua para luminarias
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
DESCRIPTION AND OPERATION
LENS OPTIONS
®
SPECIFICATIONS
Voltage .................................................. 120V/277V, 50/60Hz
................................. 230–240V, 50/60Hz, Single Phase
Load Ratings
@ 230-240V ....................0–300W Ballast or LED Driver
@ 120V ........ 0–800W Tungsten, Ballasts or LED Driver
@ 277V .........................0–1200W Ballast or LED Driver
Motor @ 120V/277V............................................. 1/6 HP
Class 1 Wiring ........................ 18AWG, Length 36" (91.44cm)
Line Voltage ......................................Line, Neutral, Load
Low Voltage (Class 1) ...........Dim + (violet), Dim - (gray)
Operating Temperature ........... -40°F (-40°C) to 158°F (70°C)
Tightening Nut Torque .......................................... 25-30 in-lbs
Dimensions
Collar ....................................... 1.87" diameter (47.5mm)
Collar height ........................................... 0.64" (16.3mm)
Body .. 2.5"L x 1.5"W x .83"H (63.3mm x 38mm x 21.1mm)
Weight .............................................................5.29 oz (150 g)
Enclosure ...................................................IP66 (NEMA STD)
Coverage
FSP-L2 Lens @ 8' height ................... up to 44' diameter
FSP-L3 Lens @ 20' height ................. up to 40' diameter
FSP-L7 Lens @ 40' height ............... up to 100' diameter
Dimming/
Hold Off
Setpoint/
High Trim
Adjust
Mode
Selection
PIR Sensor
Sensor Protection Cap
NOTE: Remove Cap before use
Motion Indicator
Red LED
10V 1V Time
Delay
Light Sensor
