LEGRAND Wattstopper FSP-321 Installation Instructions Manual

No: 28051 – 12/18 rev. 2
Catalog Number • Numéro de Catalogue • Número de Catálogo: FSP-321
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
DESCRIPTION AND OPERATION

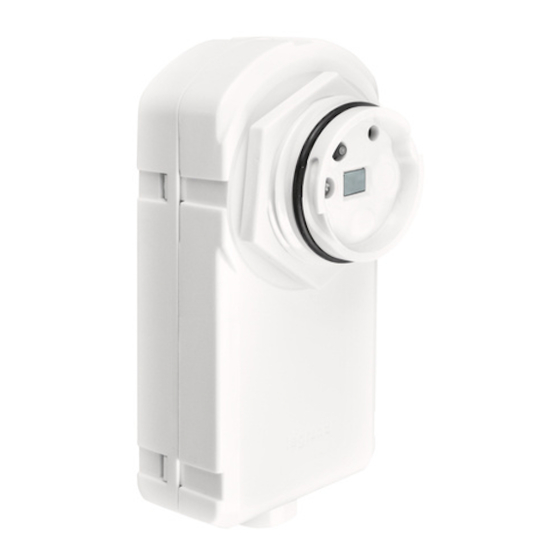

The FSP-321 is a motion sensor that dims lighting from high to low
based on movement. This slim, low-profile sensor is designed for
installation inside the bottom of a light fixture body. The PIR lens
module connects to the FSP-321 through a 1.30" diameter hole in
the bottom of the fixture.
The sensors use passive infrared (PIR) sensing technology that
reacts to changes in infrared energy (moving body heat) within the
coverage area. Once the sensor stops detecting movement and
the time delay elapses lights will go from high to low mode and
eventually to an OFF position if it is desired. Sensors must directly
"see" motion of a person or moving object to detect them, so
careful consideration must be given to sensor luminaire placement
and lens selection. Avoid placing the sensor where obstructions
may block the sensor's line of sight.
The FSP-321 operates at 100-347V Single Phase, as well as
208/230/480VAC phase-to-phase. No power pack is required. It is
designed to be installed in both indoor and outdoor environments.
NOTE: When the FSP-321 is powered up the first time, it will use
factory default parameters to operate. If adjustments are
needed, the Sensor Configuration mobile app must be
used.

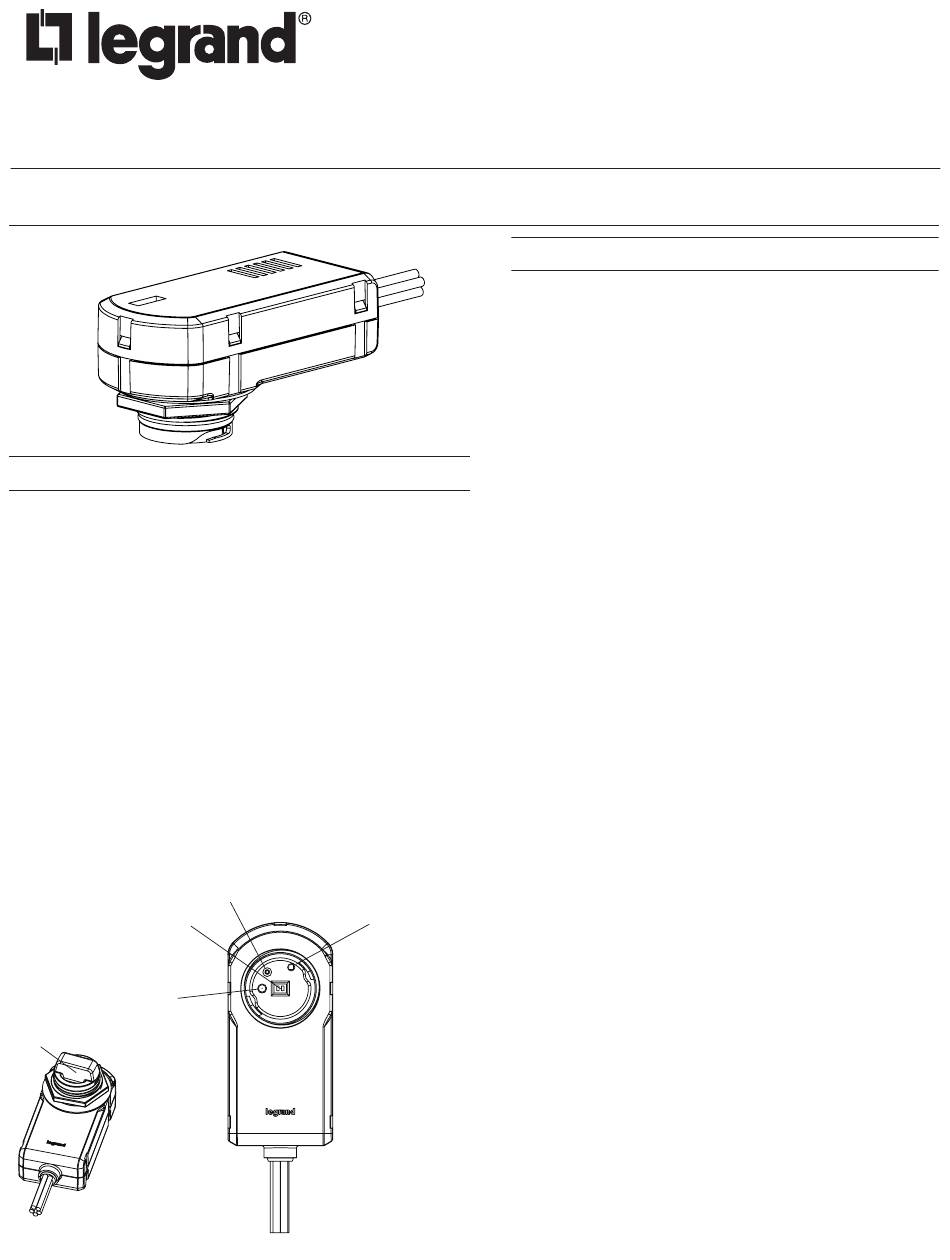

PIR Sensor
Motion Indicator
Blue LED
Sensor Protection Cap
NOTE: Remove Cap before use
Wattstopper
Universal Voltage PIR Fixture Integrated Sensor with Bluetooth low energy technology
Tension universelle, Luminaire avec détecteur IRP intégré avec technologie Bluetooth
basse consommation
Voltaje universal, Sensor PIR para fixturas con tecnología Bluetooth de bajo
consumo
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Reset Button
Light Sensor
®

SPECIFICATIONS

Voltage .............................................. 100–347VAC (single phase)
.......................................208/230/480VAC phase-to-phase
Load Ratings
@ 230–240V ....................... 0–300W Ballast or LED Driver
@ 120V ............. 0–800W Tungsten, Ballast, or LED Driver
@ 277V ............................. 0–1200W Ballast or LED Driver
@347/480V ........................0-1200W Ballast or LED Driver
Motor @ 120V/277V ................................................ 1/6 HP
Class 1 Wiring
Length ...........................................................36" (91.44cm)
Line Voltage ..........................................Line, Neutral, Load
Low Voltage (class 1) ..... Dim + (violet), Dim - (gray), 18AWG
Operating Temperature ....................-40°F (-40°C) to 167°F (75°C)
Tightening Nut Torque ..................................................25–30 in-lbs
Dimensions
Collar ........................................... 1.30" diameter (33.0mm)
Collar height ................................................0.64" (16.3mm)
Body ............1.7" x 3.9" x 1.75" (43mm x 98mm x 44.5mm)
Weight ......................................................................5.5 oz (155 g)
Coverage
FSP-L2 Lens @ 8' height ....................... up to 44' diameter
FSP-L3 Lens @ 20' height ..................... up to 40' diameter
FSP-L7 Lens @ 40' height ................... up to 100' diameter
Adjustments and Features
High Mode ........................................................... 0 V –10 V
Low Mode ...................................................0 V – 9.8 V, Off
Time Delay .............................. 30 seconds, 1 min – 30 min
Cut Off ......................... Disable, 1 min – 59 min ,1 hr – 5 hr
Sensitivity .......................... On-Fix, Off-Fix, Low, Med, Max
Hold Off Setpoint ......................... Auto, None, 1 fc – 250 fc
Ramp Up ........................................Disable, 1 sec – 60 sec
Fade Down .....................................Disable, 1 sec – 60 sec
Photocell Setpoint for On/Off ................................ 1–250 fc
Factory Defaults
High Mode ....................................................................10 V
Low Mode ......................................................................1 V
Time Delay ................................................................. 5 min
Cut Off ........................................................................... 1 hr
Sensitivity .................................................................... Max
Hold Off Setpoint .................................................... Disable
Ramp Up ................................................................. Disable
Fade Down .............................................................. Disable
Photocell Setpoint for On/Off .................................. Disable
OPEN DEVICE for installation in the Listed Enclosure per
Installation Instructions.
