LEGRAND Wattstopper FSP-211B Installation Instructions Manual

No: 22834 – 05/17 rev. 4
Catalog Numbers • Les Numéros de Catalogue • Números de Catálogo: FSP-211B, FSP-211B-S, FSP-211B-D
Country of Origin: Made in China • Pays d'origine: Fabriqué en Chine • País de origen: Hecho en China
The FSP-211B is an IP66 rated motion sensor that dims lighting from
high to low based on movement.
Three configurations are available. The FSP-211B mounts inside the
fixture and the PIR lens connects to the FSP-211B through a 1.30"
diameter hole in the bottom of the fixture. The FSP-211B-S mounts to
a fixture/enclosure with a 1/2" knock out, via a nipple on the back. The
FSP-211B-D has a drop mount nipple, for mounting on to a pole, or to
a fixture.
The sensor uses passive infrared (PIR) sensing technology that reacts to
changes in infrared energy (moving body heat) within the coverage area.
Once the sensor stops detecting movement and the time delay elapses,
lights will go from high to low mode and eventually to an OFF position if
it is desired. Sensors must directly "see" motion of a person or moving
object to detect them, so careful consideration must be given to sensor
luminaire placement and lens selection. Avoid placing the sensor where obstructions may block the sensor's line of sight.
The FSP-211B operates single phase at 120V/230V/240V/277V. No power pack is required. It is designed to be installed in indoor and
outdoor environments.
NOTE: When the FSP-211B is powered up the first time, it will use factory default parameters to operate. If adjustments are needed,
the FSIR-100 configuration tool must be used.
Several lenses are available for use with the FSP-211B. Lenses give coverage at mounting heights between 8' - 40' for applications
such as, offices, warehouses and outdoor use. Density and range of the coverage is determined by the type of lens and mounting
height. Lens modules are IP-66 rated when combined with an FSP-211B sensor mounted to an outdoor rated fixture. See the FSP-Lx
Coverage Guide for more information.

SPECIFICATIONS

Voltage .............................................120V/277V, 50/60Hz
.............................230-240V, 50/60Hz, Single Phase
Load Ratings
@230-240V ............. 0 – 300W Ballast or LED Driver
@ 120V ....0-800W Tungsten, Ballasts or LED Driver
@ 277V ................. 0 – 1200W Ballast or LED Driver
Motor @ 120V/277V........................................1/6 HP
Wiring .................................................................... 18AWG
Length .......36" (91.44cm), 30" (76.2cm) from nipple
Line Voltage ................................ Line, Neutral, Load
Low Voltage ..................... Dim + (violet), Dim - (gray)
Operating Temperature ......-40°F (-40°C) to 167°F (75°C)
Tightening Skirt/Nut Torque .......................... 25 – 30 in-lbs
Dimensions
Collar ..................................1.30" diameter (33.0mm)
Collar height ......................................0.64" (16.3mm)
Body .. 5.7"L x 2.3"W x 3.5"H (145mm x 60mm x 90mm)
Weight ........................................................... 2.8 oz (80 g)
Enclosure ............................................. IP66 (NEMA STD)
Coverage
FSP-L2 Lens @ 8' height ..............up to 44' diameter
FSP-L3 Lens @ 20' height ............up to 40' diameter
FSP-L7 Lens @ 40' height ..........up to 100' diameter
DESCRIPTION AND OPERATION
Wattstopper
High/Low/Off, PIR Fixture Integrated Outdoor Sensor In IP66 Enclosure
Haut/Bas/Éteint,
Luminaire avec capteur IRP extérieur intégré dans un boitier IP66
Alto/Bajo/Apagado, Sensor exterior integrado del aplique PIR en gabinete IP66
Installation Instructions • Instructions d'Installation • Instrucciones de Instalación
Adjustments and Features
Factory Defaults
Sensor Protection Cap
NOTE: Remove Cap before use
LENS OPTIONS
®
High Mode ..................................................0 V –10 V
Low Mode ................................. . . . . 0 V – 9.8 V, Off
Time Delay .................... 30 seconds, 1 min – 30 min
Cut Off ............... Disable, 1 min – 59 min ,1 hr – 5 hr
Sensitivity .................On-Fix, Off-Fix, Low, Med, Max
Hold Off Setpoint ................Auto, None, 1 fc – 250 fc
Ramp Up .............................. Disable, 1 sec – 60 sec
Fade Down ........................... Disable, 1 sec – 60 sec
Photocell Setpoint for On/Off .....................1 – 250 fc
High Mode .......................................................... 10 V
Low Mode ................................................... . . . . 1 V
Time Delay ........................................................5 min
Cut Off ................................................................. 1 hr
Sensitivity ...........................................................Max
Hold Off Setpoint ...........................................Disable
Ramp Up ........................................................Disable
Fade Down .....................................................Disable
Photocell Setpoint for On/Off .........................Disable

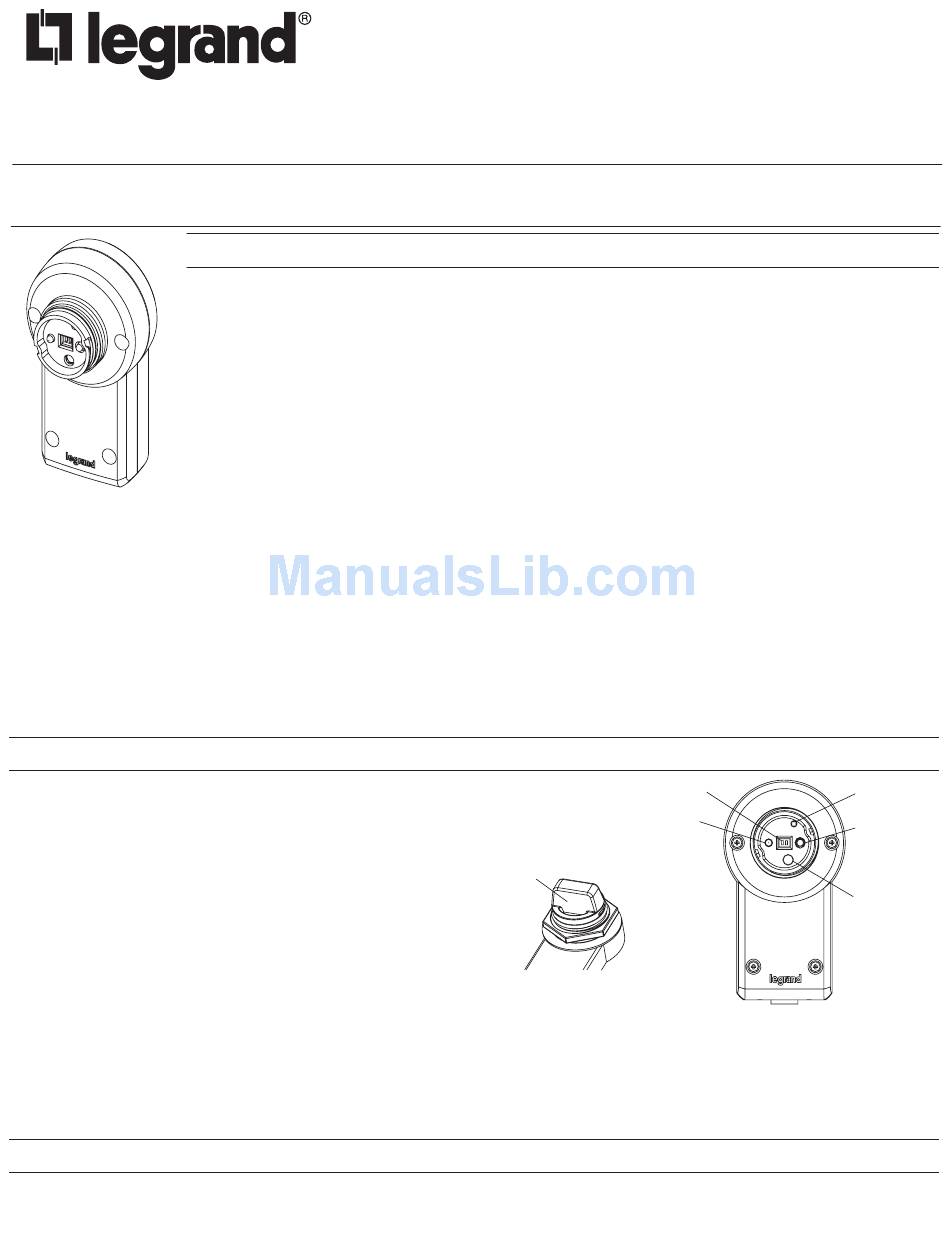

PIR Sensor
Motion Indicator
Red LED
Light Sensor
IR Transmitter
IR Receiver
