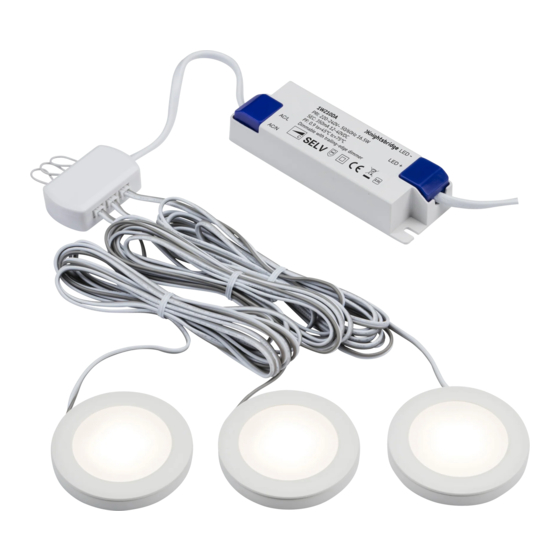

- Page 1 INSTALLATION & MAINTENANCE MANUAL UNDKIT3WWW / UNDKIT3WCW UNDKIT3BCWW / UNDKIT3BCCW...
- Page 2 These instructions should be used to aid the installation of the following products: UNDKIT3WWW / UNDKIT3WCW / UNDKIT3BCWW / UNDKIT3BCCW SAFETY • This product must be installed in accordance with the latest edition of the IEE Wiring Regulations (BS7671) and current Building Regulations.
- Page 3 uminaire is being used in conjunction with an external PIR or sensor, please of the sensors that they are compatible with LED luminaires tallation INSTALLATION de power to the required point of installation Note - If this luminaire is being used in conjunction with an external PIR or sensor, please suitable hole in the mounting surface as per the cut-out details (see Fig.
- Page 4 • Connect the lamp to the 6-way hub (see Fig. 3) Fig. 2 Note – Before adding or removing lamps from 6-way hub (see Fig. 3) the 6-way hub, please ensure that the power to the kit is switched off. Please note that if more lamps are needed, up to a maximum of 6, a connector should be removed from the hub and replaced by a lamp.
- Page 5 • Connect the pre-wired 6-way hub to the secondary side of the driver ensuring that correct polarity is observed: Positive – (red); Negative – (black) • Connect the driver to the mains supply ensuring that correct polarity is observed: L – Live (brown), N –...
- Page 6 Fig. 5 Note – Before adding or removing lamps from the 6-way hub, please ensure the power to the kit is switched off. Please note that if more lamps are needed, up to a maximum of 6, a connector should be removed from the hub and replaced by a lamp. Connectors must be inserted in any unused hub terminals for the kit to work.
- Page 7 ADDITIONAL ACCESSORIES PART CODE DESCRIPTION The kit can be expanded by adding UNDK3WWW 3000K White extra lamps, to a maximum of 6 per driver. UNDK3WCW 4000K White UNDK3BCWW 3000K Brushed Chrome UNDK3BCCW 4000K Brushed Chrome WARNING This luminaire must be disconnected from the circuit if subjected to any high voltage or insulation resistance testing.
- Page 8 ML Accessories does not accept responsibility for any installation costs associated with the replacement product. Your statutory rights are not affected.
