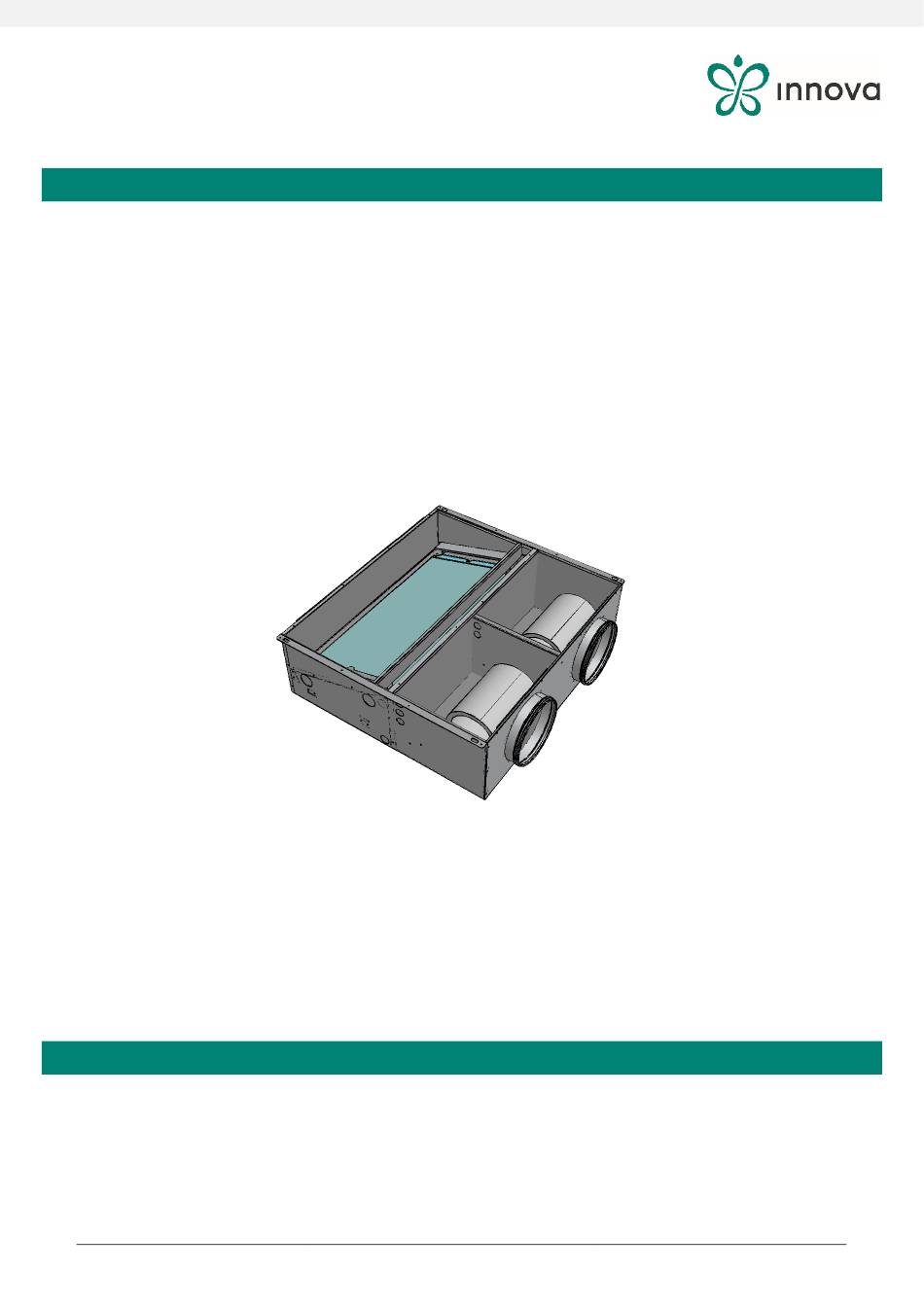

INSTALLATION, USE AND MAINTENANCE MANUAL

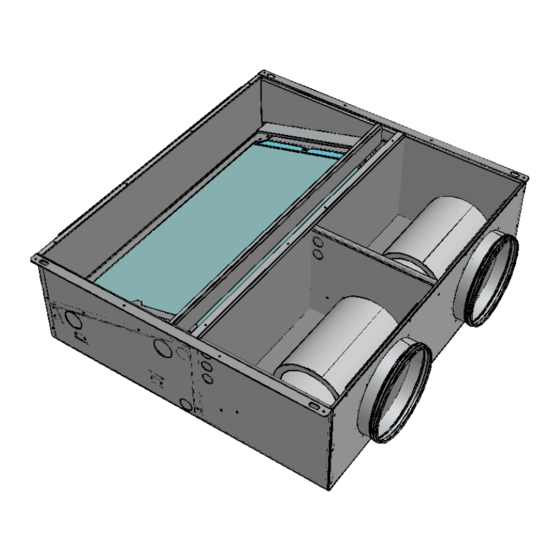

DUCTO MULTI
The integrated multi-zone ductable fancoil
DUCTO MULTI - MULTI-ZONE DUCTABLE FANCOIL
Innova Srl
Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com
Share capital int. vers. € 150,000. - Tax code / VAT number 01827470228 - REA registration nr. 180610 - Reg. Companies (TN) 10656
Mechanographic number TN025148
www.innovaenergie.com
Page 1
N420740A
_manuale-SLC+ 2022
multi_EN_Rev.01.docx
Advertisement
Table of Contents
Related Manuals for Innova DUCTO MULTI
Summary of Contents for Innova DUCTO MULTI
- Page 1 INSTALLATION, USE AND MAINTENANCE MANUAL DUCTO MULTI The integrated multi-zone ductable fancoil DUCTO MULTI - MULTI-ZONE DUCTABLE FANCOIL Innova Srl Via I Maggio, 8 - 38089 Storo (TN) - Tel. +39 0465 670104 - Fax +39 0465 674965 - info@innovaenergie.com Share capital int.
-
Page 2: Table Of Contents
AERAULIC CONNECTIONS ..............................12 AERAULIC CONNECTIONS WITH ACCESSORIES ........................13 HYDRAULIC CONNECTIONS ................................14 GENERALITY ................................... 14 POSITIONING AND CONNECTION PROCEDURES ........................15 3-WAY VALVE CONNECTION ..............................16 ELECTRICAL CONNECTIONS ................................17 GENERALITY ................................... 17 N420740A _manuale-SLC+ 2022 Page 2 multi_EN_Rev.01.docx Innova Srl... - Page 3 PROBLEMS WITHOUT ERROR INDICATION ON THE DISPLAY ....................32 ALARM SIGNAL ..................................32 TABLE OF ALARMS SIGNALED BY DISPLAY - VERSIONS I -...................... 33 NOTES AND INFORMATION MAINTENANCE ........................... 34 NOTE ....................................... 34 N420740A _manuale-SLC+ 2022 Page 3 multi_EN_Rev.01.docx Innova Srl...
-
Page 4: Generality
The unit must be powered with electric cables with a section suitable for the power of the unit. The voltage and frequency values • must correspond to those indicated for the respective machines; all the machines must be earthed as per the regulations in force in the various countries. N420740A _manuale-SLC+ 2022 Page 4 multi_EN_Rev.01.docx Innova Srl... -
Page 5: 1.3 Symbology
In the event of water leaks inside the unit, set the main system switch to "Off", close the taps of the water and contact the technical service It is recommended to use a dedicated power supply circuit; Never use a common power supply with other appliances. N420740A _manuale-SLC+ 2022 Page 5 multi_EN_Rev.01.docx Innova Srl... -
Page 6: Compliance
The CE marking (present on each machine) certifies compliance with the following Community standards: Low Voltage Directive 2014/35 / EC • Electromagnetic Compatibility Directive 2014/30 / EC • RoHS2 2011/65 / EU • WEEE 2012/19 / EC • N420740A _manuale-SLC+ 2022 Page 6 multi_EN_Rev.01.docx Innova Srl... -
Page 7: Range
Side condensate drain connections • Side inlet and outlet water connections • Labels / stickers (safety pictograms, channel identification, CE marking ...) already positioned on the unit. • Installation, use and maintenance manual • N420740A _manuale-SLC+ 2022 Page 7 multi_EN_Rev.01.docx Innova Srl... -
Page 8: Start-Up Requirements
The main components of the unit are described below in order to understand the layout and characteristics of the machine. 1 Fan 2 Hydronic battery 3 Filter 4 Electrical connection box 5 Hydraulic connections 6 Condensate drain N420740A _manuale-SLC+ 2022 Page 8 multi_EN_Rev.01.docx Innova Srl... -
Page 9: Dimensional
1170 1460 3/4 "F 3/4 "F 3/4 "F 3/4 "F IN WATER 3/4 "F 3/4 "F 3/4 "F 3/4 "F OUT WATER Ø 20 Ø 20 Ø 20 Ø 20 EXHAUST H N420740A _manuale-SLC+ 2022 Page 9 multi_EN_Rev.01.docx Innova Srl... -
Page 10: Installation
Ensure sufficient space for carrying out • maintenance activities: the opening of the unit cover (from below) and accessibility to the electrical box and to the hydraulic connections must be guaranteed; N420740A _manuale-SLC+ 2022 Page 10 multi_EN_Rev.01.docx Innova Srl... -
Page 11: 2.3 Condensate Drain Connection
• In horizontal positioning the drain is 18 mm in diameter; Horizontal installation drain N420740A _manuale-SLC+ 2022 Page 11 multi_EN_Rev.01.docx Innova Srl... -
Page 12: Aeraulic Connections
B Base recovery x Height mm 630x143 mm 830x143 mm 1030x143 mm 1317x143 mm We recommend installing at least 500 mm of flexible piping to avoid entrainment of vibrations and annoying noises due to installation N420740A _manuale-SLC+ 2022 Page 12 multi_EN_Rev.01.docx Innova Srl... -
Page 13: Aeraulic Connections With Accessories
Air delivery and return dimensions table with accessories SLC + 1000 1200 D. Return Plenum Number of connections / Diameter mm 2 x 160 mm 3 x 160 mm 4x160 mm 5x160 mm N420740A _manuale-SLC+ 2022 Page 13 multi_EN_Rev.01.docx Innova Srl... -
Page 14: Hydraulic Connections
<1 mg / l Nitrate <70 mg / l Sulphate <70 mg / l Chlorine compounds <300 mg / l Free radical carbon dioxide <10 mg / l Ammonium <20 mg / l N420740A _manuale-SLC+ 2022 Page 14 multi_EN_Rev.01.docx Innova Srl... -
Page 15: Positioning And Connection Procedures
In any case, be careful not to rotate or twist the pipes coming from inside the unit; Rotating the pipes during connection could damage the connections inside the unit and cause water leaks during operation; N420740A _manuale-SLC+ 2022 Page 15 multi_EN_Rev.01.docx Innova Srl... -
Page 16: 3-Way Valve Connection
The groups are supplied as a kit to be assembled and contain all the fittings to facilitate the connection to the installer. 3-way valve group kit Two-way valve assembly kit N420740A _manuale-SLC+ 2022 Page 16 multi_EN_Rev.01.docx Innova Srl... -
Page 17: Electrical Connections
On the side of the unit there are the electrical boxes for the electrical connections of each single output, while inside the box there are the cable clamps and the screws supplied. Electrical connections N420740A _manuale-SLC+ 2022 Page 17 multi_EN_Rev.01.docx Innova Srl... -
Page 18: S Version Unit Wiring Diagrams - (Command 0-10Vdc)
Check power in the previous tables L - N - PE Voltage supplied by the motor Reference voltage signal (I max = 20ma) 0-10v dc signal to the zone motor Reference signal Innova Srl N420740A _manuale-SLC+ 2022 Page 18 multi_EN_Rev.01.docx... -
Page 19: 5.4 Electrical Diagrams Of Unit Version I
5.4 ELECTRICAL DIAGRAMS OF UNIT VERSION I General wiring diagram I versions NB: The connection must be of the "in-out" type and not "star" or "tree". Innova Srl N420740A _manuale-SLC+ 2022 Page 19 multi_EN_Rev.01.docx... - Page 20 Water valve In parallel with the other areas REMOTE DISPLAY Remote control (4 wires) REMOTE ON OFF (ON Remote ON OFF contact present on remote display Contact closed / unit OFF DISPLAY) Innova Srl N420740A _manuale-SLC+ 2022 Page 20 multi_EN_Rev.01.docx...
-
Page 21: Electrical Connections Version -S
Example of a 3-zone system with DUCTO MULTI 800: System with each output corresponding to a zone Connection with 0-10V signals and zones with multi-outputs Example of a 2-zone system with DUCTO MULTI 800: System with two outputs for one zone, and one output for the second zone; Innova Srl... -
Page 22: Electrical Connections Version -I
Example of a 3-zone system with DUCTO MULTI 800: System with each output corresponding to a zone Connection with EEA649 / EEB649 command and zones with multi outputs Example of a 2-zone system with DUCTO MULTI 800: System with two outputs for one zone, and one output for the second zone; Innova Srl... - Page 23 The card allows the operation of the EC Brushless fan through a remote control described above; Some auxiliary functions have been implemented in the board such as the connection of the regulators and the management of a battery / post valve; Innova Srl N420740A _manuale-SLC+ 2022 Page 23...
- Page 24 / off remotely such as a switch or a timer The logic provides: Contact closed: Unit OFF Contact open: Unit ON Innova Srl N420740A _manuale-SLC+ 2022 Page 24 multi_EN_Rev.01.docx...
- Page 25 Chiller - called cold generator Closed contact, generator start Boiler - called hot generator Closed contact, generator start Screw terminals Recommended cable = 2x0.5mm / 2 x 0.75mm Generator control contact Innova Srl N420740A _manuale-SLC+ 2022 Page 25 multi_EN_Rev.01.docx...
- Page 26 There are two terminals A and B in order to comfortably carry out the in and out connection; The communication protocol is: RTU 9600 N 8; Screw terminals Recommended cable = 2x0.5 mm shielded Modbus RTU control panel connection Innova Srl N420740A _manuale-SLC+ 2022 Page 26 multi_EN_Rev.01.docx...
-
Page 27: Commissioning And Method Of Use
The keys present in the main screen are speed: Button for summer / winter selection shown below: Quiet / nominal / maximum Button for nominal speed ALARM signal and sensor operation Main screen keys display Innova Srl N420740A _manuale-SLC+ 2022 Page 27 multi_EN_Rev.01.docx... -
Page 28: Turning The Unit On And Off
The operation must be carried out to activate the correct logics: In winter the antifreeze function and in summer the bypass function; Logic symbols: SUN - WINTER / SNOWFLAKE - SUMMER Season Change Innova Srl N420740A _manuale-SLC+ 2022 Page 28 multi_EN_Rev.01.docx... -
Page 29: Key Lock
With the panel off, keep the + key pressed for 5 seconds until the message 01 appears. With the - key, bring the value to 00 and wait 20 seconds to verify the correct setting. Brightness adjustment Innova Srl N420740A _manuale-SLC+ 2022 Page 29... -
Page 30: Maintenance
• If the conditions of the filters allow it, they can be cleaned using a vacuum cleaner or a low pressure compressor. View for filter extraction Innova Srl N420740A _manuale-SLC+ 2022 Page 30 multi_EN_Rev.01.docx... -
Page 31: General Cleaning Of The Unit
Attention! There are small metal clips on the blades for balancing the blades, DO NOT remove them. Attention!Avoid blowing high pressure compressed air on the battery; the aluminum fins could be compromised and damaged; Unit views for general cleaning Innova Srl N420740A _manuale-SLC+ 2022 Page 31 multi_EN_Rev.01.docx... -
Page 32: Alarms
The presence of an alarm has two display modes: an error code present on the CNV-CNW command; • a led on the electronic board that shows a flashing sequence with the type of alarm present. • Innova Srl N420740A _manuale-SLC+ 2022 Page 32 multi_EN_Rev.01.docx... -
Page 33: Table Of Alarms Signaled By Display - Versions I
Check that A and B are not 6 flashes - off 3 alarm with remote for at least 300 seconds. reversed seconds display Check the correct insertion of the display connection board on the main board Innova Srl N420740A _manuale-SLC+ 2022 Page 33 multi_EN_Rev.01.docx... -
Page 34: Notes And Information Maintenance
NOTES AND INFORMATION MAINTENANCE NOTE ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ Innova Srl N420740A _manuale-SLC+ 2022 Page 34 multi_EN_Rev.01.docx... - Page 35 ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________ ____________________________________________________________________________________________________________________________________________________________________________________________________- ____________________________________________________________________________________________________________________________________________________________________________________________________ Innova Srl N420740A _manuale-SLC+ 2022 Page 35 multi_EN_Rev.01.docx...
- Page 36 N420740A - 01-2 02 2 The data contained in this manual can be changed by the manufacturer without prior notice. Innova Srl N420740A _manuale-SLC+ 2022 Page 36 multi_EN_Rev.01.docx...
