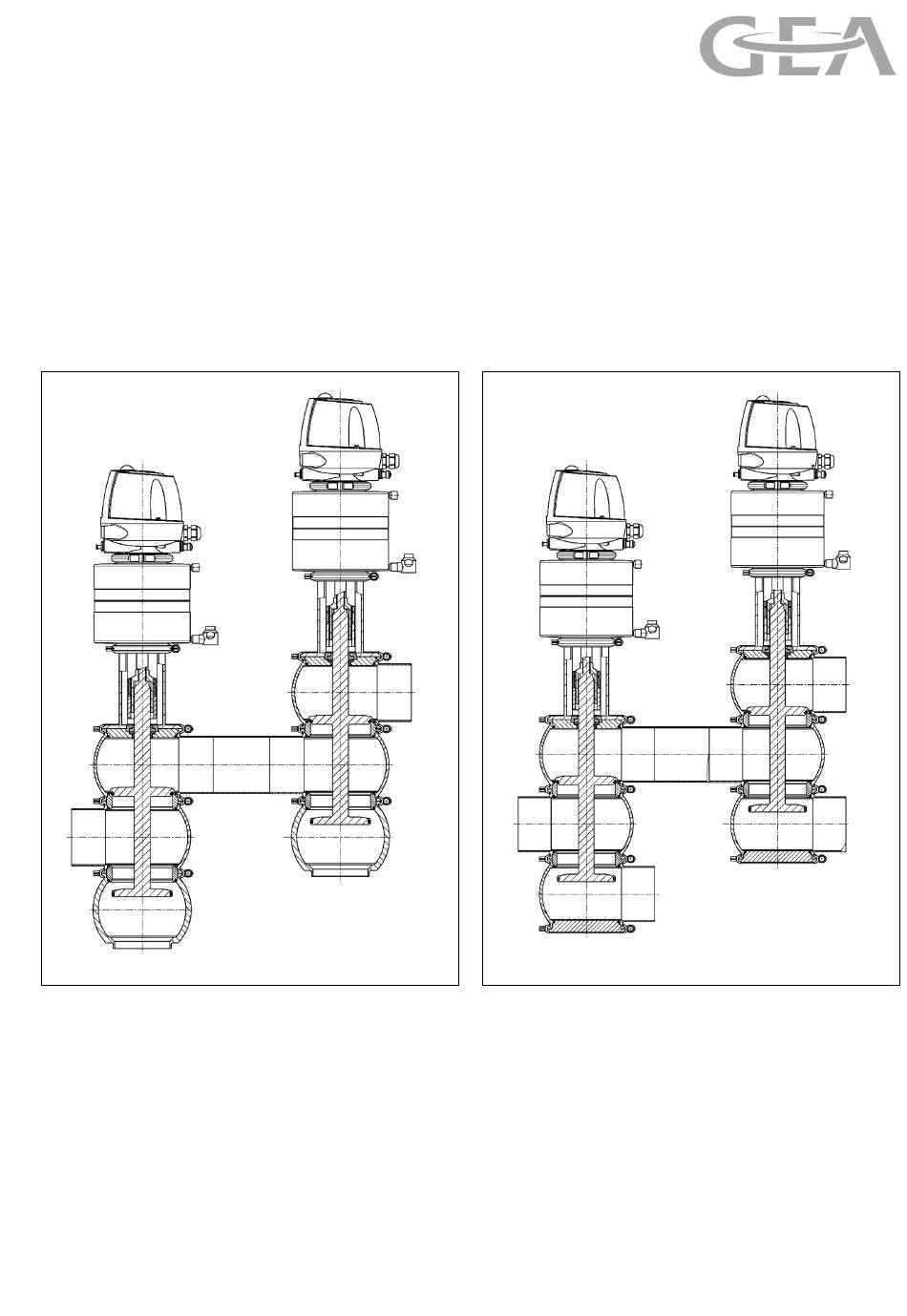

- Page 1 Operating Instructions Flow Diversion Device with Proximity Switch Issue 2014-10 / Revision 15 Part no. 430-455 English...
- Page 2 2014-10 · Flow Diversion Device with Proximity switch...
-
Page 3: Table Of Contents
Contents Important Abbreviations and terms ...... 2 Safety instructions ..........3 Designated use ............ 3 Personnel.............. 3 Modifications, spare parts, accessories ....3 General instructions ..........3 Marking of safety instructions in the operating manual..........3 Further symbols ..........3 Special hazardous spots ........ -
Page 4: Important Abbreviations And Terms
Ethylene p ro p ylene d iene (m o no m er) rubber Unit of measure for power GEA AG group of companies Watt GEA stand s fo r Glo bal Engineering Alliance Inch OD Pipe dimension acc. to British standard Material designation (BS), Outside Diameter Sho rt d esignatio n acc. -
Page 5: Safety Instructions
It is essential that you read and observe the texts belong- sidered contrary to its designated use. GEA Tuchen- ing to these symbols before you continue reading the hagen cannot be held liable for any damage resulting instructions and handling the Flow diversion device. -
Page 6: Special Hazardous Spots
Special hazardous spots DANGER In the event of malfunctions set the Flow diversion device out of operation (disconnect the valve from the power and the air supply) and secure it against reacti- vation. Immediately rectify the fault. Never put your hand into the lantern (2) or into the valve housing (4). -
Page 7: Designated Use
The Tuchenhagen Flow diversion devices consists of two Tuchenhagen non-slamming divert valves type DANGER XKR or XWR welded together to form an assembly. The For transport of the package, only use suitable lifting assembly is used to enable the “Divert Flow”, “Leak gear and slings. -
Page 8: Design And Function
Design and Function Design 1 control module 4 actuator Leak Detect Valve 5 quick air exhaust 6 lantern Divert Valve 7 limit stop 8 sealing disk 9 sealing ring 10.1 valve disk X 1 10.2 valve disk X 2 11 valve housing 12 bearing 13 bearing disk 14 seat ring... -
Page 9: Function
Function „Divert Flow“ position The „Divert Flow“ position is the start position of the valve after assembling in which the divert valve routes the product back to the balance tank during periods of sub-legal pasteurization temperatures. The valve position is detected by a sensors installed in the control module. - Page 10 “Leak Detect Flush Time Delay” Leak Detect Valve position Divert Valve The Flow Diversion Device will move into the “Leak Detect” position once the legal pasteurization tempera- ture is achieved. The time of the clearance is controlled by a Flow Diversion Device Controller which is a sepa- rate device.
-
Page 11: Assembly And Operation
Actuator function The valve is closed in the non-actuated position. Distinguishing feature with control module T.VIS: – Permanent light (1) green: Valve in non-actuated position – Permanent light (1) yellow: Actuated valve position Assembly and Operation Make sure that – the Flow diversion device is installed in the pipe sys- tem free of stress and –... -
Page 12: Pneumatic Connections
Pneumatic Connections Electrical Connections Air requirement DANGER The compressed air required for switching operations of Only allow qualified personnel to make electrical connec tions. Prior to making electrical connections the valve is governed by the type of actuator (identifica- check the maximum permissible operating voltage and tion at the actuator cap). -
Page 13: Hosing Diagram
GEA Tuchenhagen Hosing Diagram Datum/date: 2009-06-26 Flow Diversion Device FDD FDD-P View A with solenoid Central Outlet Supply FDD-N without solenoid Central Air Supply Central Air Supply Actuator Actuator ✗ To ensure o p tim um fit in the air co nnec- to r, the p neum atic ho ses m ust be cut square w ith a ho se cutter. -
Page 14: Commissioning
Commissioning Maintenance • Clean the valve assembly prior to the first production Inspections run. Between the maintenance periods, the each valve of the Functional test Flow diversion devices must be checked for leakage and proper function. • Actuate each valve of the Flow Diversion Device once by applying compressed air. -
Page 15: Maintenance Intervals
Maintenance intervals Disassembly of Flow Diversion Device To ensure the highest operational reliability of the valves, all wearing parts should be replaced at longer intervals. NOTE The pneumatic and electrical connections can remain in The actual maintenance intervals can only be deter- the control module. - Page 16 Disassembly the control module • Remove the hinged clamps (1). Lower the valve disk : • Depressurize the actuator. ✗ The pneumatic and electrical connections can remain connected to the control module. • Remove the hinged clamps (5) between the control module and the actuator.
-
Page 17: Maintenance
Disassembly valve disk • Unscrew the valve disk (2) from the actuator by hand. • Unscrew the spacer nut (1) from the valve disk. • Withdraw the valve disk from the housing. • Withdraw the actuator. Maintenance CAUTION The stem of the valve disk (3), the housing seat (4), the valve seat (6) and the V-ring groove (5) are precision parts which must not be damaged! •... - Page 18 Replacing the seals ✗ Replace defective seals. Always replace the hous ing O-rings to ensure the tightness of the valve. Always use original spare parts. CAUTION When the V-Ring is re mov ed with a scriber, the scriber can slip off. There is danger of injury. Therefore grip the valve disk in a vice fitted with pro tec t ed jaws.
-
Page 19: Assembling
PARALIQ GTE 703. These lubricants are approved for foodstuff and is resistant to beer froth and have the NSF-H1 (USDA H1)-registration. PARALIQ GTE 703 can be ordered from GEA Tuchenhagen under part no. 413- 064 and Rivolta F.L.G. MD-2 under part no. 413-071. CAUTION When mounting the control module, make sure that the air hoses do not get kinked. - Page 20 DANGER There is a danger of injury when the spring-opening valve is assembled. Therefore, do not put your hand in the valve housing. Before unscrewing the valve disk, pretension the actuator using an emergency manual actuator (H) (part no. 221.310.74). Assemble the valve in the reverse sequence of disassembly.
-
Page 21: Dual Stem Device - Test Procedures
Dual Stem Device – Figure A: Test Position 1 Test Procedures The following procedures have been developed by GEA Tuchenhagen to comply with the Pasteurized Milk Ordinance for the Dual Stem Device Assembly. Device Assembly – Lock Nut Dual Stem Device... -
Page 22: Technical Data
5 mg/m – Water content: quality class 4 ✗ max. dew point +3 °C GEA Tuchenhagen accepts unopened actuators and If the valve is used at arranges for proper disposal free of charge. higher altitudes or at low ambient temperatures, the dew point must be adapted accordingly. -
Page 23: Resistance Of The Sealing Material
Resistance of the Sealing Materials The resistance of the sealing material depends on the type and temperature of the medium conveyed. Medium Sealing material EPDM (standard) FKM (optional) HNBR (optional) −40... +135 °C −10...+200 °C −25...+140 °C product caustics at 2...5% up to 80 °C up to 40 °C conditionally resistant... -
Page 24: Spare Parts Lists Fdd
Date: 2014-10-13 Spare parts list Page 1 of 2 ® Flow Diversion Device with T.VIS M-1 FDD 221ELI007089E_2.DOC 43,45 43,45 43,45 43,45 43,45 43,45 2014-10 · Flow Diversion Device with Proximity switch... - Page 25 Date: 2014-10-13 Spare parts list Page 2 of 2 ® Flow Diversion Device with T.VIS M-1 FDD 221ELI007089E_2.DOC Item Designation Material 1" OD 1½" OD 2" OD 2½" OD 3" OD 4" OD 6" OD EPDM 924-084 924-084 924-084 924-085 924-085 924-085 924-088...
-
Page 26: Dimension Sheet Fdd
Dimension Sheet Date: 2009-07-22 221MBL007088E_0.DOC ® Flow Diversion Device with T.VIS M-1 FDD Replace for 221MBL005795G Type XKR Type XWR *P= clearance required for maintenance (mm) ∅ ∅ ∅ ∅ Stroke Dimension 1" OD 25,4x1,6 1½" OD 38,1x1,6 465,5 36,5 2"... -
Page 27: Spare Parts Lists Control Module Fdd
2014-10 · Flow Diversion Device with Proximity switch... - Page 28 Replace for 221ELI006048E Ø2 Detail X (for lead-wire seal) 63 FDD-P 65 FDD-N 26.1* 26.2* Type FDD-N : Control Module without solenoid valve Type FDD-P : Control Module with solenoid valve GEA Tuchenhagen GmbH 2014-10 · Flow Diversion Device with Proximity switch...
- Page 29 M-1 FDD cpl. 602-060 26.1* Disk reflux valve Ms/vern. In case of protection class IP 67, in addition to sound absorber 933-967 928-676 26.2* Flat seal Only with reflux valve 602-060 GEA Tuchenhagen GmbH 2014-10 · Flow Diversion Device with Proximity switch...
- Page 30 We live our values. Excellence Passion Integrity Responsibility GEA-versity GEA Group is a global engineering company with multi-billion euro sales and operations in more than 50 countries. Founded in 1881, the company is one of the largest providers of innovative equipment and process technology.
