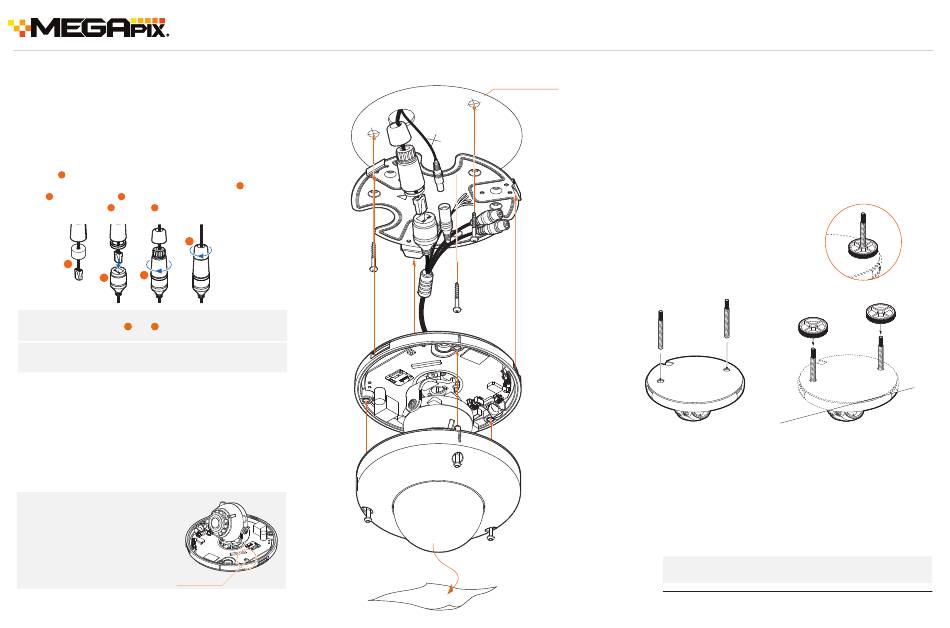

STEP 3 – INSTALLING THE CAMERA
1. Attach the main body to the mount bracket by tightening the
lock screw.
2. The waterproof cap set comes with two rubber rings with different
diameters. The black rubber ring has an internal diameter of ø0.15"
(ø4mm). The white rubber ring has an internal diameter of ø0.19"
(ø5mm). When using the waterproof cap, use the rubber ring best
suited for your network cable's diameter.
a. Pass the LAN cable through the waterproof cap, gasket and
the rubber ring.
a
b. Connect the LAN cable to the camera's network port
c. will be affixed to with a ¼ turn counter-clockwise.
c
b
d. Thread and twist tightly to c .
d
d
a
c
b
NOTE: To ensure moisture seal, make sure the o-ring is in
place between a and . In extreme environments use
b
of an outdoor rated sealer is recommended.
NOTE: Cables with ø4.5mm to ø5.5mm thickness should use
the black rubber ring. Cables over ø5.5mm in thickness
should use the white rubber ring.
3. Once the installation is complete, adjust the camera's tilt, panning
and rotation as needed. The cameras' max angles are:
Pan: 0° ~ 360°
Tilt: 0° ~ 70°
Rotation: 0° ~ 360°
4. Assemble the dome cover over the camera body and detach the
protecting film from the dome bubble.
Resetting the camera: To reset
the camera, use the tip of a paper
clip or a pencil and press the reset
button. Pressing the button for five
(5) seconds will initiate a
camera-wide reset of all
the settings, including
network settings.
Reset Button
.
b
Poron Ring
STEP 3 – INSTALLING THE CAMERA (CONT.)
Mounting Template
Installation using Mount Bolt and Screws:
1. Using the mounting template, mark and drill the holes on the
mounting surface.
2. Secure the two long mounting screws to the camera's base.
3. Pass the wires through the mount bracket and make all
necessary connections.
4. Mount the camera to the mounting surface by using the 2 mounting
nuts. Rotate the locking discs over the screws until the camera is
held tightly from the mounting surface.
Protective Film
Quick Start Guide
NOTE:
Please refer to DMP guide for additional information on integration
and camera control.
