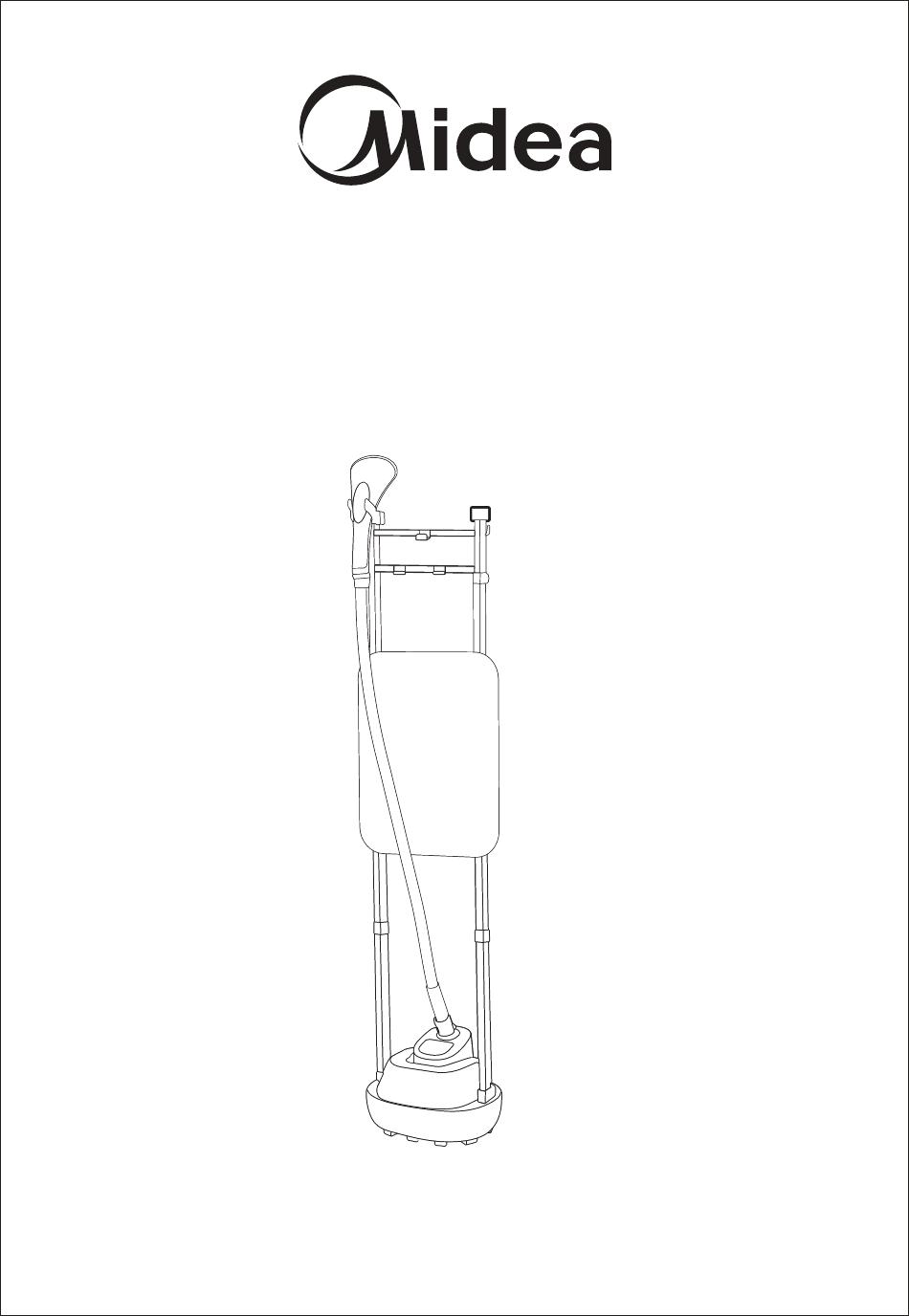

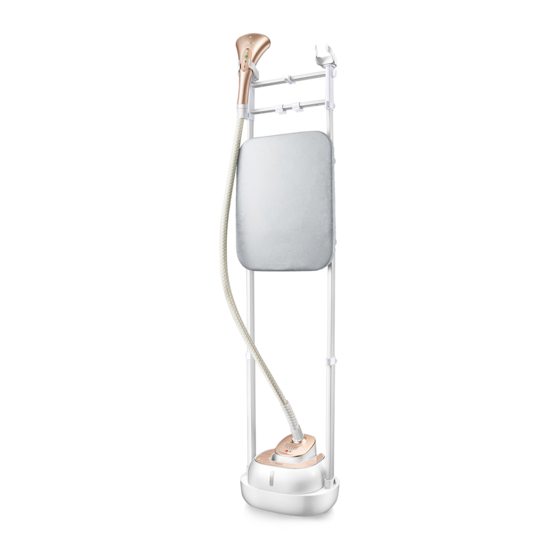

- Page 1 OWNER’S MANUAL Garment Steamer MODEL: GZ20D2W READ AND SAVE THESE INSTRUCTIONS Attention: Pictures in the IM are for reference only.
-
Page 2: Table Of Contents
CONTENTS Safety Cautions Parts Descriptions Installation Instructions Instructions Method Basic parameters Safety Protection Cleaning and Storage Circuit Diagram Troubleshooting... -
Page 3: Safety Cautions
Safety Cautions Before use, please read the Safety Cautions completely, and use the appliance in accordance with the requirements to avoid any damage to persons or properties. WARNING Never use this appliance for any purpose other than ironing clothes. Never use other high-power electric appliance on the same socket to avoid overload of circuits. - Page 4 Safety Cautions WARNING When the garment steamer is operating, it may produce steam of high temperature, which may cause deformation and discoloration of cloths with poor heat resistance (such as fur clothing). In this case, never use When the garment steamer is operating, never have the power cord in touch with hot surfaces of the appliance, such as the air duct and spray nozzle.
-
Page 5: Parts Descriptions
Safety Cautions CAUTIONS To prevent the hose from forming a U-shape,always place the steamer on the floor to ensure that the hose is straight. If you hear an excessive croaking sound or if the steam output is irregular, lift the steamer head from time to time to straighten the hose. -
Page 6: Installation Instructions
Parts Descriptions Discharge plug Brush Seam clamp Glove Ironing board (The schematic above is for reference only, and the actual product shall be based.) Warm Tips: It is recommended to use purified water or filtered water, which makes the Garment Steamer more durable. Avoid contamination of clothing by the impurities in the water after long use. - Page 7 Installation Instructions Installation of Windpipe 1.Align the boss of windpipe 2.Rotate the fastener clockwise, fastener with the “ ”and and lock by aligning the boss insert to the end. with the“ ” . Installation of hanging ironi ng board Schematic di agram of f ront ins tal lati on Alig n the fa sten er w ith th e first a nd secon d su ppo rt rod s an d set a t positio ns.
-
Page 8: Instructions
Instructions to removal and installation of handle control box and replacement of battery 1.For the first time, pry the handle control box. Press firmly 2.Press the battery snap, so that the battery can bounce. Battery insulation sheet Warm tips: 1.When the handle remote controller is insensitive, replace the battery. - Page 9 Key Control 1.Start Power Press the "Power" key to start the machine. 2.Functions Functions Press in the "Function" key to select the appropriate gear. Power Functions 3.Clean reminder When the " " indicator light on the main machine flashes, please clean the water tank and the main machine. Press and hold the "Function"...
-
Page 10: Method
Method G ene ral applic at ion Ｈａｎｇｉｎｇ ｉｒｏｎｉｎｇ Ｗｅａｒ ｇｌｏｖｅｓ ｏｒ ｇｌｏｖｅ ｂｏａｒｄｓ ｔｏ ｂｏａｒｄ ｃａｎ ｂｅ ｕｓｅｄ ｐｒｅｖｅｎｔ ｆｒｏｍ ｂｅｉｎ ｓｃａｌｄｅｄ ａｓ ａｎ ａｕｘｉｌｉａｒｙ ｔｏｏｌ ｆｏｒ ｉｒｏｎｉｎｇ Ｃｏｒｎｅｒｓ ａｎｄ ｌｏｗｅｒ ｈｅｍｓ． Ｉｒｏｎｉｎｇ ｂｏａｒｄ ｃａｎ ｂｅ Ａ ｂｒｕｓｈ ｃａｎ ｂｅ ｕｓｅｄ ｆｏｒ ｕｓｅｄ ａｓ ａｎ ａｕｘｉｌｉａｒｙ ｒｅｍｏｖｉｎｇ ｔｈｅ ｆｌｕｆｆｉｎｇ． ｔｏｏｌ ｆｏｒ ｉｒｏｎｉｎｇ Ｃｏｒｎｅｒｓ ｓｕｃｈ ａｓ ｃｏｌｌａｒｓ，ｃｕｆｆｓ． Wa rm tip s: Ｄｏ ｎｏｔ ｉｒｏｎ ｏｎｅ ｐｌａｃｅ ｆｏｒ ａ ｌｏｎｇ ｔｉｍｅ，ｓｏ ａｓ ｎｏｔ ｔｏ ｄａｍａｇｅ ｔｈｅ ｃｌｏｔｈｅｓ．... - Page 11 Method Ironing of tro use rs In case of requirements from clients for trousers axis,use the seam clamp for aid. Fix the trouserss axis by setting the seam clamp, press the spanner,and iron from the top downwards. Warm t ips: No overbending or U-shaped windpipe is allowed during ironing.
-
Page 12: Basic Parameters
Basic parameters Product name Garment steamer Model GZ20D2W 220-240V~ Voltage Frequency 50/60Hz Power 2000W Water tank capacity 2.0L Weight 358X293X1600mm Dimensions Safety Protection 1. Temperature detection protection: The Garment Steamer is equipped with a built-in temperature sensing element. When there is abnormal temperature,... -
Page 13: Circuit Diagram
Circuit Diagram Display panel Input power Wiring 50/60Hz 220-240V Power board Thermal fuse Heating body Temperature controller Troubleshooting Phenomenon Cause Troubleshooting The power plug is not inserted. Insert the power plug. The domestic circuit fails or the Please contact the professionals for The product does not fuse is burnt. - Page 14 When the steam conduit is in the In use, lift the hot head and vertically U-shaped state, the steam straighten the steam conduit, and condenses in the steam conduit. shake the hot head. In operation, there is a "grunt" sound. The product is placed on a high table, for example, on a table or a Place the product on the ground.
