Sw4 And Sw6 Models - Extron electronics SW RGBHV Series User Manual

AU
TO
SW
IC H
AC UT
IV E

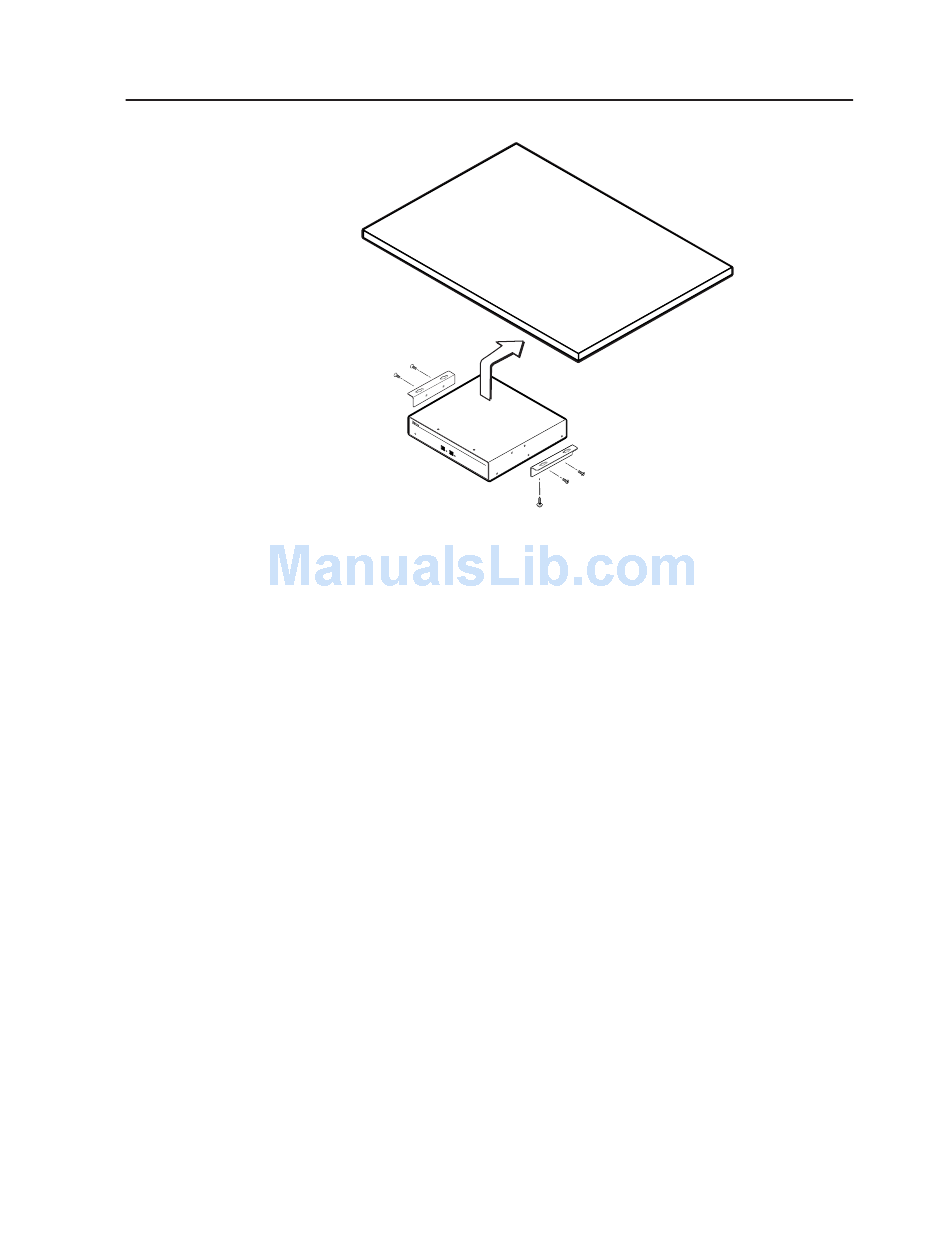

Figure 2-3 — Under-furniture mounting

SW4 and SW6 models

Secure the optional table/wall mounting brackets to the switcher with the
1.
eight #8 machine screws provided in the mounting kit (figure 2-2 on page 2-4).
Hold the switcher with attached brackets against the underside of the desk or
2.
other furniture. Mark the location of holes for screws on the underside of the
desk.
3. Drill 1/4" (6.4 mm) deep, 3/32" (2 mm) diameter pilot holes in the table or
desk at the marked screw locations from the underside/inside (concealed
side) of the furniture, where the switcher will be located.
4. Insert the four wood screws into the pilot holes. Fasten each screw into the
installation surface until just less than 1/4" of the screw head protrudes.
5. Align the installed screws with the slots in the mounting brackets, and place
the switcher against the surface, with the screws through the bracket slots.
6. Slide the switcher slightly forward or back, then tighten all four screws to
fasten it in place.
1
2
RG S W
BH
V & 2 R
AU G B
DI O
SW H V
IT CH
ER
Under Desk Kit
SW RGBHV Series Switchers • Installation 2-5
