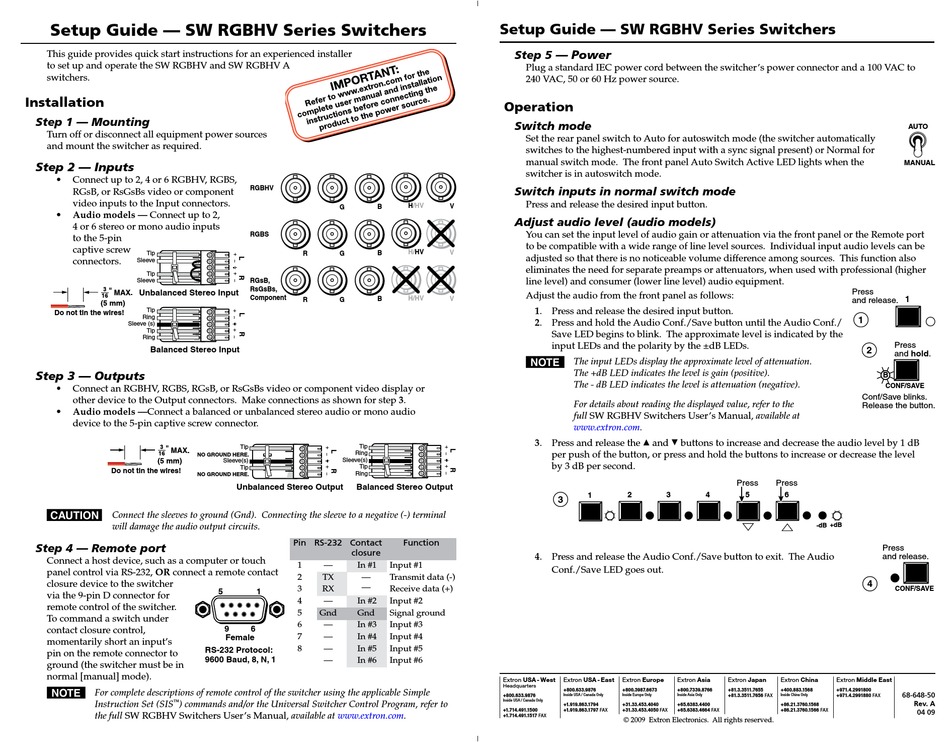

Setup Guide — SW RGBHV Series Switchers
This guide provides quick start instructions for an experienced installer
to set up and operate the SW RGBHV and SW RGBHV A
switchers.
Installation
Step 1 — Mounting
Turn off or disconnect all equipment power sources
and mount the switcher as required.
Step 2 — Inputs
Connect up to 2, 4 or 6 RGBHV, RGBS,
RGsB, or RsGsBs video or component
video inputs to the Input connectors.
Audio models — Connect up to 2,
4 or 6 stereo or mono audio inputs
to the 5-pin
captive screw
Tip
connectors.
Sleeve
Tip
Sleeve
Unbalanced Stereo Input
Tip
Do not tin the wires!
Ring
Sleeve (s)
Tip
Ring
Balanced Stereo Input
Step 3 — Outputs
Connect an RGBHV, RGBS, RGsB, or RsGsBs video or component video display or
other device to the Output connectors. Make connections as shown for step 3.
Audio models —Connect a balanced or unbalanced stereo audio or mono audio
device to the 5-pin captive screw connector.
NO GROUND HERE.
Do not tin the wires!
NO GROUND HERE.
C
Connect the sleeves to ground (Gnd). Connecting the sleeve to a negative (-) terminal
will damage the audio output circuits.
Step 4 — Remote port
Connect a host device, such as a computer or touch
panel control via RS-232, OR connect a remote contact
closure device to the switcher
via the 9-pin D connector for
remote control of the switcher.
To command a switch under
contact closure control,
momentarily short an input's
RS-232 Protocol:
pin on the remote connector to
9600 Baud, 8, N, 1
ground (the switcher must be in
normal [manual] mode).
N
For complete descriptions of remote control of the switcher using the applicable Simple
Instruction Set (SIS
) commands and/or the Universal Switcher Control Program, refer to
the full SW RGBHV Switchers User's Manual, available at www.extron.com.
RGBHV
B
G
RGBS
B
R
G
RGsB,
RsGsBs,
Component
R
G
B
Tip
Tip
Ring
Sleeve(s)
Sleeve(s)
Tip
Tip
Ring
Unbalanced Stereo Output
Balanced Stereo Output
Pin RS-232 Contact
closure
1
In #1
Input #1
2
TX
Transmit data (-)
3
RX
Receive data (+)
5
1
4
In #2
Input #2
5
Gnd
Gnd
Signal ground
6
In #3
Input #3
9
6
Female
7
In #4
Input #4
8
In #5
Input #5
In #6
Input #6
Setup Guide — SW RGBHV Series Switchers
— Power
Step 5
Plug a standard IEC power cord between the switcher's power connector and a 100 VAC to
240 VAC, 50 or 60 Hz power source.
Operation

Switch mode

Set the rear panel switch to Auto for autoswitch mode (the switcher automatically
switches to the highest-numbered input with a sync signal present) or Normal for
manual switch mode. The front panel Auto Switch Active LED lights when the
switcher is in autoswitch mode.
Switch inputs in normal switch mode
Press and release the desired input button.
H/HV
V
Adjust audio level (audio models)
You can set the input level of audio gain or attenuation via the front panel or the Remote port
to be compatible with a wide range of line level sources. Individual input audio levels can be
H/HV
V
adjusted so that there is no noticeable volume difference among sources. This function also
eliminates the need for separate preamps or attenuators, when used with professional (higher
line level) and consumer (lower line level) audio equipment.
Adjust the audio from the front panel as follows:
H/HV
V
1. Press and release the desired input button.
2. Press and hold the Audio Conf./Save button until the Audio Conf./
Save LED begins to blink. The approximate level is indicated by the
input LEDs and the polarity by the ±dB LEDs.
N
The input LEDs display the approximate level of attenuation.
The +dB LED indicates the level is gain (positive).
The - dB LED indicates the level is attenuation (negative).
For details about reading the displayed value, refer to the
full SW RGBHV Switchers User's Manual, available at
www.extron.com.
3. Press and release the
per push of the button, or press and hold the buttons to increase or decrease the level
by 3 dB per second.
3
Function
4. Press and release the Audio Conf./Save button to exit. The Audio
Conf./Save LED goes out.
Extron USA - West
Extron USA - East
Headquarters
+800.633.9876
+800.633.9876
Inside USA / Canada Only
Inside USA / Canada Only
+1.919.863.1794
+1.714.491.1500
+1.919.863.1797 FAX
+1.714.491.1517 FAX
>
<
and
buttons to increase and decrease the audio level by 1 dB
Press
2
3
4
1
5
Extron Europe
Extron Asia
Extron Japan
+800.3987.6673
+800.7339.8766
+81.3.3511.7655
Inside Europe Only
Inside Asia Only
+81.3.3511.7656 FAX
+31.33.453.4040
+65.6383.4400
+31.33.453.4050 FAX
+65.6383.4664 FAX
© 2009 Extron Electronics. All rights reserved.
AUTO
MANUAL
Press
1
and release.
1
Press
2
and hold.
B
CONF/SAVE
Conf/Save blinks.
Release the button.
Press
6
-dB +dB
Press
and release.
4
CONF/SAVE
Extron China
Extron Middle East
+400.883.1568
+971.4.2991800
68-648-50
Inside China Only
+971.4.2991880 FAX
Rev. A
+86.21.3760.1568
+86.21.3760.1566 FAX
04 09
