MediaLink
Controllers for
European Junction
Boxes

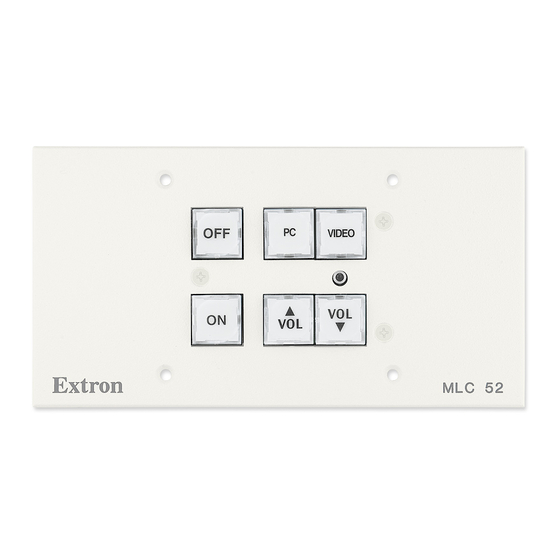

MLC 52 RS EU
MLC 52 RS VC EU
Simply take control of
your A/V system
®
MediaLink
Universal display control
➤
Discrete ON and OFF display power
➤
controls
Volume control using buttons or
➤
integrated volume control knob
Configurable, backlit, easy-to-label
➤
buttons
Three easy ways to configure:
➤
IR learning, preconfigured display
drivers, and IR beaming
Inactivity timer for display shutoff
➤
Front panel security lockout
➤
Designed to mount in a standard
➤
two-gang European junction box
Available with RAL9010 white
➤
or brushed aluminum faceplate
www.extron.com

Advertisement

loading
Need help?

Need help?

Do you have a question about the MediaLink Controllers MLC 52 RS EU and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Extron electronics MediaLink Controllers MLC 52 RS EU

Summary of Contents for Extron electronics MediaLink Controllers MLC 52 RS EU

  • Page 1 MediaLink Controllers for European Junction Boxes MLC 52 RS EU MLC 52 RS VC EU Simply take control of your A/V system Universal display control ➤ ® Discrete ON and OFF display power ➤ controls Volume control using buttons or ➤...
  • Page 2 Introduction Extron MLC 52 RS EU and MLC 52 RS VC EU MediaLink Controllers are economical control panels ideally suited for conference room or classroom A/V systems. Each model fits in a standard two-gang European junction box and offers IR control and unidirectional RS-232 control.
  • Page 3 Overview Display ON/OFF Clearly labeled buttons make it easy and convenient to turn the display on and off, eliminating the need for an external display remote European Mounting MLC 52 RS EU Series controllers fit conveniently in a MLC 52 RS EU standard two-gang European Front Panel junction box...

  • Page 4: Specifications

    specifications Application Diagram and Specifi cations DVD/VCR Combo S-video and Composite Video with Audio CONTROL — HOST PORTS Serial control port ... 1 bidirectional RS-232 front panel 2.5 mm mini stereo jack Baud rate and protocol ... 9600 baud, 8 data bits, 1 stop bit, no parity Serial control pin confi gurations ...
