C30

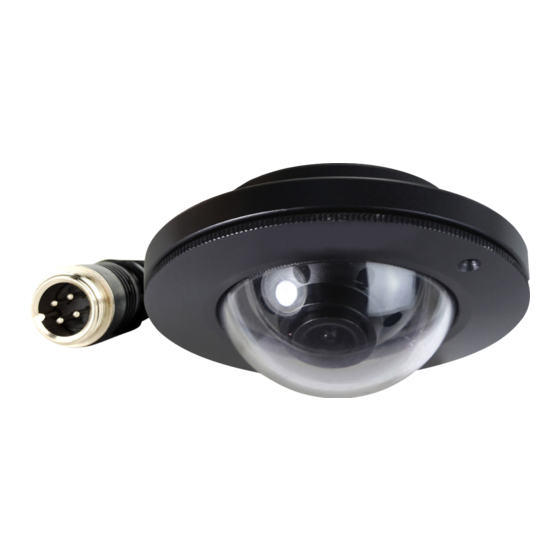

HIGH RESOLUTION DOME CAMERA
1/3" CMOS COLOUR CAMERA
SPECIFICATIONS
- Image Device:
- Diagonal Viewing Angle:
- Signal System:
- Effective Pixels:
- Resolution:
- Sync System:
- Orientation:
- Night Vision:
- Illumination:
- Ingress Protection:
- Integrated Microphone:
- Operating Temp:
- Power Consumption:
- Dimensions:
- Connection:
- Power Supply:
INCLUDED
- Installation Manual
- Mounting Bracket
INSTRUCTION MANUAL
1/3" PC1058 CMOS
150°
PAL
960H x 576V
600 TV Lines
Internal
Mirror View
Yes
0.1 Lux
IP69K
No
-20 to 70°
51mA±7
Ø76 x 44H mm
Terminated 4-Pin Female
12V DC
1
Advertisement
Related Manuals for Axis C30
Summary of Contents for Axis C30
- Page 1 HIGH RESOLUTION DOME CAMERA 1/3” CMOS COLOUR CAMERA SPECIFICATIONS - Image Device: 1/3” PC1058 CMOS - Diagonal Viewing Angle: 150° - Signal System: - Effective Pixels: 960H x 576V - Resolution: 600 TV Lines - Sync System: Internal - Orientation: Mirror View - Night Vision: - Illumination:...
- Page 2 C30 Camera Audio Video Ground Power 4 Pin (Male) Connection Assembly Camera Accessories 1. Camera 2. Swinging base 3. Outer ring for camera 4. Transparent cover 5. Washer 6. Top cover 7. O-Rings 8. Hexagon socket set screws 9. Instruction Manual 10.
- Page 3 Installation 1. Fix the base to an appropriate location. (Pic 1) (Pic 1) 2. Tighten outer ring and fix the camera. (Pic 2) O-Rings Camera Outer ring (Pic 2) 3. Adjust the camera to the desired viewing angle and tighten top cover. (Pic 3) Hexagon socket set screws O-Rings Transparent cover...
- Page 4 AX1570...
