1
Introduction ................................................................................................. 2
2
Components List ........................................................................................... 3
3
Design Considerations................................................................................... 4
4
Installation of FirePro Generators .................................................................. 5
5
Connection of Multiple FirePro Generators ...................................................... 6
6
Installation ................................................................................................... 7
7
Sservicing & Maintenance ............................................................................. 9
8
Specifications ............................................................................................... 9
9
Safety Data Sheet (SDS) FirePro ...................................................................10
Contents

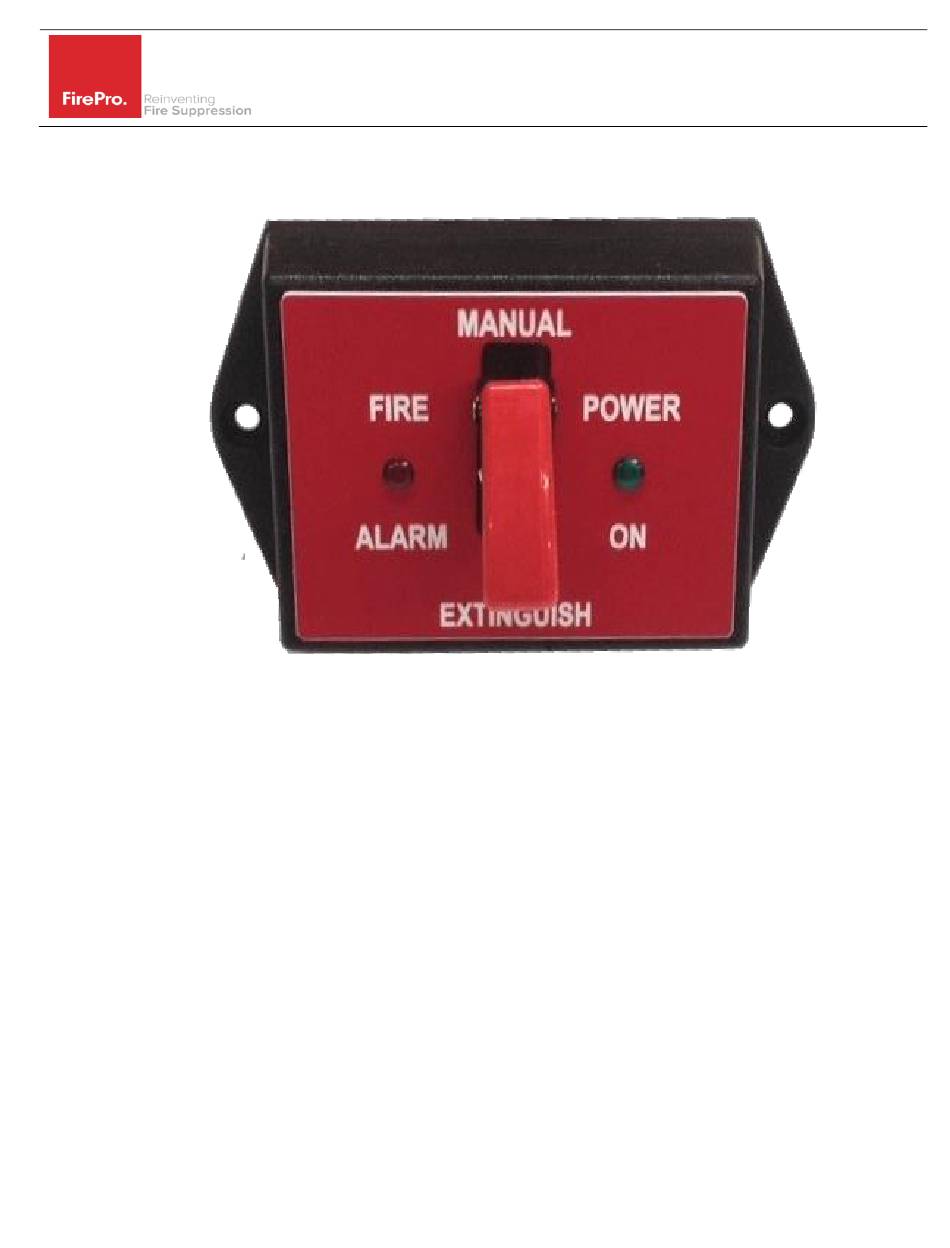

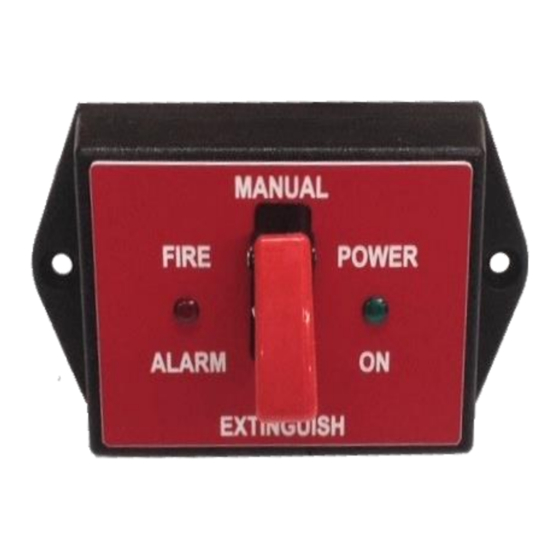

Control Panel
Model 08100
Rev 4.0
Page | 1
Advertisement
Table of Contents
Related Manuals for FirePro 08100
Summary of Contents for FirePro 08100
-
Page 1: Table Of Contents
Introduction ....................2 Components List ................... 3 Design Considerations................... 4 Installation of FirePro Generators ..............5 Connection of Multiple FirePro Generators ............6 Installation ....................7 Sservicing & Maintenance ................9 Specifications ....................9 Safety Data Sheet (SDS) FirePro ..............10... -
Page 2: Introduction
When pressed then the manual release switch will immediately ACTIVATE the Fire System. It will also activate the alarm(s) and the Fire LED will flash. Keep the FirePro suppression gas within the risk until the fire is extinguished and not able to re-ignite. -
Page 3: Components List
Discharge Circuit FirePro Aerosol Generator FP-6200 100g – 500g Unit. Heavy Duty Bracket 316 SS. Constructed from Stainless Steel. Suits FP-100, 200, 500 FirePro Aerosol Comes with installed Deutsch Plug for easy Generators. install FirePro Aerosol Generator FP-6100 1200g – 5700g Unit. -
Page 4: Design Considerations
Discharge Output The maximum number of FirePro generators able to be discharged by the FP-08800 Fire Control Panel is limited by the voltage of the main power supply. That is:... -
Page 5: Installation Of Firepro Generators
FirePro units shall be securely installed. Use heavy duty brackets where necessary. Brackets should be capable of handling the risk environment, including vibration. FirePro units must be installed at NOT less than the minimum safe distances as specified in the design calculations. -
Page 6: Connection Of Multiple Firepro Generators
Splitter Leads should be installed in areas easy to access and minimise extension leads. The supply voltage of any system will determine the no of FirePro units which can be used 12vDC... -
Page 7: Installation
Control Panel Model 08100 Rev 4.0 Installation Wiring Diagram Overview Power Supply Power – 12 to 30vDC 5A fuse or circuit breaker to be installed on incoming power supply. Siren / Strobe Unit BANSHEE multi-tone sounder/strobe - suitable for internal or external locations. - Page 8 Control Panel Model 08100 Rev 4.0 Detection – Linear Heat Detection(only) The panel may be installed with fire detection or with no detection. If Detection required simply connect the LHD cable to the detection circuit. Linear Heat Detection (LHD) is a line- type form of fixed temperature heat detection used in common commercial and industrial environments.
-
Page 9: Sservicing & Maintenance
Rev 4.0 Servicing & Maintenance The FirePro Suppression system should be serviced at least every 6 months in accordance with AS 1851, more often in aggressive environments. Periodic visual inspections of the installed system must also be conducted by the operators to ensure all installed parts are free from debris, rust, or electrical faults. -
Page 10: Safety Data Sheet (Sds) Firepro
Control Panel Model 08100 Rev 4.0 Safety Data Sheet (SDS) FirePro This is an EXTRACT ONLY from the full SDS. The SDS is prepared by Chemwatch - to view the www.chemwatch.com.au full SDS go to HAZARDOUS SUBSTANCE. DANGEROUS GOODS. According to NOHSC Criteria, and ADG Code.
