- Page 1 Ceiling Speaker AWP06 AUDAC PROFESSIONAL AUDIO EQUIPMENT In-wall Ceiling Speaker AWP06 User Manual & Installation Guide...
- Page 2 A U D A C P R O F E S S I O N A L A U D I O E Q U I P M E N T User Manual & Installation Guide AUDAC http://www.audac.eu info@audac.eu...
- Page 3 Index INTRODUCTION ..........................................3 WARNING-CAUTION ........................................4 INSTALLATION ..........................................5 CONNECTIONS ..........................................5 ADDITIONAL INFORMATION ....................................... 6 TECHNICAL SPECIFICATIONS ....................................6...

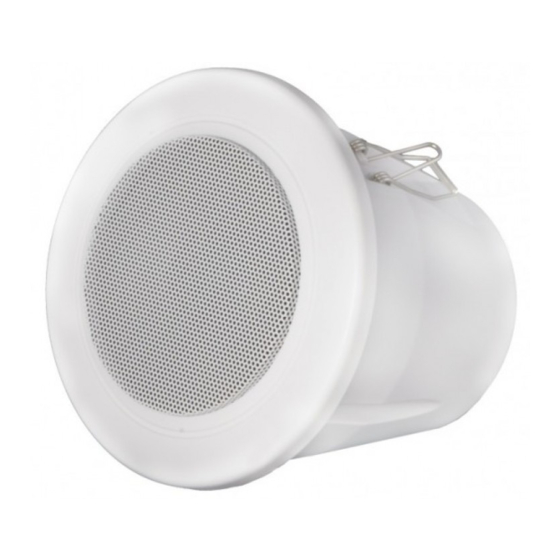

- Page 4 The housing is made of strong, white ABS material and is waterproof. The AWP06 can be used in a 100V PA system with tapping for 6 W or 3 W or in low impedance systems 8 Ohm/6...
- Page 5 Warning Use only the correct amplifier output voltage and impedance, exceeding these limits could cause fire or other failures. Avoid explosions: do not use the speaker around gasoline, thinner or other combustibles. Only install the speaker in locations that can structurally support the weight of the speaker.
- Page 6 Installation Make a hole with a diameter of 140 mm This is very easy when you use the carton that is inside of the box. Install the unit only in a ceiling made of strong material so that the mounting springs don’t damage the ceiling.
-
Page 7: Additional Information
Additional information Technical Specifications RMS Power Max Power 10 W Impedance 8 Ohm Line transformer power tappings 6 W / 1666 Ohm 3 W / 3333 Ohm 1,5 W / 6666 Ohm Sound pressure 1W / 1m 87 dB Sound pressure max W / 1m 95 dB Frequency response -3 dB 100 Hz –...
