Summary of Contents for Chauvet SlimPAR Pro H USB

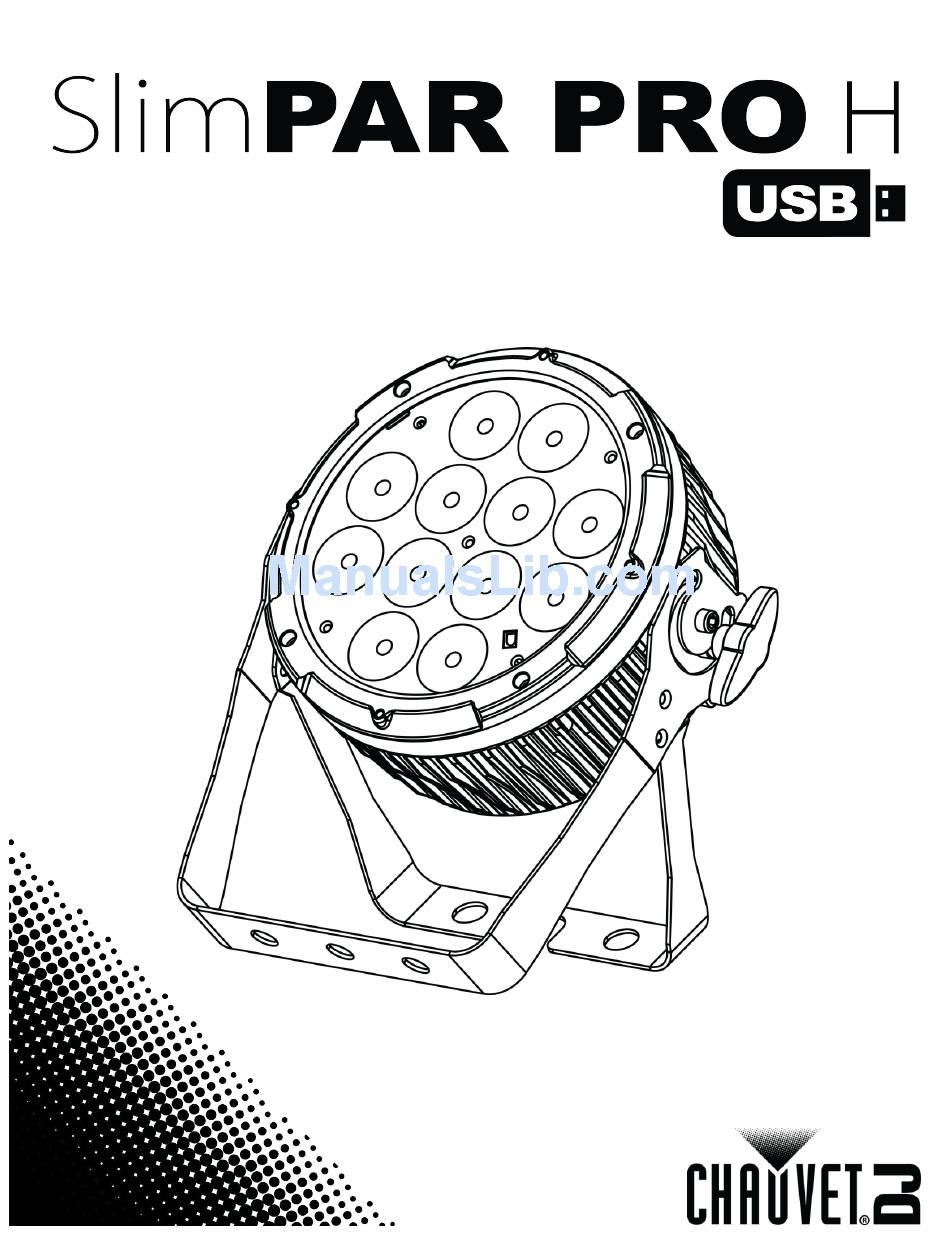

- Page 1 User Manual...
-
Page 2: Table Of Contents
IRC-6 Operation............................ 14 Master/Slave Mode (wired) ......................15 Master/Slave Mode (D-Fi USB) ....................15 5. Maintenance .........................16 Product Maintenance ........................16 6. Technical Specifications ....................17 Returns ..........................18 Contact Us .........................19 Page 2 of 19 SlimPAR Pro H USB User Manual Rev. 2... -
Page 3: Before You Begin
Chauvet reserves the right to revise the content of this document without any obligation to notify any person or company of such revision, however, Chauvet has no obligation to make, and does not commit to make, any such revisions. -
Page 4: Product At A Glance
Keep this User Manual for future use. If you sell the product to someone else, be sure that they also receive this document. Page 4 of 19 SlimPAR Pro H USB User Manual Rev. 2... -
Page 5: Introduction
Back Panel View Lenses IR Sensor Front View WARNING! DO NOT plug anything other than a D-Fi USB into the USB port. Doing so may cause damage to the product. SlimPAR Pro H USB User Manual Rev. 2 Page 5 of 19... -
Page 6: Product Dimensions
Product Dimensions 10 in 253 mm 11.4 in 290 mm 3.9 in 98 mm Page 6 of 19 SlimPAR Pro H USB User Manual Rev. 2... -
Page 7: Setup
Additional Products You can power link up to 5 SlimPAR PRO H USB products on 120 VAC or up to 10 SlimPAR PRO H USB products on 230 VAC. The power linking diagram corresponds to the North American version of the... -
Page 8: Mounting
Bracket Adjustment Knob x 2 Gel Frame The SlimPAR PRO H USB comes with a gel frame and a gel frame holder, which can be attached with the included screws. The gel frame holder can easily fit 7.5 inch barn Holder doors, such as the Ovation 7.5”... -
Page 9: Operation
Combine red, green, blue, amber, white, (amber) A000–255 and UV (white) W000–255 (UV) P000–255 dIM1 Dimmer speed mode, fast to slow, or off dIM2 dIM3 IR function on or off SlimPAR Pro H USB User Manual Rev. 2 Page 9 of 19... -
Page 10: Dmx Linking
DMX Linking The SlimPAR PRO H USB works with a DMX controller. Information about DMX is in the CHAUVET Primer, which available from Chauvet website http://www.chauvetlighting.com/downloads/DMX_Primer_rev05_WO.pdf. Configuration Set the product in DMX mode to control with a DMX controller. Connect the product to a suitable power outlet. -
Page 11: Dmx Personality And Starting Address
Address The SlimPAR PRO H USB uses up to 12 DMX channels in a 12CH DMX mode, which defines the highest configurable address to 501. If you are not familiar with the DMX protocol, download the DMX Primer from www.chauvetlighting.com. -
Page 12: 7-Ch
000 255 0–100% Green 000 255 0–100% Blue 000 255 0–100% Amber 000 255 0–100% White 000 255 0–100% 000 255 0–100% Page 12 of 19 SlimPAR Pro H USB User Manual Rev. 2... -
Page 13: Configuration (Standalone)
Use <UP> and <DOWN> to increase or decrease the sound sensitivity (u--0–100). Press <ENTER>. The product will return to the last selected mode. Preset Color To run the SlimPAR PRO H USB in preset color mode, follow the instructions below: Press <MENU> repeatedly until C-- shows on the display. Mode Press <ENTER>. -
Page 14: Irc-6 Infrared Remote Control
IRC-6 Infrared The SlimPAR PRO H USB is compatible with the IRC-6 infrared remote control from Chauvet. To activate IR mode, follow the instructions below: Remote Press <MENU> repeatedly until SEr shows on the display. Control Press <ENTER> to accept. -
Page 15: Master/Slave Mode (Wired)
Do not connect more than 31 slaves to the master. Master/Slave The D-Fi USB allows a single SlimPAR PRO H USB product (the “master”) to control the actions of one or more SlimPAR PRO H USB products (the “slaves”) without the need of Mode a DMX controller or DMX cables. -
Page 16: Maintenance
Softly drag any dirt or grime to the outside of the transparent surface. Gently polish the transparent surfaces until they are free of haze and lint. Always dry the transparent surfaces carefully after cleaning them. Page 16 of 19 SlimPAR Pro H USB User Manual Rev. 2... -
Page 17: Technical Specifications
104 °F (40 °C) Convection I/O Connectors Channel Range 3-pin XLR 6, 7 or 12 Ordering Product Name Item Code UPC Number SlimPAR PRO H USB 03031132 781462214807 SlimPAR Pro H USB User Manual Rev. 2 Page 17 of 19... -
Page 18: Returns
If you are located in Mexico, contact Chauvet Mexico. • If you are located in Benelux, contact Chauvet Europe BVBA. • If you are located in any other country, DO NOT contact Chauvet. Instead, contact your local distributor. See www.chauvetlighting.com for distributors outside the U.S., UK, Ireland, Mexico, or Benelux. -
Page 19: Contact Us
Outside the U.S., United Kingdom, Ireland, Mexico, or Benelux contact the dealer of record. Follow their instructions to request support or to return a product. Visit our website for contact details. SlimPAR Pro H USB User Manual Rev. 2 Page 19 of 19...
