- Page 1 ED200 INSTRUCTION MANUAL...
- Page 2 Important Safeguards ?Read all of these instructions. ?Save these instructions for later use. ?All warnings on the products and in the operating instructions should be adhered to. ?Unplug this appliance system from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners, use a damp cloth for cleaning.
- Page 3 ?Follow all warnings and instructions marked on the appliance. ?Do not overload wall outlets and extension cords as this can result in fire or electric shock. ?Never push objects of any kind into his appliance through cabinet slots as they mat touch dangerous voltage points or short out parts that could result in fire or electric shock.
-
Page 4: Risk Of Electric Shock Do Not Open
CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION TO REDUCE THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER ( OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERRSONNEL. The lightning flash with an arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of non-insulated ”dangerous voltage”... - Page 5 Note: This equipment has been tested and found to comply with the limi t s for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection. This equipment generates, uses and can radiated radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

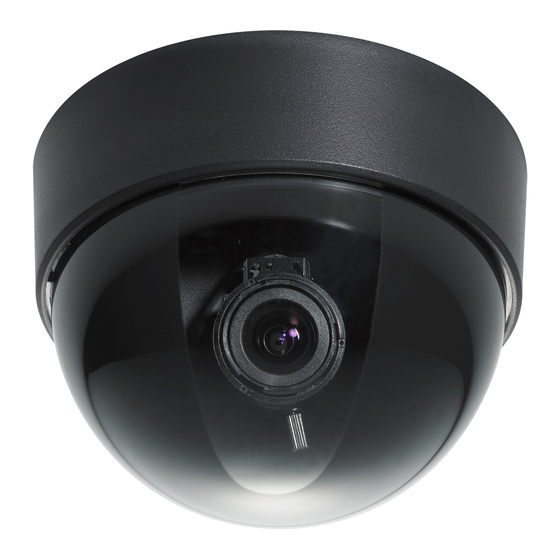

- Page 6 The ED200 Series Camera is a compact, full functioned CCD Camera. Their stylish appearance can be applied as per installer's ideal locations. These dome cameras can be mounted either on the ceiling or on the wall easily. ED200 uses high sensitive 1/3" color interline transfer CCD sensor with DSP .
-
Page 7: Installation Instructions

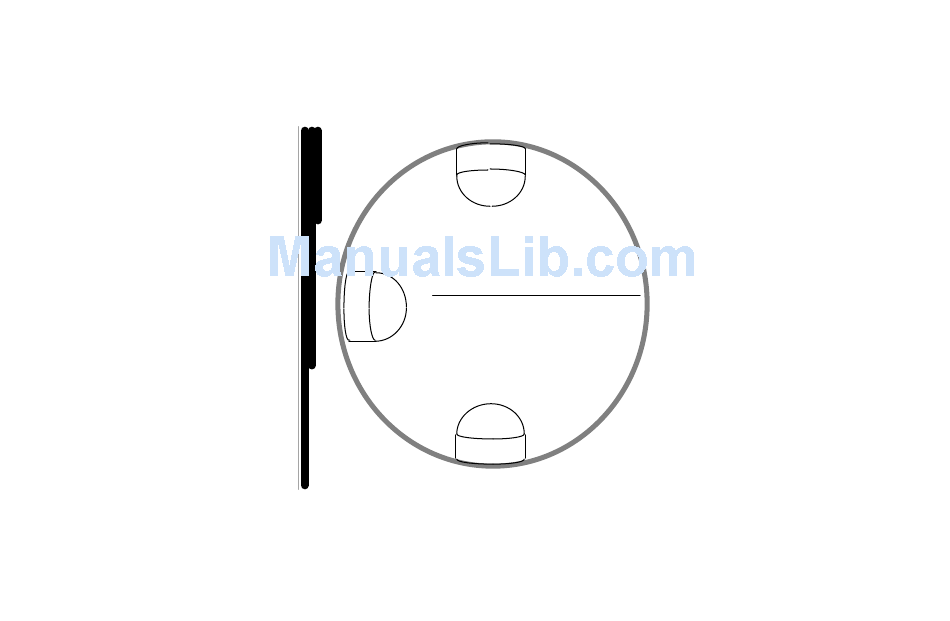

III. Lens Available * Standard board lens f=3.6 mm, F=2.0 mm. * Other available lens : -2 Lens f=2.5 mm, F=2.0 mm Lens f=4.3 mm, F=2.0 mm Lens f=6.0 mm, F=2.0 mm Lens f=8.0 mm, F=2.0 mm -3P Pinhole lens f=3.7 mm, F=3.0 mm IV. - Page 8 a. Floor Mount b. Ceiling Mount d. Wall mount, c. Wall mount, aim to the left aim to the right Connect the BNC connector of the camera to a color monitor, or other video device through a 75 ohm type coaxial cable with BNC female connector at cable extension.
- Page 9 Connect the DC +12V regulated power source of the camera (DC Jack) to the DC 12V Power- in jack with 2 mm, center+, outer- plug. Once the image appears on the monitor, loosen the fixing screw located at the lens mount then adjust the focus and diaphragm of the lens to obtain the best picture.
-
Page 10: Specifications
V. Specifications Pickup device: 1/3“ interline transfer CCD Picture element: 510 x 492 (NTSC) 500 x 582 (PAL) Horizontal resolution: 380 TV Lines Sensitivity: 0.3 Lux/F=1.2 S/N ratio: Over 48 dB Electronic shutter: Up to 1/100,000 Auto white balance: Gamma correction: 0.45 Video output: 1.0Vp -p, 75 ohm... -
Page 11: Package Contents
VI. Package Contents • ED200 Camera unit • User’s manual... - Page 12 FAX : +81-43- 297-0081 TEL: 49-2822-9394-0 www.everfocus .com FAX: 49-2822939495 www.everfocus .de Ihr EverFocus Produkt wurde Your EverFocus product is designed entwickelt und hergestellt mit and manufactured with high quality qualitativ hochwertigen Materialien materials and components which can und Komponenten, die recycelt und be recycled and reused.
