VS-411UHD Quick Start Guide
This guide helps you install and use your VS-411UHD for the first time.
Go to
firmware upgrades are available.
Scan for full manual
Step 1: Check what's in the box

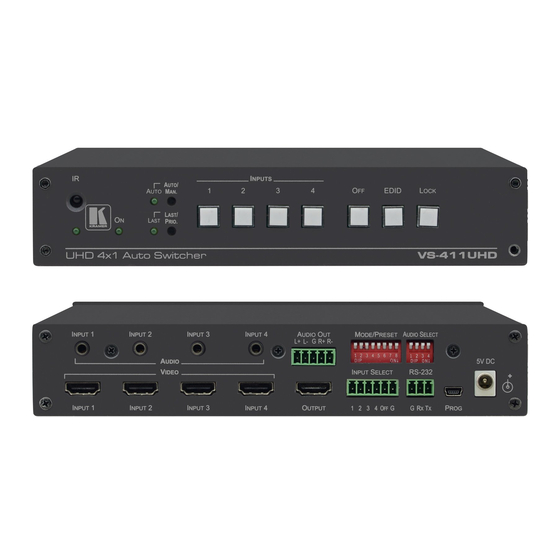

VS-411UHD UHD 4x1 Auto Switcher
1 Power supply (5V DC)

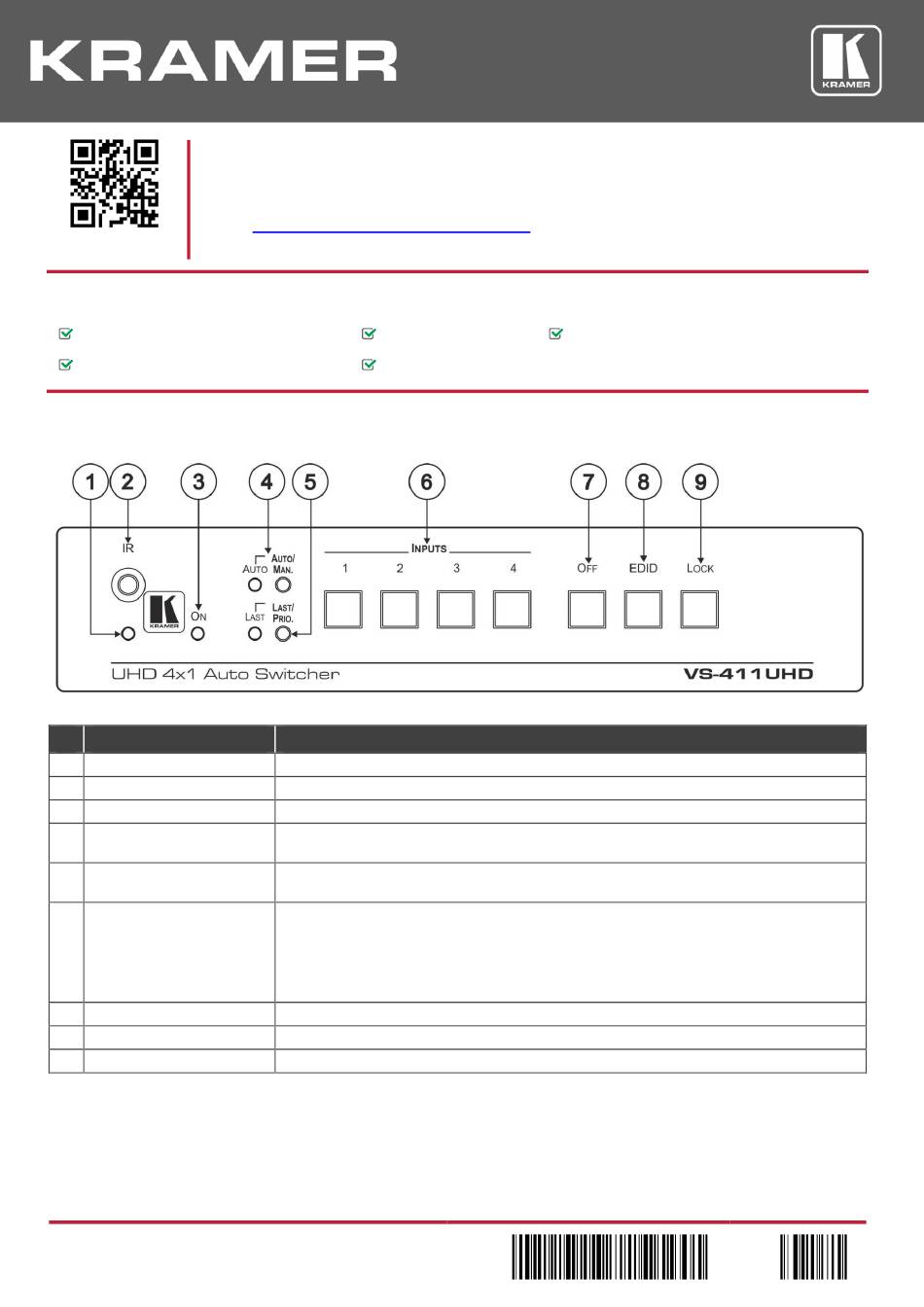

Step 2: Get to know your VS-411UHD
# Feature
1 IR LED
2 IR Receiver
3 ON LED
4 AUTO/MAN. Selector
Button and LED
5 LAST/PRIO. Selector
Button and LED
6 INPUTS Selector Buttons
7 OFF Button
8 EDID Button
9 LOCK Button
VS-411UHD Quick Start (P/N: 2900-300829QS REV 2)
www.kramerav.com/downloads/VS-411UHD
4 Rubber feet
1 Quick start guide
Function
Lights when the unit accepts IR remote commands
Accepts IR remote commands
Lights when power is connected to the unit
Toggle switch to select between automatic (LED on) or manual switching (LED off)
When in the AUTO mode, switch toggles to select switching to the last connected input (LED
on) or the highest priority input (LED off).
Press the INPUT button to select the input to switch to the output (from 1 to 4).
Button LED indication:
A selected input – the button illuminates
An active input that is not selected – the button is dim
A non-active button that is not selected – the button is dark
Press to mute the video output (lit when muted)
Press to copy the EDID (button is illuminated)
Press to lock the front panel buttons (button is illuminated)
to download the latest user manual and check if
IR remote control transmitter with batteries
P/N: 2 9 0 0 - 3 0 0 8 2 9 QS Rev: 2
