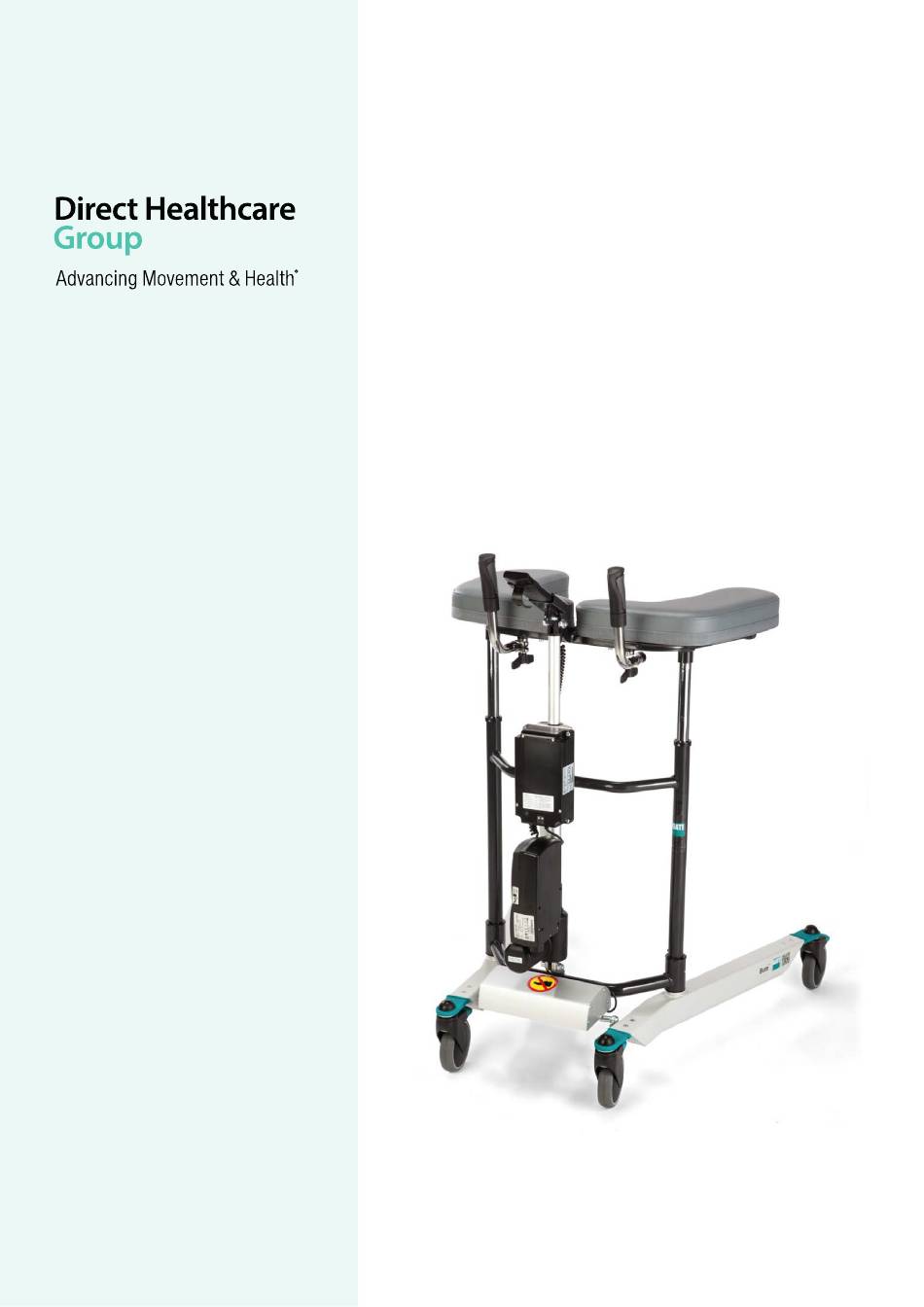

- Page 1 Bure Double 2.0 Technical Manual D I R E C T H E A LT H C A R E G R O U P. C O M...
- Page 2 BURE DO U BLE 2.0 DIRECTHEALTHC ARE G RO U P.CO M...
-
Page 3: Table Of Contents

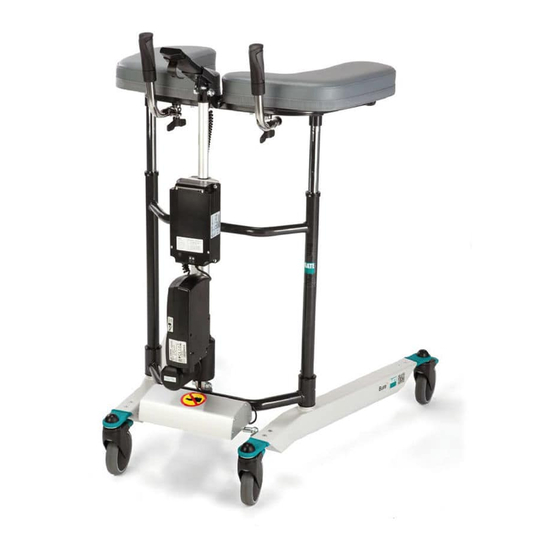

TEC HN I CAL MANU AL Bure Double 2.0 The new Bure Double is equipped with twin electric drives for raising and lowering the walker and widening the walking frame. The new version has a significantly lower height above the walking frame for better access and a higher user weight (150 kg) compared to the earlier version. -
Page 4: Replacement Parts List
BURE DO U BLE 2.0 1. Replacement parts list 57-306 Armrestpad left 12 58-364 Circular plate 57-305 Armrestpad right 58-365 Frame/Armrest 13 58-352 Cross section 57-041-3 Holder, Remote control (TH7) 14 58-302 Bearing (x2) Cross section 57-369 Clamp/Battery (alu) 15 58-353 Turn axle, beam 57-370 Plate Clamp/Battery (alu) - Page 5 TEC HN I CAL MANU AL DIRECTHEALTHC ARE G RO U P.CO M...
-
Page 6: Electrical System - Technical Data
BURE DO U BLE 2.0 3. Electrical system - technical data Actuator Lift Widening Producer T-Motion T-Motion Voltage Push 2000N 1000N Pull 2000N 1000N Self-locking push 1000N 1000N Current 4.6A 2.8A Colour Svart/Black Svart/Black Stroke 400mm 55mm Mounting dim 605mm 167mm Encapsulation IP66... -
Page 7: Control Box Wiring
TEC HN I CAL MANU AL 5. Control box wiring Remove the control box cover to make the connections as described below. Use a screwdriver or similar; refer to the special labels on the control box. NOTE: Make sure that plugs are connected to the correct sockets otherwise the actuators can be damaged. -
Page 8: Maintenance
BURE DO U BLE 2.0 8. Maintenance Recommended at least once per year. Check that Action General The walker feels firm/does not feel loose. Clean with lukewarm soap solution or alcohol-based The walker does not rattle during manoeuvres. cleaning agent (no petroleum products). The walker is level and all of its castors are in contact with the floor. -
Page 9: General Safety/Maintenance Advice
TEC HN I CAL MANU AL 9. General safety/maintenance advice The Bure Walker may only be used: • As a WALKING AID / STAND-UP AID • INDOORS on HARD, LEVEL surfaces. Before use, always check that: • The product feels firm, secure and stable •... -
Page 10: Technical Specifications
BURE DO U BLE 2.0 13. Technical specifications Dimensions apply to walkers with 125 mm castors. Part no. Product width Max user Length Height Weight Armrest/Internal weight dimension 56-303 64-95cm 150kg 87cm 90-130cm 40kg 25-50cm DIRECTHEALTHC ARE G RO U P.CO M... - Page 11 TEC HN I CAL MANU AL DIRECTHEALTHC ARE G RO U P.CO M...
- Page 12 Direct Healthcare Group Withey Court, Western Industrial Estate Caerphilly CF83 1BF T: 0800 043 0881 F: 0845 459 9832 E: info@directhealthcaregroup.com LIT-00132 Issue 1 Date: January 2020 D I R E C T H E A LT H C A R E G R O U P. C O M...
