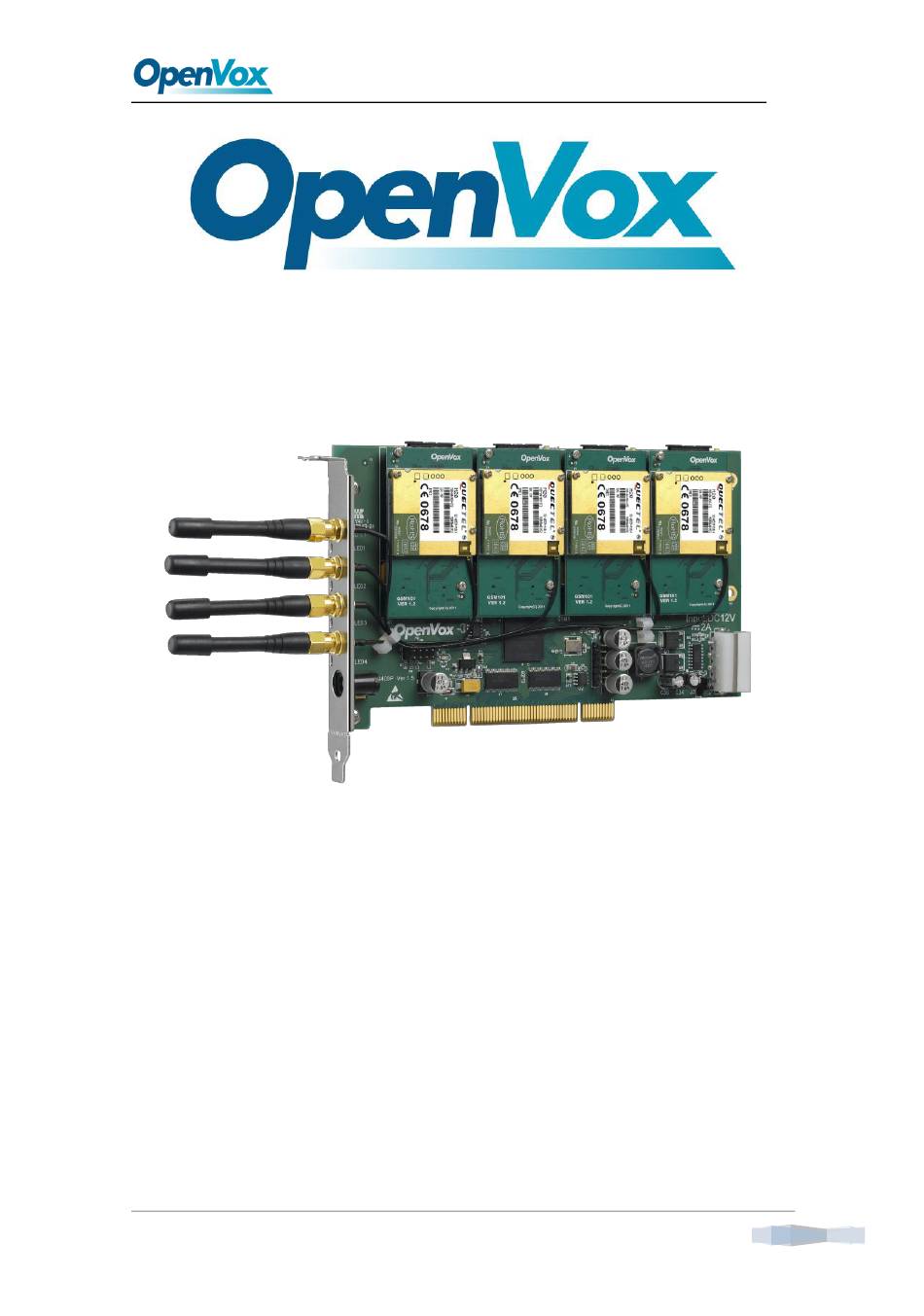

- Page 1 G400P User Manual OpenVox Communication Co.Ltd OpenVox G400P User Manual Version: 2.2 OpenVox Communication Co. LTD. URL: www.openvox.cn http://ArtTel.ru...
- Page 2 Shazui Road, Futian District, Shenzhen, Guangdong 518048, China Tel:+86-755-82535461, 82535095, 82535362, Fax:+86-755-83823074 Business Contact: sales@openvox.com.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. LTD. URL: www.openvox.cn http://ArtTel.ru...
- Page 3 G400P User Manual Copyright © Copyright 2011 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Inc.
-
Page 4: Table Of Contents
General Safety Instructions ..................4 Test Environme nts ....................... 5 Chapter 1 Ove rvie w ..................... 6 1.1 What is Asterisk ....................6 1.2 What is G400P ....................7 Chapter 2 Hardware Setup ..................10 2.1 Power supply....................10 2.2 Slot compatibility .................... 11 2.3 Indication LEDs .................... -
Page 5: General Safety Instructions
PC. 4. For avoiding personal injuries and damage to your computer and G400P card, make sure bracket of the card is secured to the PC ’s chassis ground by fastening the card with screws. -
Page 6: Test Environments
G400P User Manual Test Environments CentOS-5.6 Kernel version: 2.6.18-238.12.1.el5 chan_extra-1.1.2 GSM SIM cards OpenVox G400P OpenVox Communication Co. LTD. URL: www.openvox.cn http://ArtTel.ru... -
Page 7: Chapter 1 Overview
G400P User Manual Chapter 1 Overview 1.1 What is Asterisk The Definition of Asterisk is described as follows: Asterisk is a complete PBX in software. It runs on Linux, BSD, Windows (emulated) and provides all of the features you would expect from a PBX and more. -
Page 8: What Is G400P
G400P User Manual 1.2 What is G400P G400P is a 4-channel (slots) PCI GSM card and works in the GSM network. One GSM module supports one SIM card. The 3rd generation module based on chan_extra driver for OpenVox GSM cards support 3G(WCDMA). - Page 9 G400P User Manual G400P 网络交换机 SIP 电话 服务器 PC+软电话 移动电话 Figure 2 Sample application Key benefits IMEI and PIN modification SMS batch receiving/sending, AT command availability Support USSD Scalable: Extending the system by adding more modules ...
- Page 10 G400P User Manual Application: Use Asterisk ® to build your IP-PBX/Voicemail system RoHS compliant Certificates: CE, FCC Features Owns an electrical circuit switch to ensure the GSM modules are power-off when the system reboots Be compatible with Industry Standard: PCI 2.2 ...
-
Page 11: Chapter 2 Hardware Setup
G400P User Manual Chapter 2 Hardware Setup There are some points should be paid attention to setup G400P. 2.1 Power supply Please take particular attention to power supply connection. There are two alternatives allow users to select a power supply. -
Page 12: Slot Compatibility
G400P is compatible with 32-bit 5.0V PCI slot (slot2), 64-bit 3.3V PCI slot (slot3), and 64-bit 5.0V PCI slot (slot 4), while it is not fit for PCI-E slot. You should confirm your slot type, and then insert G400P into a PCI slot. PCI and PCI-E slots are showed as follows: ×1... -
Page 13: Gsm Modules And Sim Cards
D8 and D9, under normal circumstances, they are lit when powered and D9 flashes more quickly than D8. 2.4 GSM modules and SIM cards G400P supports 2G and 3G module, M20 is 2G module and WCD100 is 3G module, please go to here for modules’... -
Page 14: Hardware Setup Procedure
Power off your PC, remember unplug the AC power cable Place SIM cards for GSM modules Insert G400P into a PCI slot Select a power supply way as previously stated Fix the board by a screw ... -
Page 15: Chapter 3 Software Installation And Configuration
Region 0: Memory at febf0000 (32-bit, non-prefetchable) [size=64K] Figure 6 Hardware detection If G400P is not recognized by the system, you have to power off and take out of the card, then try to insert it into another PCI slot. - Page 16 G400P User Manual # yum install bison # yum install bison-devel # yum install ncurses # yum install ncurses-devel # yum install zlib # yum install zlib-devel # yum install openssl # yum install openssl-devel # yum install gnutls-devel # yum install gcc...
-
Page 17: Chan_Extra, Dahdi And Asterisk Installation
Otherwise, the system will keep on installing it. 3.3 chan_extra, DAHDI and Asterisk installation Go to OpenVox official website to download chan_extra, the url link is: http://www.chan-extra.org/download/releases/ Download chan_extra to the directory /usr/src/ in generally, and then unzip it. - Page 18 Checking for libxml2-devel... [ OK ] Press [Enter] to continue... Figure 7 Depedencies detection G400P software installation is indicated by some wizard options, you should select the right option by your specific case. Now let’s introduce how to install the driver by source code.
- Page 19 G400P User Manual ######################################################################## OpenVox Extra Installation Script v1.1.2 OpenVox Communication Co.,Ltd Copyright (c) 2009-2011 OpenVox. All Rights Reserved. ######################################################################## 1) Source code install 2) Trixbox-dahdi install 3) Elastix-dahdi install q) quit Please enter your selection (1..3 or q) ->...
- Page 20 G400P User Manual dahdi-linux-complete-2.3.0.1+2.3.0 which are included in the installation package. If there are any other versions, the system will automatically look for and show the outcome.) -->n: dahdi-linux-complete-2.3.0.1+2.3.0.tar.gz [default] (If you want the system to download and install the default version dahdi-linux-complete-2.3.0.1+2.3.0 automatically, you should type...
- Page 21 G400P User Manual dahdi_linux_complete is not support now, please don’t choose this option) -->q: skip the step (Skipping DAHDI installation directly) After selecting the way you want to install DAHDI, the system will install it automatically until other options appear to install Asterisk.
- Page 22 G400P User Manual -->n: asterisk-1.6.2.11.tar.gz [Default] (The system will download and install asterisk-1.6.2.11 which is included in the installation package automatically if selecting this option) -->m: Enter Asterisk directory path manually (Choosing this option allows you to type the full path of Asterisk source if you have installed Asterisk.
-
Page 23: Driver Loading And Asterisk Initiation
# dmesg The following figure shows dmesg outputs information ACPI: PCI Interrupt 0000:03:00.0[A] -> GSI 16 (level, low) -> IRQ 169 Found an OpenVox G400P: Version 1.1 opvxg4xx: slot 0 is Installed opvxg4xx: slot 1 is Installed opvxg4xx: slot 2 is Installed opvxg4xx: slot 3 is Installed opvxg4xx: Powering up all spans... -
Page 24: Dialplan Edit
G400P User Manual Start Asterisk by executing command: # asterisk -vvvvvvgc If Asterisk is already activate, run "asterisk –r" instead. In the CLI, please run the following command: localhost*CLI> gsm show spans GSM span1: Provisioned, Up, Active GSM span2: Provisioned, Up, Active... - Page 25 G400P User Manual [from-gsm] exten => s, 1, Answer() exten => s, n, Dial(SIP/500) [from-internal] exten => 100,1,Dial(extra/1/10000) exten => 100,2,Hangup exten => 200,1,Dial(extra/3/10000) exten => 200,2,Hangup exten => 300,1,Dial(extra/5/10000) exten => 300,2,Hangup exten => 400,1,Dial(extra/7/10000) exten => 400,2,Hangup Figure 13 dial plan show The above dial plan realizes that calls from GSM network, Asterisk will connect it to SIP phone 500 which has registered previously.
-
Page 26: Chapter 4 References
G400P User Manual Chapter 4 References www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com Tips Any questions during installation please consult in our forum or look up for answers from the following websites: Forum wiki OpenVox Communication Co. LTD. URL: www.openvox.cn http://ArtTel.ru... -
Page 27: Appendix A Specifications
G400P User Manual Appendix A Specifications • Weight and size Weight: 212g (6.82oz) Size: 17.9 × 9.9 × 1.8 cm (7.05× 3.9× 0.71inch) • Interfaces PCI Bus: 3.3V or 5V bus slot, PCI 2.2 or above Power Supply Connect: 12V 4-pin connector •... -
Page 28: Appendix B 2G And 3G Modules
G400P User Manual Appendix B 2G and 3G Modules 2G Module: M20 Support Frequency Band: GSM850MHz GSM900MHz DCS1800MHz PCS1900MHz 3G Modules 1. WCD100: SIM5215A It is a 2G/3G module, and its 2G function is used in worldwide while 3G function is commonly used in America. - Page 29 G400P User Manual Support Frequency Band: GSM850MHz EGSM900MHz DCS1800MHz PCS1900MHz WCDMA850MHz WCDMA1900MHz 2. WCD100: SIM5215E It is a 2G/3G module, and its 2G function is used in worldwide while 3G function is commonly used in Europe.
-
Page 30: Appendix C Gsm Frequency Band Reference
G400P User Manual Appendix C GSM Frequency Band Reference 1900MHz 1800 MHz 900 MHz 850 MHz America Antigua, Anguilla Argentina Antigua Bahamas Argentina Barbados Bolivia Belize Antigua Brazil Bermuda Barbados Canada British Virgin Brazil Colombia Islands British Virgin Dominican Bolivia... - Page 31 G400P User Manual Germany Germany Greece Greece Hungary Hungary Ireland Ireland Italy Italy Liechtenstein Liechtenstein Lithuania Lithuania Luxembourg Luxembourg Malta Malta Netherlands Netherlands Poland Poland Portugal Portugal Romania Romania Slovakia Slovakia Slovenia Slovenia Spain Spain Sweden Sweden Turkey Turkey Ukraine...
