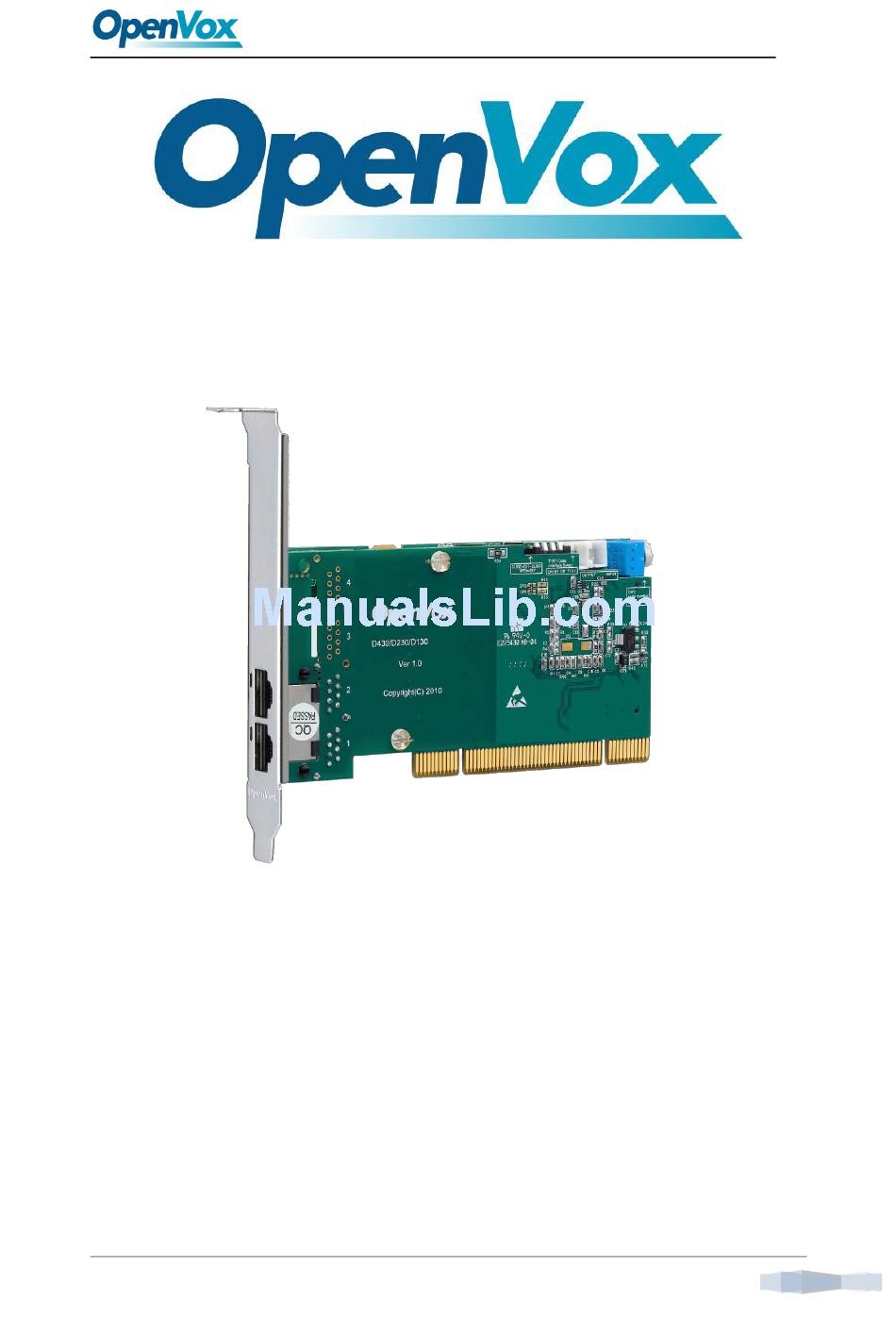

- Page 1 D230P/DE230P on DAHDI User Manual OpenVox Communication Co.Ltd D230P/DE230P on DAHDI User Manual Version: 2.2 OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 2 D230P/DE230P on DAHDI User Manual OpenVox Communication Co.Ltd Most Advanced Asterisk Cards Address: F/3, Building No.127, Jindi Industrial Zone, Shazui Road, Futian District, Shenzhen, Guangdong 518048, China Tel:+86-755-82535461, 82535095, 82535362, Fax:+86-755-83823074 Business Contact: sales@openvox.com.cn Technical Support: support@openvox.com.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
-
Page 3: Url: Www.openvox.cn
D230P/DE230P on DAHDI User Manual Copyright © Copyright 2011 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. - Page 4 D230P/DE230P on DAHDI User Manual will be advised of your right to file a complaint with the FCC if you believe it is necessary. The telephone company may make changes in its facilities, equipment, operations or procedures that could affect the operation of the equipment. If this happens the telephone company will provide advance notice in order for you to make necessary modifications to maintain uninterrupted service.
- Page 5 D230P/DE230P on DAHDI User Manual RENs should not exceed five (5.0). To be certain of the number of devices that may be connected to a line, as determined by the total RENs, contact the local telephone company. The REN for this product is part of the product identifier that has the format US:AAAEQ##TXXXX.
-
Page 6: Table Of Contents
D230P/DE230P on DAHDI User Manual Contents General Safety Instructions ..................6 Test Environme nts ....................... 7 Chapter 1 Ove rvie w ..................... 8 1.1 What is Asterisk ....................8 1.2 What is D230P/DE230P..................9 Chapter 2 Hardware Setup ..................11 2.1 Span type setup .................... -
Page 7: General Safety Instructions
D230P/DE230P on DAHDI User Manual General Safety Instructions CAUTION 1. The computers that have card installed must comply D230P/DE230P with the country’s specific safety regulations. 2. Only service personnel should go to install card. D230P/DE230P 3. Before installing card, please unplug the power cord... -
Page 8: Test Environments
D230P/DE230P on DAHDI User Manual Test Environments CentOS-5.5 Kernel version: 2.6.18-194. el5 DAHDI: dahdi-linux-complete-current Asterisk: asterisk-1.8.5.0 Libpri:libpri-1.4.11.5 Hardware: OpenVox D230P/DE230P OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 9: Chapter 1 Overview
D230P/DE230P on DAHDI User Manual Chapter 1 Overview 1.1 What is Asterisk The Definition of Asterisk is described as follows: Asterisk is a complete PBX in software. It runs on Linux, BSD, Windows (emulated) and provides all of the features you would expect from a PBX and more. -
Page 10: What Is D230P/De230P
The D230P/DE230P is an upgrade product of the D210P/DE210P. They support T1, E1, and J1 environments and is selectable on a per-card or per-port basis. D230P/DE230P is supposed to be the most advanced 2 port T1/E1/J1 asterisk® card with superior quality in the open source community. - Page 11 D230P/DE230P on DAHDI User Manual and VoIP gateway applications. Target Applications Voice-over Internet Protocol (VoIP) Services Complex IVR Trees "Meet-Me" Bridge Conferencing Calling Card Platforms VoIP Gateways (support SIP, H.323, and IAX) Legacy PBX/IVR Services ...
-
Page 12: Chapter 2 Hardware Setup
D230P/DE230P on DAHDI User Manual Chapter 2 Hardware Setup There are some points that should be paid attention to when setting up D230P/DE230P. 2.1 Span type setup Each DIP switch controls one span configuration for E1 or T1.Setting DIP1 to ON means SPAN1 will be E1.Setting DIP1 to OFF means SPAN1 will be T1. -
Page 13: Slot Compatibility
2.3 Slot compatibility D230P/DE2230P is compatible with 32-bit 5.0V PCI slot, 64-bit 3.3V PCI slot or 64-bit 5.0V PCI slot except PCI-E slot; you should confirm your slot type and insert D230P/DE2230P into any type of PCI slot as previously described. ×... - Page 14 D230P/DE230P on DAHDI User Manual big problems. Data loss will cause communication broken or fax broken. Timing cable will force all cards to work at the same clock source, send data at the same speed, as a result no data will lost.
-
Page 15: Chapter 3 Software Installation And Configuration
D230P/DE230P on DAHDI User Manual Chapter 3 Software Installation and Configuration D230P/DE230P supports DAHDI software driver on Linux. To make full D230P/DE230P, you should download, compile, install and configure Libpri, DAHDI and Asterisk. 3.1 Download DAHDI software packages are available on OpenVox official website or Digium. -
Page 16: Installation
D230P/DE230P on DAHDI User Manual generally, the former three below are used for downloading these three packages and the later three are for unzipping them. #_wget_http://downloads.openvox.cn/pub/drivers/da hdi-linux-complete/openvox_dahdi-linux-complete-c urrent.tar.gz #_wget_http://downloads.asterisk.org/pub/telephon y/asterisk/releases/asterisk-1.8.5.0.tar.gz #_wget_http://downloads.asterisk.org/pub/telephon y/libpri/releases/libpri-1.4.11.5.tar.gztibpri-1. 4.12.tar.gz #_tar_-xvzf_openvox_dahdi-linux-complete-current. tar.gz # tar –xvzf asterisk-1.8.5.0.tar.gz # tar –zxvf libpri-1.4.11.5.tar.gz 3.2 Installation... - Page 17 Region 0: Memory at dcdf8000 (32-bit, non-prefetchable) [size=32K] Figure 3 Hardware detection If D230P/DE230P is not recognized by the system, you have to power off and take out the card, then try to insert it into other PCI slot. 2. Software installation Some dependencies are crucial.
- Page 18 D230P/DE230P on DAHDI User Manual # yum install zlib-devel # yum install openssl # yum install openssl-devel # yum install gnutls-devel # yum install gcc # yum install gcc-c++ # yum install libxml2 # yum install libxml2-devel If there is no kernel-devel source in the system, users...
- Page 19 D230P/DE230P on DAHDI User Manual Among libpri, DAHDI and Asterisk, let’s install libpri firstly. Please execute those commands under the directory of /usr/src/ in generally: # cd libpri-XX # make # make install Then change to the directory of dahdi-linux-complete-XX (XX represents DAHDI version), then perform commands one by one to install DAHDI.
-
Page 20: Configuration
D230P/DE230P on DAHDI User Manual # cd asterisk-1.8.5.0 # ./configure # make # make install # make samples "make samples" will install the standard sample configuration file in the directory /etc/asterisk. As a freshman, you should perform make samples, that is to say, it is unnecessary to perform make samples every time. - Page 21 D230P/DE230P on DAHDI User Manual If there is any error, please trace the cause. Until all errors are clear up, you could execute "dahdi_genconf" again, and then go to the next step. By running "dahdi_genconf", it will generate /etc/dahdi/system.conf and etc/asterisk/dahdi-channels.conf automatically.
- Page 22 D230P/DE230P on DAHDI User Manual 2. Country mode modification In order to match your country pattern, you need to change parameters loadzone and defaultzone to your country. For example, your system is in CHINA, you would like them change to:...
- Page 23 D230P/DE230P on DAHDI User Manual ; Span 1: TE2/0/1 "T2XXP (PCI) Card 0 Span 1" (MASTER) group=0,11 context=from-pstn switchtype = euroisdn signalling = pri_cpe channel => 1-15,17-31 context = default group = 63 ; Span 2: TE2/0/2 "T2XXP (PCI) Card 0 Span 2"...
- Page 24 D230P/DE230P on DAHDI User Manual [root@localhost ~]# dahdi_cfg -v DAHDI Tools Version - 2.6.1 DAHDI Version: 2.6.1 Echo Canceller(s): Configuration ====================== SPAN 1: CCS/HDB3 Build-out: 0 db (CSU)/0-133 feet (DSX-1) SPAN 2: CCS/HDB3 Build-out: 0 db (CSU)/0-133 feet (DSX-1) 62 channels to configure.
- Page 25 D230P/DE230P on DAHDI User Manual 3. Asterisk initiation # asterisk –vvvvvvvgc If asterisk is already activate, run "asterisk –r" instead. In the CLI, please run the following command: localhost*CLI> dahdi show channels from-pstn default In Service from-pstn default In Service...
- Page 26 Additional function Users should run command "cat /proc/interrupts" to check D230P/DE230P has independent interrupt. If it shares interrupt with other device, it may cause some problems even cannot work normally. While D230P/DE230P allows users to modify interrupt pin during firmware upgrade for avoiding conflict.
-
Page 27: Chapter 4 Reference
D230P/DE230P on DAHDI User Manual Chapter 4 Reference www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com Tips Any questions during installation, please consult in our forum or look up for answers from the following websites: Forum wiki OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 28: Appendix A Specifications
D230P/DE230P on DAHDI User Manual Appendix A Specifications • Weight and size Weight: D230P EC2032 Size: 2U Form Factor: 12× 6.4×1.8cm • Interfaces PCI Bus: 3.3V or 5V bus slot, PCI 2.2 or above • Environments Temperature Operation: 0 ~50° C... -
Page 29: Appendix B Hardware Dissembling Figure
D230P/DE230P on DAHDI User Manual Appendix B Hardware Dissembling Figure You can refer to the following figure to assemble or dissemble D230P/DE230P, since they are very similar. T1/E1 Interface Daughterboard Optional with 1/2/4 Ports Octasic® Echo Cancellation DSP Module PCI-E Mainboard... -
Page 30: Appendix C Jumper And Switch Settings
D230P/DE230P on DAHDI User Manual Appendix C Jumper and Switch Settings Shorten the jumper will open clock line otherwise will not If there is only one card in PCI slot,CardID switch should be set to 0,otherwise set to different values of each card by order.
