- Page 1 A400M on DAHDI User Manual OpenVox Communication Co.Ltd A400M on DAHDI User Manual Version: 2.2 OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 2 Address: Room 624, 6/F, Tsinghua Information Port, Book Building, Qingxiang Road, Longhua Street, Longhua District, Shenzhen, Guangdong, China 518109 Tel: +86-755-66630978,82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 3 A400M on DAHDI User Manual Copyright © Copyright 2011 OpenVox Inc. All rights reserved. No part of this document may be reproduced without prior written permission. Confidentiality Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc.
-
Page 4: Table Of Contents
Chapter 3 Software Installation and Configuration ..........12 3.1 Download ......................12 3.2 Installation....................... 13 3.3 Configuration ....................17 Chapter 4 Reference ....................24 Appendix A Specifications ..................25 Appendix B PIN Assignments ................... 26 OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 5: General Safety Instructions
6. To reduce the risk of damage or injury, please follow all steps or procedures as instructed. OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 6: Test Environments
A400M on DAHDI User Manual Test Environments CentOS-5.6 Kernel version: 2.6.18-238.12.1.el5 DAHDI: dahdi-linux-complete-current Asterisk: 1.8.0 Hardware: OpenVox A400M OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 7: Chapter 1 Overview
Zaptel,Bristuff,Misdn and ISDN4BSD Protocol SIP, IAX, SS7, MGCP, H323, R2 and more.. Applications IVR, CRM, FAX, E-mail, CallCenter, Billing and your application.. Asterisk SIP phone Switch VOIP PBX Analog phone PC+Softphone Figure 1 Topology OpenVox Communication Co. LTD. URL: www.openvox.cn... -

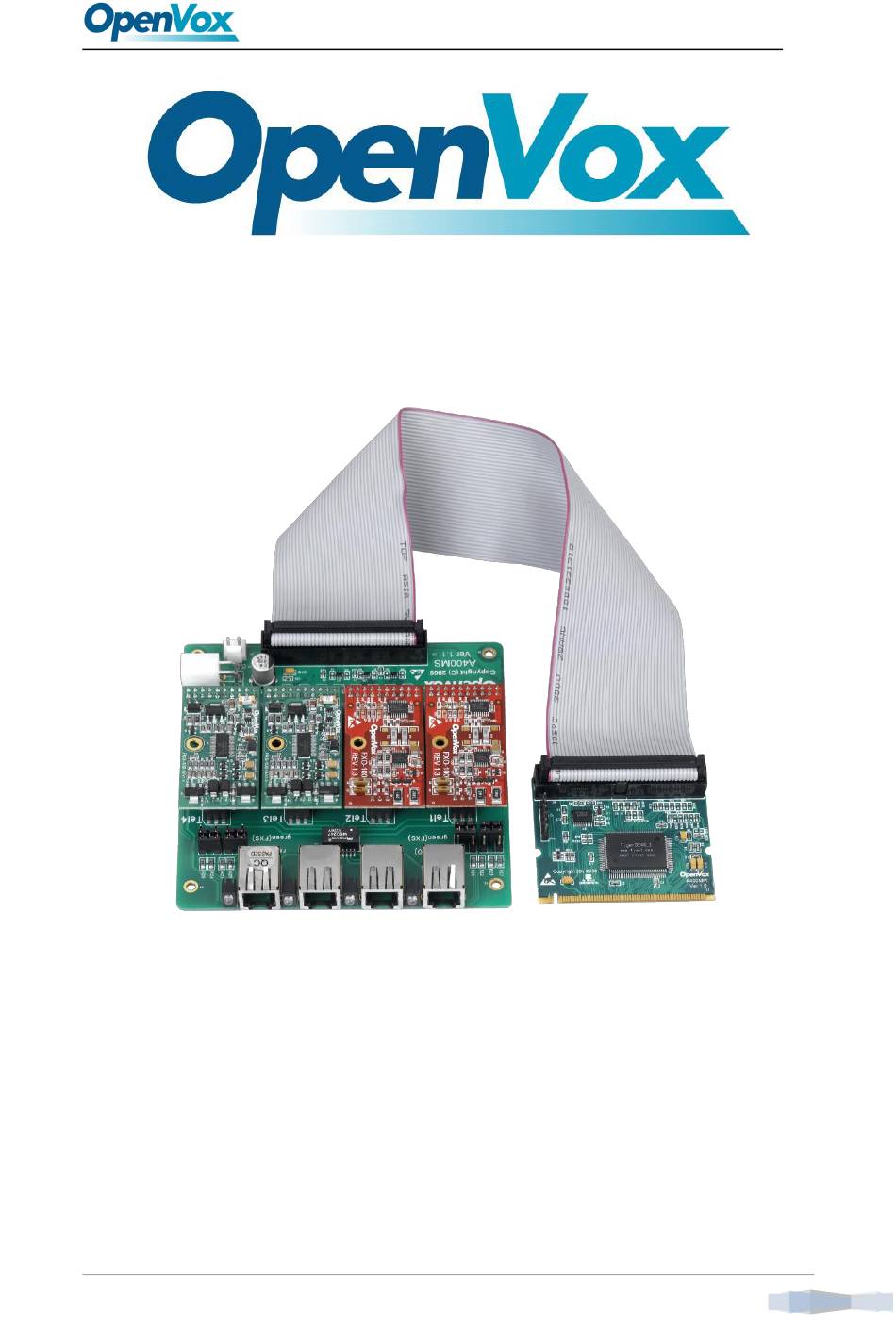

Page 8: What Is A400M
A400M on DAHDI User Manual 1.2 What is A400M OpenVox A400M delivers great voice quality in the telephony systems. With interchangeable FXS/FXO modules, it can eliminate the requirements for separate channel banks or access gateways. The A400M consists of two parts: the A400MM and the A400MS. The A400MM connects Mini PCI slot while the A400MS installs FXS/FXO modules. - Page 9 ➢ Support AskoziaPBX system ➢ Support VIA, PC Engines motherboard and AMD geode based motherboard ➢ Support trixbox, Elastix and other based Asterisk distributions ➢ Support GPL Software driver used with zapte and DAHDI OpenVox Communication Co. LTD. URL: www.openvox.cn...
-
Page 10: Chapter 2 Hardware Setup
Data loss will cause communication broken or fax broken. Timing cable will force all cards to work at the same clock source, send data at the same speed, as a result no data will lost. OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 11: Fxo And Fxs Modules
➢ Put timing cable correctly if necessary, for more details, please refer HERE ➢ Please plug PSTN lines into FXO ports and extension telephone lines into FXS ports before you have detected your PSTN line works well. OpenVox Communication Co. LTD. URL: www.openvox.cn... - Page 12 Do not forget to connect PSTN lines into analog phones directly to make sure the lines and phones are available before insert the PSTN lines into FXO ports. After hard ware setup, it is time to install software. OpenVox Communication Co. LTD. URL: www.openvox.cn...
-
Page 13: Chapter 3 Software Installation And Configuration
A400M, you should download, compile, install and configure DAHDI and Asterisk. 3.1 Download DAHDI software packages are available on OpenVox official website or Digium. Some patches should be made while the driver source is from Digium, therefore, it is recommended that downloading the DAHDI driver package from OpenVox official website. -
Page 14: Installation
3.2 Installation 1. Hardware detection # lspci –vvvv Check the outcome and confirm your system has recognized A400M. If it has been recognized, "Network controller" will be displayed in the output information like that: OpenVox Communication Co. LTD. URL: www.openvox.cn... - Page 15 Let’s run "yum install XX" (XX stands for the dependency’s name) to check the availability of dependencies. # yum install bison # yum install bison-devel # yum install ncurses OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 16 After installed, please reboot your machine to apply the new kernel and install the dependencies. If the dependency has been installed, system indicates that nothing to do which means you could go to next one OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 17 After patching, save your changes and exit. Then run "make" again, if successfully, you are going to install Asterisk. Please operate those commands to install Asterisk. # cd asterisk-1.8.0 # ./configure # make OpenVox Communication Co. LTD. URL: www.openvox.cn...
-
Page 18: Configuration
After compiling and installing DAHDI and Asterisk, please load the driver by running: # modprobe dahdi # modprobe wctdm opermode=CHINA # dahdi_genconf After running "modprobe dahdi" or "modprobe wctdm opermode=CHINA", there is not any indication information displayed if loaded normally and successfully. OpenVox Communication Co. LTD. URL: www.openvox.cn... - Page 19 # echo "#include dahdi-channels.conf" >> /etc/asterisk/chan_dahdi.conf FXO ports use FXS signaling, while FXS ports adopt FXO signaling. A part of system.conf which is one of the basic channel configuration files is displayed. OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 20 .. /dahdi-XX/tools/zonedata.c, you can refer to it to match your country mode. Meanwhile, you also need to modify another parameter which is in file /etc/asterisk/indications.conf. country=cn A part of file /etc/asterisk/dahdi-channels.conf is showed as below. OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 21 => 3 callerid= group= context=default ;;; line="4 WCTDM/4/3 FXSKS" signalling=fxs_ks callerid=asreceived group=0 context=from-pstn channel => 4 callerid= group= context=default Figure 5 A part of dahdi-channels.conf After modifying the country mode, please execute the following OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 22 Setting echocan for channel 4 to none Figure 6 Channel map 3. Asterisk initiation # asterisk -vvvvvgc If Asterisk is already activate, run "asterisk –r" instead. In the CLI, please run the following command: localhost*CLI> dahdi show channels OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 23 You should write the destination number instead of the outgoing_number in the above dial plan. The dialplan achieves that when an extension telephone dials 200, Asterisk will transfer through channel 3 to the external OpenVox Communication Co. LTD. URL: www.openvox.cn...
- Page 24 While a call comes from PSTN line, Asterisk answers firstly, and then gets through to the extension set which connects channel 1. After saving your dialplan, please run "asterisk –r", then execute "reload" in the CLI. Next you are able to make calls. OpenVox Communication Co. LTD. URL: www.openvox.cn...
-
Page 25: Chapter 4 Reference
A400M on DAHDI User Manual Chapter 4 Reference www.openvox.cn www.digium.com www.asterisk.org www.voip-info.org www.asteriskguru.com Tips Any questions during installation, please consult in our forum or look up for answers from the following websites: Forum wiki OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 26: Appendix A Specifications
- 40 ~125° C (Storage) Humidity: 10 ~90% NON-CONDENSING • Power consumption Power: 1.8W Minimum, 11.6W Maximum • Hardware and software requirements RAM 128 + MB CPU 800+ MHZ Linux kernel 2.4.X or 2.6.X OpenVox Communication Co. LTD. URL: www.openvox.cn... -
Page 27: Appendix Bpin Assignments
RJ11 port by the following tables. 4-pin RJ11 port 4-pin RJ11 port Description Not used Ring Not used 6-pin RJ11 port 6-pin RJ11 port Description Not used Not used Ring Not used Not used OpenVox Communication Co. LTD. URL: www.openvox.cn...
