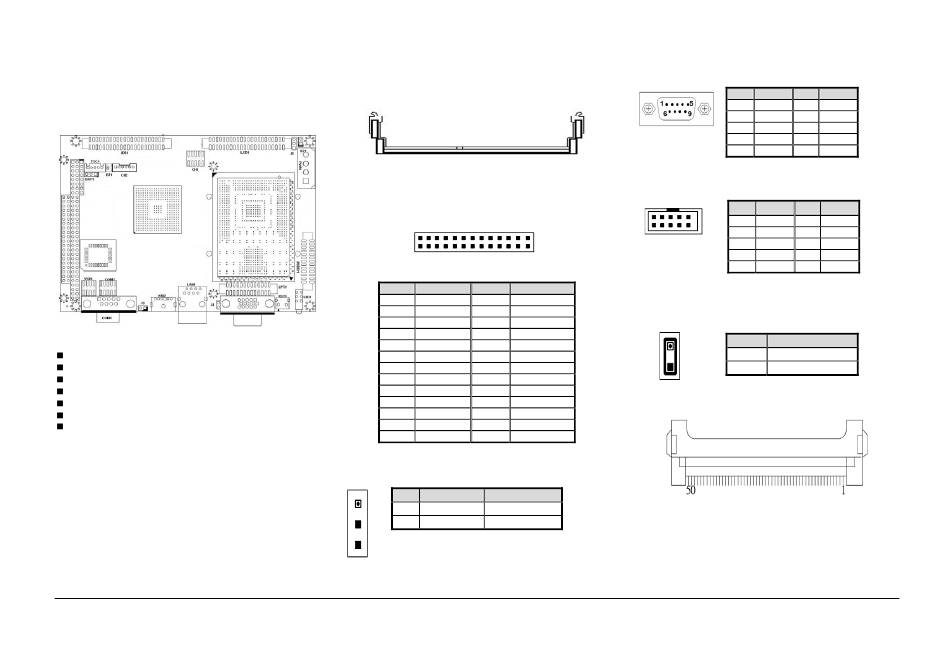

1. SETTING UP THE SYSTEM
1.1 PACKING LIST
The quick setup manual
1 AR-B1653 CPU board
1 AR-B9425A-G SB Transfer (Option)
1 AR-B9425A-G Audio cable (Option)
2 USB port on one bracket cable (Option)
1 44Pin Hard disk adapter (Option)
1 PS/2 Mouse & Keyboard interface Y-Cable
Page 1 of 3
All manuals and user guides at all-guides.com
1.2 SDRAM SOCKET 144 PIN (DIMM1)
144 pin SO-DIMM
1.3 AUDIO CONNECTOR (AUDIO1)
2 26
25
1
Pin Signal Pin
1 CD_L 2
3 CD_R 4 LINEINR
5 +12V 6
7 LINEOUTL 8
9 LINEOUTR 10 PC_BEEP
11 GND 12
13 Not Used 14 Not Used
15 GND 16
17 Not Used 18 Not Used
19 Not Used 20 Not Used
21 Not Used 22 Not Used
23 Not Used 24 Not Used
25 GND 26
1.4 LCD VOLTAGE SELECT (J1)
PIN Indication Note
1
Factory preset
1-2 +3.3V
2 2-3 +5V
3
1.5 COM1 SERIAL PORT (COM1)
1.6 COM2 SERIAL PORT (COM2)
9 1
10 2
Signal
LINEINL
1.7 EXTERNAL BUZZER (BZ1)
+5V
MIC1
1
GND
2
GND
1.8 COMPACT FLASH CONNECTOR (CF1)
GND
AR-B1653 Manual
PIN Signal PIN Signal
1 /DCD1 2 RXD1
3 TXD1 4 /DTR1
5 GND 6 /DSR1
7 /RTS1 8 /CTS1
9 /RI1 10 GND
PIN Signal PIN Signal
1 /DCD2 2 /DSR2
3 RXD2 4 /RTS2
5 TXD2 6 /CTS2
7 /DTR2 8 /RI2
9 GND 10 GND
PIN Signal
1 +
2 -
Part No：220010340-G
