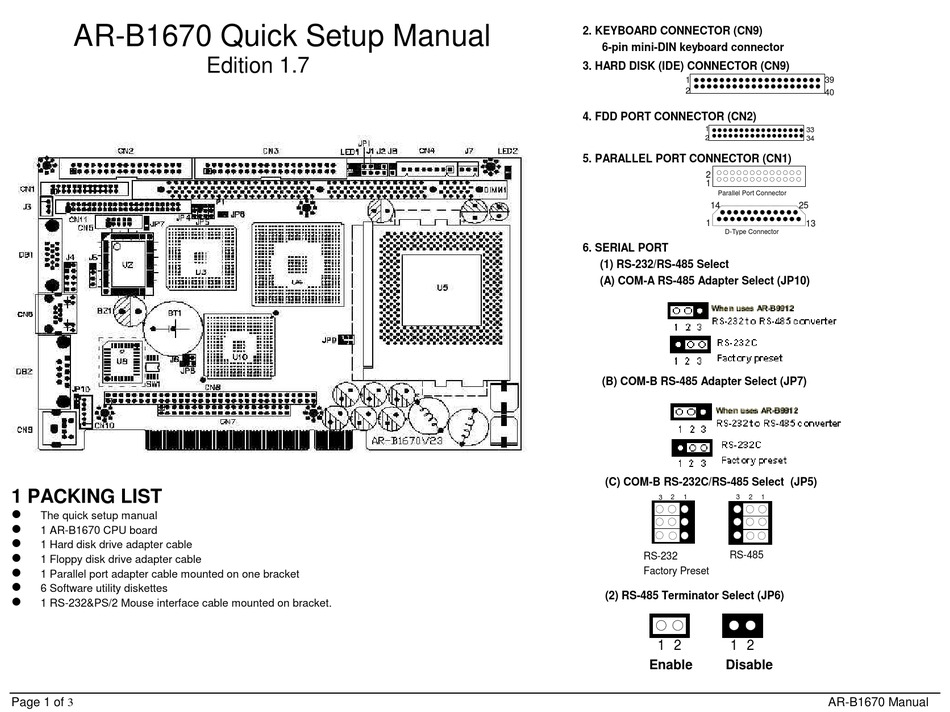

AR-B1670 Quick Setup Manual
1 PACKING LIST
!
The quick setup manual
!
1 AR-B1670 CPU board
!
1 Hard disk drive adapter cable
!
1 Floppy disk drive adapter cable
!
1 Parallel port adapter cable mounted on one bracket
!
6 Software utility diskettes
!
1 RS-232&PS/2 Mouse interface cable mounted on bracket.
Page 1 of 3
Edition 1.7
2. KEYBOARD CONNECTOR (CN9)
6-pin mini-DIN keyboard connector
3. HARD DISK (IDE) CONNECTOR (CN9)
1
2
4. FDD PORT CONNECTOR (CN2)
1
2
5. PARALLEL PORT CONNECTOR (CN1)
2
1
Parallel Port Connector
14
1
D-Type Connector
6. SERIAL PORT
(1) RS-232/RS-485 Select
(A) COM-A RS-485 Adapter Select (JP10)
(B) COM-B RS-485 Adapter Select (JP7)
(C) COM-B RS-232C/RS-485 Select (JP5)
3
2
1
3
2
1
RS-485
RS-232
Factory Preset
(2) RS-485 Terminator Select (JP6)
1 2
1 2
Enable
Disable
39
40
33
34
25
13
AR-B1670 Manual
