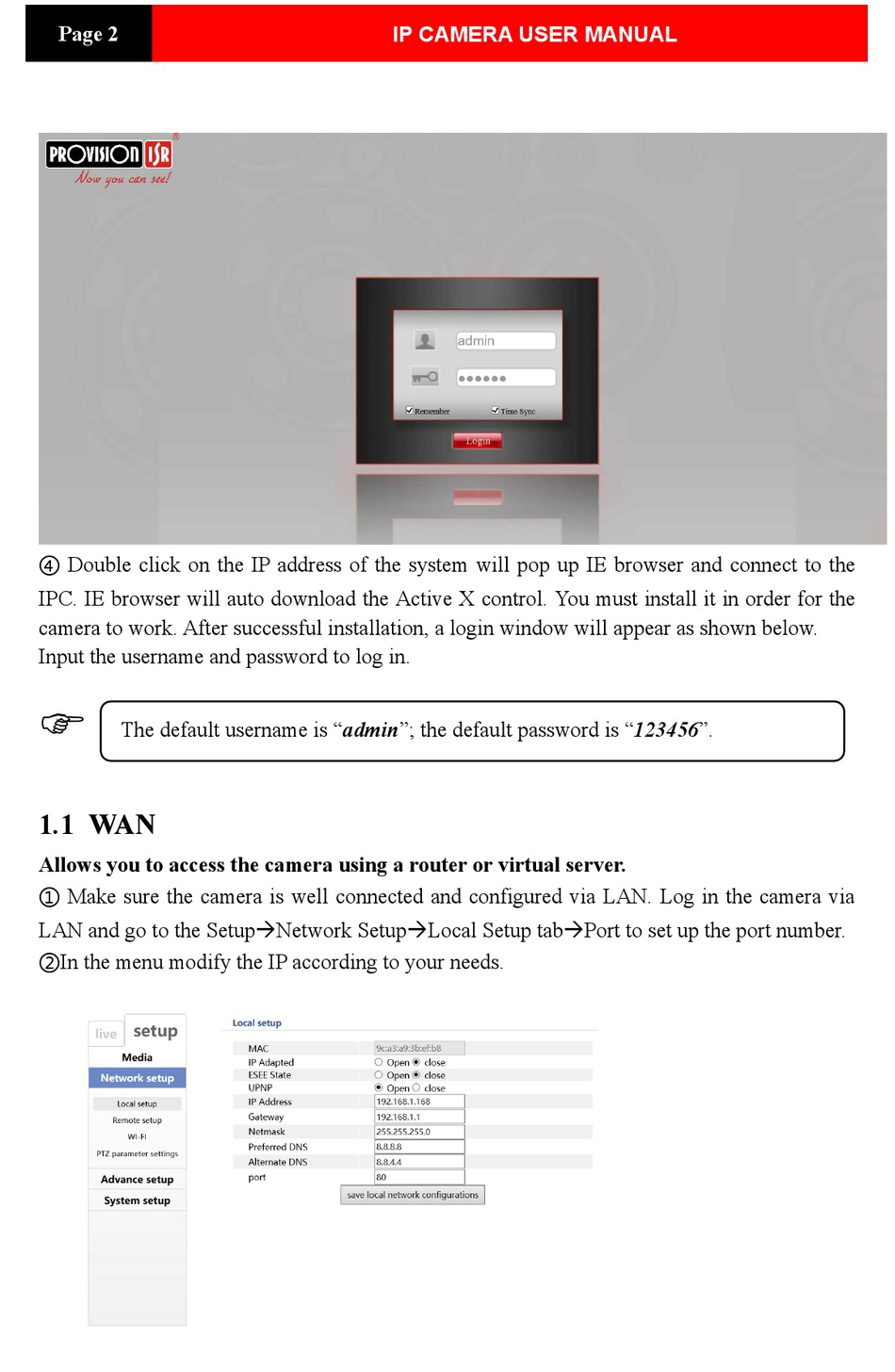

Provision ISR I3-330WIP536 User Manual page 4

Page 2
IP CAMERA USER MANUAL
④ Double click on the IP address of the system will pop up IE browser and connect to the
IPC. IE browser will auto download the Active X control. You must install it in order for the
camera to work. After successful installation, a login window will appear as shown below.
Input the username and password to log in.

The default username is "admin"; the default password is "123456".
1.1 WAN
Allows you to access the camera using a router or virtual server.
① Make sure the camera is well connected and configured via LAN. Log in the camera via
LAN and go to the SetupNetwork SetupLocal Setup tabPort to set up the port number.
②In the menu modify the IP according to your needs.
