  • Page 2 MZ-10A-2(IR) User Manual Package Contents: Item Qty. MZ-10A-2(IR) Wall Bracket 12V2A DC power supply Wall Screws PM8*25 socket head screws Allan Key...

  • Page 3: Table Of Contents

    MZ-10A-2(IR) User Manual Table of Contents: 1 General Instructions: ..............2 1.1 Safety Instructions: ................2 1.2 Warnings: ..................2 2 Features: ..................4 2.1 Product Picture: ................4 2.2 Product Features ................4 2.3 Specifications: ................5-6 2.4 Product dimension...............7 3 Installation Site Preparations: .............

  • Page 4: General Instructions

    MZ-10A-2(IR) User Manual 1. General Instructions: 1.1 Safety Instructions: Make sure to read the user manual before using the camera.  Always follow national and local safety codes during the installation.  Only qualified and experienced person can carry the installation and ...

  • Page 5: Features

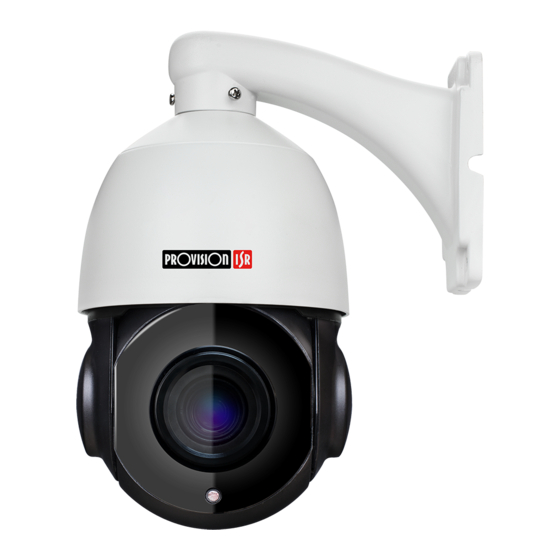

    MZ-10A-2(IR) User Manual 2 Features: 2.1 Product Picture 2.2 Product Features Features: Preset speed of 200°/Sec (max)  Preset accuracy up to 0.1°  Endless Pan Rotation 360°&continuously tilt with Auto flip 180°  Preset position, tour, pattern and auto scan ...

  • Page 6: Specifications

    MZ-10A-2(IR) User Manual 2.3 Specifications:...
  • Page 7 MZ-10A-2(IR) User Manual...

  • Page 8: Product Dimension

    MZ-10A-2(IR) User Manual 2.4 Product Dimension: Note: Ceiling Mount Bracket isn’t included in the package.

  • Page 9: Installation Site Preparations

    MZ-10A-2(IR) User Manual 3 Installation Site Preparations: 3.1 Tool List: (1) Screws* (2) Monkey wrench (3) Philips screwdriver (4) Straight Screwdriver (5) Wire stripper (6) Socket head wrench (7) Electric drill (8) Hammer (9) BNC connector (10) BNC Clamp *Included in the kit 3.2 Installation Preparation: (1) Check the space and toughness of the site and make sure that the environmental conditions meet the installation requirements for this product.

  • Page 10: Output Mode Setting

    MZ-10A-2(IR) User Manual 3.4 Output Mode Setting: (1) Default Settings: AHD , PAL system This output can be changed via the controller (Even if the user cannot gain a video output from the unit due to output incompatibility) (2) Set your controller/DVR PTZ Settings to the Camera’s Default Communication Settings: Protocol: CoC / PELCO-D, address: 1 (Unless user changed it by the DIP switch configuration), baud rate: 2400.
  • Page 11 MZ-10A-2(IR) User Manual The Main menu as follows: Main Menu System Information System Setting IR LED Setting Reset EXIT IN:Iris+ OUT:Iris- 4.3 SYSTEM Information: <Main Menu> 4.3.1 < System Information> PROTOCOL Pelco-D BAUD RATE AUTO HARD ADDR SOFT ADDR VERSION 19030704 EXIT The user can check the dome system information as required.
  • Page 12 MZ-10A-2(IR) User Manual 4.3.2 SYSTEM SETTING SYSTEM SETTING CAMERA MOVEMENT CONTROL PRESET TOUR TRARK PATTERN EXIT 4.3.2.1 CAMERA CAMERA SCREEN TIPS ON/OFF AUTO ICR ON/OFF AUTO FOCUS ON/OFF FOCUS SPEED FAST/SLOW ZOOM SPEED FAST/SLOW EXIT 4.3.2.2 MOVEMENT CONTROL MOVEMENT CONTROL AUTO FLIP: ON/OFF PROPORTION...
  • Page 13 MZ-10A-2(IR) User Manual AUTO FLIP: When the camera tilts downward and goes just beyond the vertical position, the camera will rotate 180 degrees. The user can press IRIS OPEN to enter and choose to turn on/off this function. 4.3.2.3 PRESET PRESET NUMBER: 1 （1-220）...
  • Page 14 MZ-10A-2(IR) User Manual 4.3.2.4 TOUR No. PRE SPD TIME TOUR 01 001 NUMBER 1(1-4) 02 002 EDIT 03 003 04 004 REMOVE 05 005 EXIT 06 006 The dome camera will run repeatedly as the given sequence of presets at certain dwell time by one command.
  • Page 15 MZ-10A-2(IR) User Manual PATTERN NO.: Move the cursor here and press IRIS OPEN to enter the setup of Pattern Number. Move the joystick to select a pattern number (14) and press IRIS OPEN to confirm. RUN: Move the cursor here and press IRIS OPEN to start the current pattern tour.

  • Page 16: Advanced Camera Menu

    MZ-10A-2(IR) User Manual IR LED forcedly close IR LED status (Open/Close) will be synchronized with CAMERA Camera day and night switching 4.5 Advanced Camera Menu: For advanced Menu, Call preset #69. PLEASE NOTE: Scrolling and changing values in the advanced menu is done with different controls: The controller joystick has effect.
  • Page 17 MZ-10A-2(IR) User Manual OSD-DISP D&N AUTO/B&W/Color/EXT MIRROR OFF/Flip/UD/LR BRIGHTNESS 00-31 ON/OFF/AUTO SHARPNESS 1-50 OUTPUT FORMAT 1080/25 00-31 CONTRAST 00-31 ZOOM 00-50 OFF/ON FOCUS MF/AF Z-SAVE OFF/ON F-SAVE OFF/ON F-RANGE 1.3M/1.8M/3.8M/10M RESET SAVE-EXIT <OSD-DISP >: Do Not Change  <D&N>: Do Not Change ...

  • Page 18: Appendix I: Dip Switch Setting

    MZ-10A-2(IR) User Manual <CONTRAST>: Changing the contrast value.  <ZOOM>: Do Not Change.  <BLC>: switching OFF/ON.  <FOCUS>: Do Not Change  <Z-RANGE >: Do Not Change  <F-RANGE >: Do Not Change  <RESET >: Reset All settings to factory Default ...
  • Page 19 MZ-10A-2(IR) User Manual … … … … … … … … …...

  • Page 20: Appendix Ii Shortcuts Key Chart

    MZ-10A-2(IR) User Manual APPENDIX II Shortcuts Key Chart: AHD/TVI/CVBS Command Shortcut Key Function (Set Preset) Set #84preset Proportional P/T OFF Set #85preset,Call Call the preset number of the desired video type signal: CVBS N is address Set # 87preset Set camera ID (N 1 2 3 254) Set # 89preset...
  • Page 21 MZ-10A-2(IR) User Manual Set #99 preset scan and tour scan speed is automatic Set #100 preset scan and tour scan speed is high, 15°/sec Set #101preset scan and tour scan speed is middle, 10°/sec Set #102preset scan and tour scan speed is low, 5°/sec Set #103 preset Record Pattern scan 1 Set #104 preset...
  • Page 22 MZ-10A-2(IR) User Manual Call #68preset Change system to NTSC Call #69 preset Open Advanced Settings menu Call #70 preset Preset Error Correction Call #71 preset Proportional P/T ON Call #72 preset Start Cruise scan and switch the cruise scan direction Call #73 preset Start Pattern 1 Call #74 preset...
  • Page 23 MZ-10A-2(IR) User Manual CVI Command Shortcut Key Function (Set Preset) Set #50preset,Call Set output model CVBS Set #51preset Proportional P/T OFF N is address Set # 52preset Set camera ID (N+1 2 3 254) Set # 54preset Delete all presets Set #55 preset Restore Factory Setting Set #56 preset...
  • Page 24 MZ-10A-2(IR) User Manual Set #65preset the preset-dwell: 10S Shortcut key Function (Call preset) Call #50preset Camera IR-CUT switch Call #51preset Call all valid presets cruise Call #52preset Open main menu (Same response as “Set”) Call #53 preset Open Advanced Settings menu Call #54 preset Preset Error Correction Call #55 preset...

  • Page 25: Appendix Iii Trouble Shooting

    MZ-10A-2(IR) User Manual APPENDIX III Trouble Shooting Troubles Reason Solution 1. The power supply is not 1. Correct the connection. No action when connected correctly. 2. Check the power supply LED power on 2. The fuse is broken. power indicator. 3.
