Connection Diagram - F&F AZH-MINI-LED Quick Start Manual

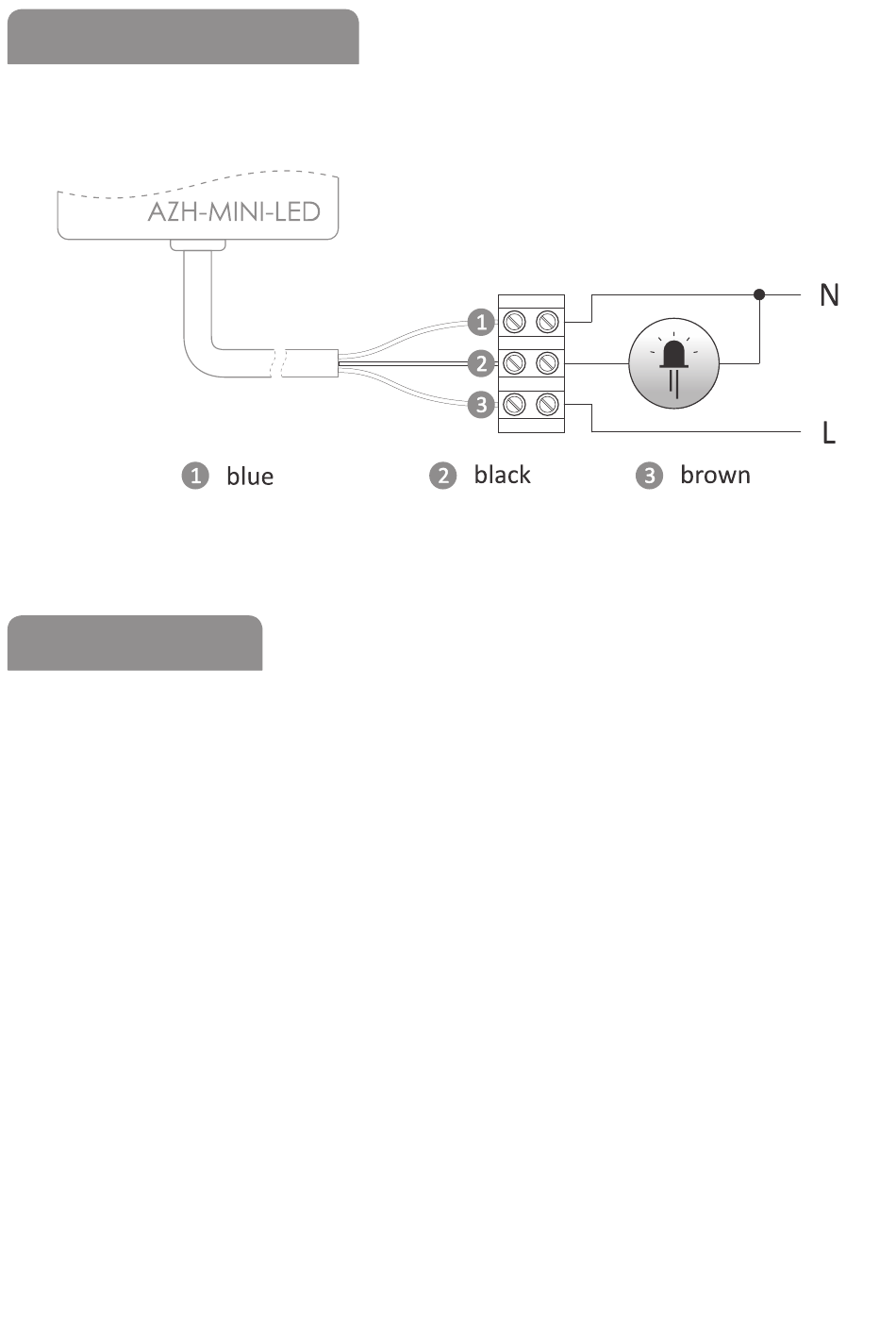

Connection diagram

Technical data
power supply
maximum load current (AC-1)
switch-on threshold (adjustable)
hysteresis
on delay
off delay
resistance to current shocks
power consumption
terminal
working temperature
dimensions
mounting
protection level
OMY 2×1 mm², l= 0.8 m
- 4 -
165÷265 V AC
2÷1000 lx
approx. 15 lx
approx. 10 s
approx. 20 s
120 A/20 ms
0.6 W
-25÷50°C
42×64×30 mm
surface-mounted
16 A
IP65
