HTP5-4-88
Thank you for purchasing Happy Trails products. Our products are proudly hand made in Boise
Idaho, USA. If you have any questions or concerns about the installation of this product, please con-
tact us directly at 1-800-444-8770 or e-mail installation@happy-trail.com.
Before you begin, place the bike on a hard level surface where you have room to work. Lay out the
parts included in this kit and compare to the parts list on the final of these instructions. If any parts
or hardware are missing, contact us immediately at the number or email listed above.

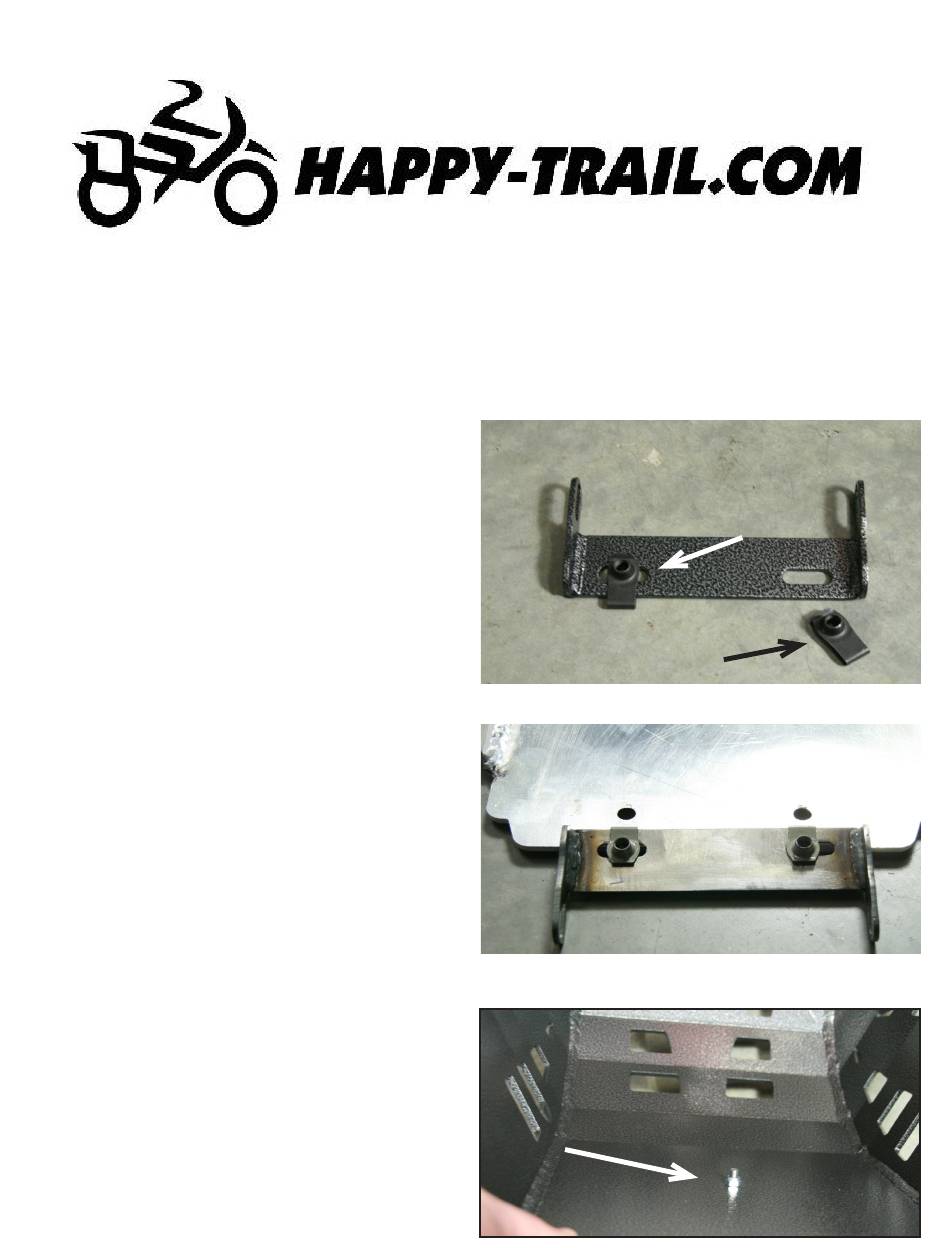

Step 1
Begin by removing the factory skid plate from the bike.
Install two threaded "Speed clips" onto the rear mounting
bracket as shown in Fig 1.
Step 2
Bolt the rear mounting bracket onto the two holes at
the rear edge of the skid plate using two M825T bolts.
Leave these bolts loose to allow easier fitment of the
skid plate.
Step 3
Insert an M616T bolt through the countersunk hole at
the center of the skid plate. Thread the M6N nut onto
the bolt and tighten it to 9ft/lbs.
KTM950/990 SKID PLATE
Fig1
Fig 2
Fig 3

Advertisement

loading
Need help?

Need help?

Do you have a question about the KTM950 and is the answer not in the manual?

Questions and answers

Summary of Contents for Happy Trails KTM950

  • Page 1 HTP5-4-88 KTM950/990 SKID PLATE Thank you for purchasing Happy Trails products. Our products are proudly hand made in Boise Idaho, USA. If you have any questions or concerns about the installation of this product, please con- tact us directly at 1-800-444-8770 or e-mail installation@happy-trail.com.
  • Page 2 Step 4 Fig4 Place the rubber insulator onto the bolt installed in Step 3. The bolt is installed to center the rubber insula- tor. It is held in place by pressure between the skid plate and engine case. Step 5 Fig 5 Slide the rear mounting bracket in position at the rear of the motor as shown in Step 5.
  • Page 3 Tighten these bolts to 18 ft/lbs. Step 8 Fig 8 Tighten the remaining bolts to 18 ft/lbs. Congratula- tions! You’ve successfully installed your Happy Trails KTM 950/990 Skid Plate! Recommended Tools: Hardware List: 5mm Allen Wrench...
  • Page 4 KTM950/990 Skid Plate M820S M825T M825C M825S M616T 8mm Lock 8mm FW Washer...
