Rugged Ridge 11503.90 Manual

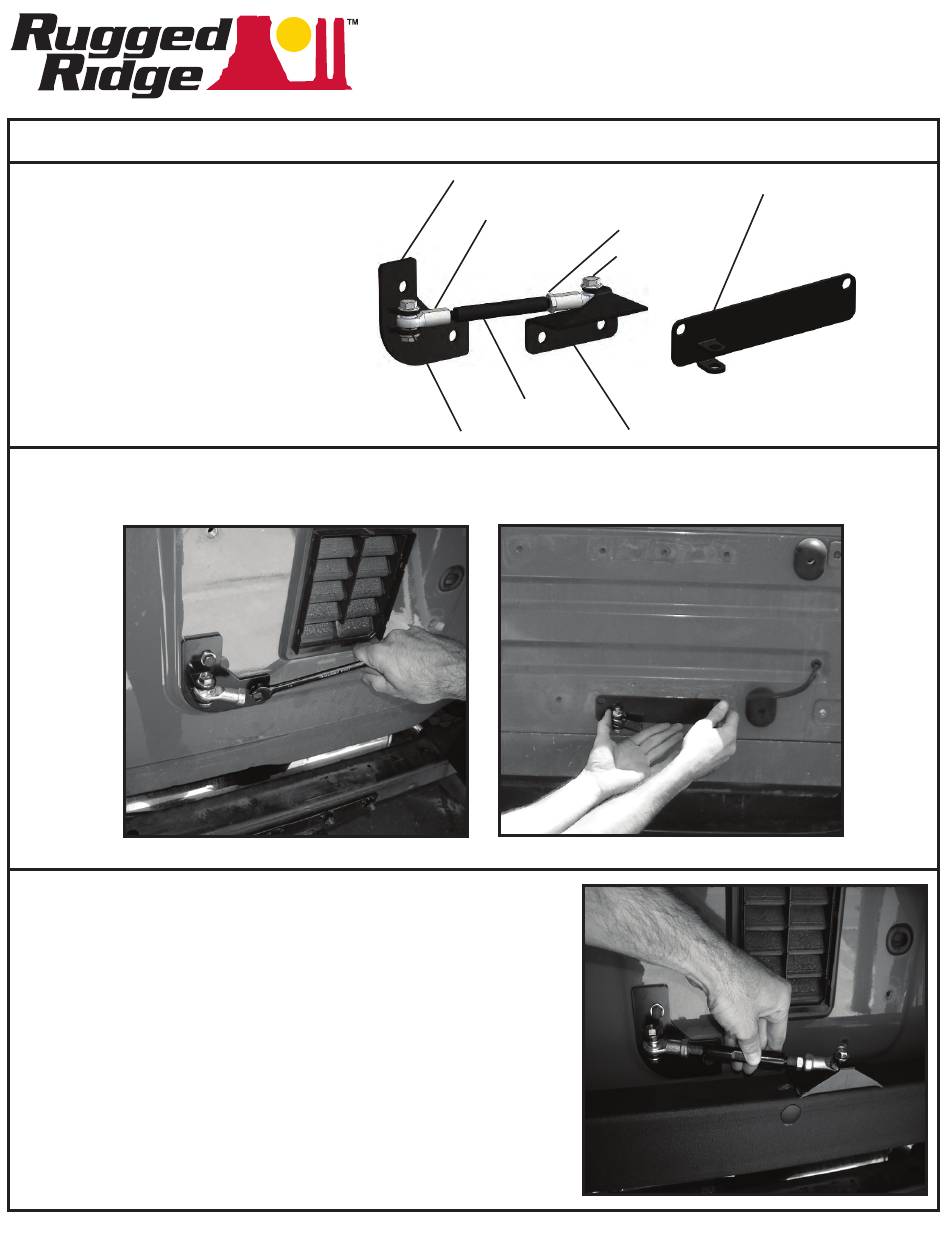

Contents:
1. Tailgate Bracket (1)
2. Tire Carrier Bracket (1)
3. Coupler (1)
4. RH Threaded Rod End (1)
5. LH Threaded Rod End (1)
6. M10 Flange Bolt (2)
7. Flat Washer (4)
7. M10 Self-Tapping Bolt (2)
8. Jam Nut (1)
1. With the factory tire carrier removed, fasten the Tailgate Bracket to the appropriate hole locations
shown below using the factory bolts. The bolts are standard sizes so if they are not available, they can
be purchased at a local hardware store. The JK bolts are M8x20 and the YJ and TJ bolts are 5/16-18.
JK TAILGATE BRACKET LOCATION
2. With the tailgate and tire carrier in the closed and latched
position, place Tire Carrier Bracket on the horizontal beam of
the A-frame tire carrier and position it to the right of the Tailgate
Bracket. Use the Coupler to connect the two Rod Ends. Note
that the ends of the Coupler have opposing threads to allow for
length adjustment. This also means that each end of the
Coupler must fasten to the appropriately threaded Rod End.
Thread the Coupler half way into each Rod End to allow room
for final adjustment later.
Tire Carrier Linkage Kit
JK Tailgate Bracket
Flat Washer
Page 1 of 3
Rod Ends
Jam Nut
Flange Bolt
Coupler
Tire Carrier Bracket
YJ/TJ TAILGATE BRACKET LOCATION
11503.90
11503.91
YJ/TJ Tailgate Bracket
