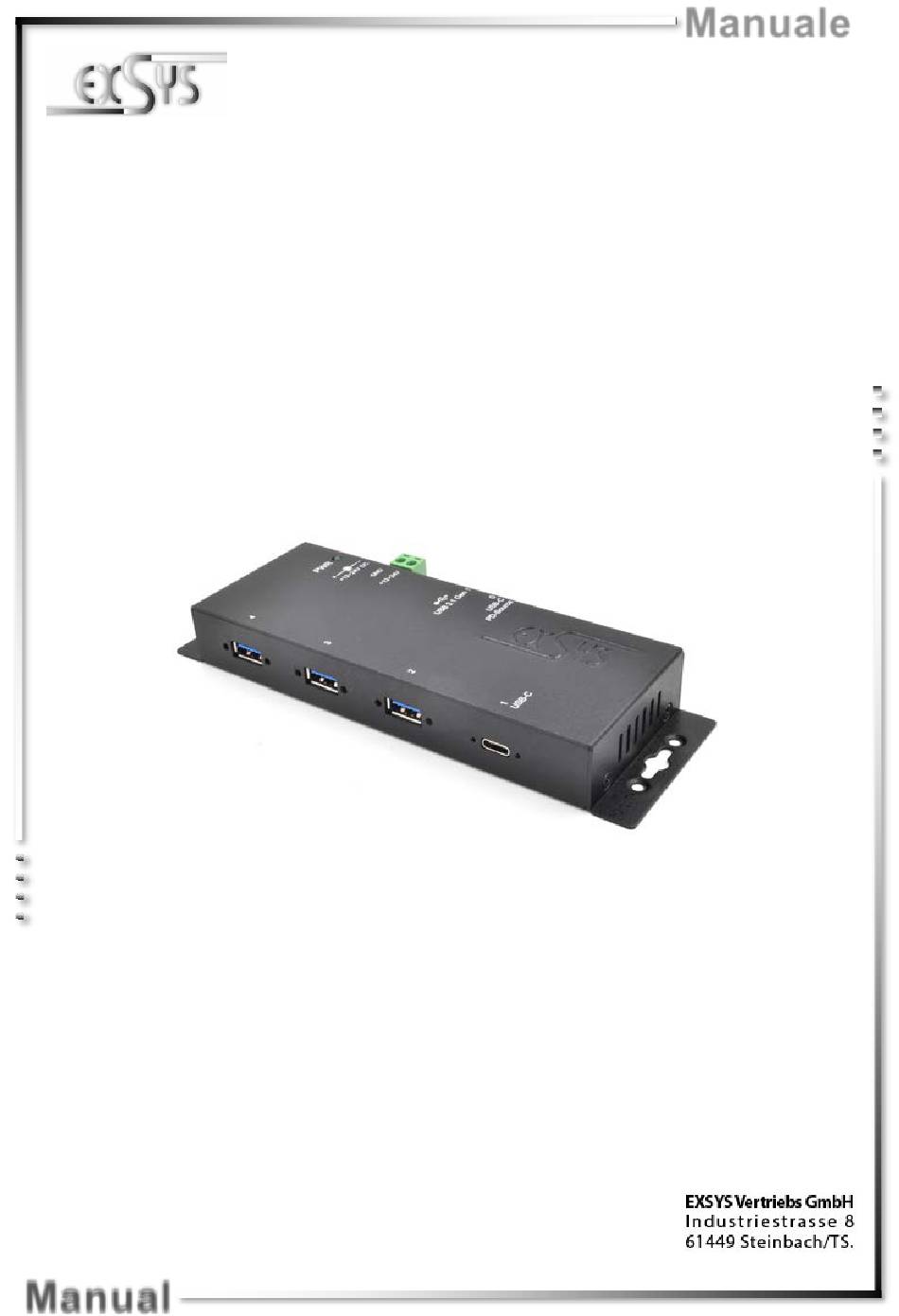

- Page 1 Manuale EX-1191HMVS-PD HUB in metallo USB 3.2 Gen 1 a 4 porte con ricarica USB PD e protezione da sovratensione ESD da 15 KV 4 Port USB 3.2 Gen 1 Metal HUB with USB PD-Chaging and 15KV ESD Surge Protection Vers.
- Page 2 Installazione Hardware Installazione Driver Pulizia Dati Tecnici Disegno Tecnico Index Description Extent of Delivery Layout & Connections 9-10 Layout Connections 9-10 Hardware Installation Driver Installation Cleaning Technical Information Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 3: Contenuto Confezione
Italiano 1. Descrizione L'EX-1191HMVS-PD è un HUB metallico USB 3.2 (Gen1) per un massimo di 4 dispositivi. L'hub è dotato di 4 porte per dispositivi terminali e 1 porta per il collegamento al PC. Supporta tutte le porte USB da 1.1 a 3.2. Ciascun collegamento dell'EX-1191HMVS-PD può anche essere avvitato. Fornendo alimentazione tramite la connessione CC o la morsettiera, è... - Page 4 Ricarica PD esterna fornitura opzionale 3.2 Attacchi T-Block +12V - 24V : ATTENZIONE!!! Non collegare mai l'alimentazione a terra (GND), questo potrebbe distruggere il tuo hardware!!! GND (Ground) +12V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 5 USB 3.2 Gen 1 Type-C: AVVISO! Grazie alla doppia assegnazione dei pin, la spina USB Type-C può essere inserita nella presa su entrambi i lati. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 6: Installazione Hardware
Nella zona dei collegamenti, assicurarsi che non rimangano fibre del panno nella presa. Non utilizzare in nessun caso un panno umido o bagnato per la pulizia! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 7: Dati Tecnici
Da -20° fino 85° Celsius Umidità Rel. : Dal 5% al 95% Alimentazione: Da +12 a +24 Volt Dimensioni: 178,60 x 59,20 x 23,20 mm Peso: 880g 8. Disegno Tecnico © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 8: Extent Of Delivery
EX-1191HMVS-PD 1. Description The EX-1191HMVS-PD is a plug & play high-speed USB 3.2 Gen 1 metal hub for 4 USB devices. The EX-1191HMVS-PD provides 4 ports for USB devices and 1 uplink port for PC. It supports all USB connections from 1.1 to 3.2. All ports can fix with screw lock. Via a external power supply it is possible to load the host PC via the USB-C upstream port and a device via the USB-C downstream port. - Page 9 Power Supply Power Supply with PD Charging 3.2 Connections +12V - 24V T-Block: ATTENTION!!! Never connect power to GND, it will destroy your Hardware!!! GND (Ground) +12V - 24V © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
- Page 10 Never plug in with force or in wrong direction. USB 3.2 Gen 1 C-Port: Note! By dual assignment of the pins, the USB-C plug can be plugged into the port on both sides. © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
-
Page 11: Hardware Installation
For cleaning please use only a dry fluff less cloth and remove the dirt with gently pressure. In the area of the connectors please make sure that no fibres from the cloth remain in the connectors. Attention! Never use a moist or wet cloth for cleaning! © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved... -
Page 12: Technical Information
32°F to 131°Fahrenheit Storage Temperature: -40°F to 185°Fahrenheit Rel. Humidity: 5% to 95% Power: +12 to +24 Volt Size: 178,60 x 59,20 x 23,20 mm Weight: 880g 8. Technical Drawing © Copyright 2021 by EXSYS Vertriebs GmbH. All Rights Reserved...
