Am/Fm Tuner Operation - Dual XHDR6435 Installation & Owner's Manual

Display
Seek Tuning
Manual Tuning
Scan Tuning
Band
Storing and Recalling
Station Presets

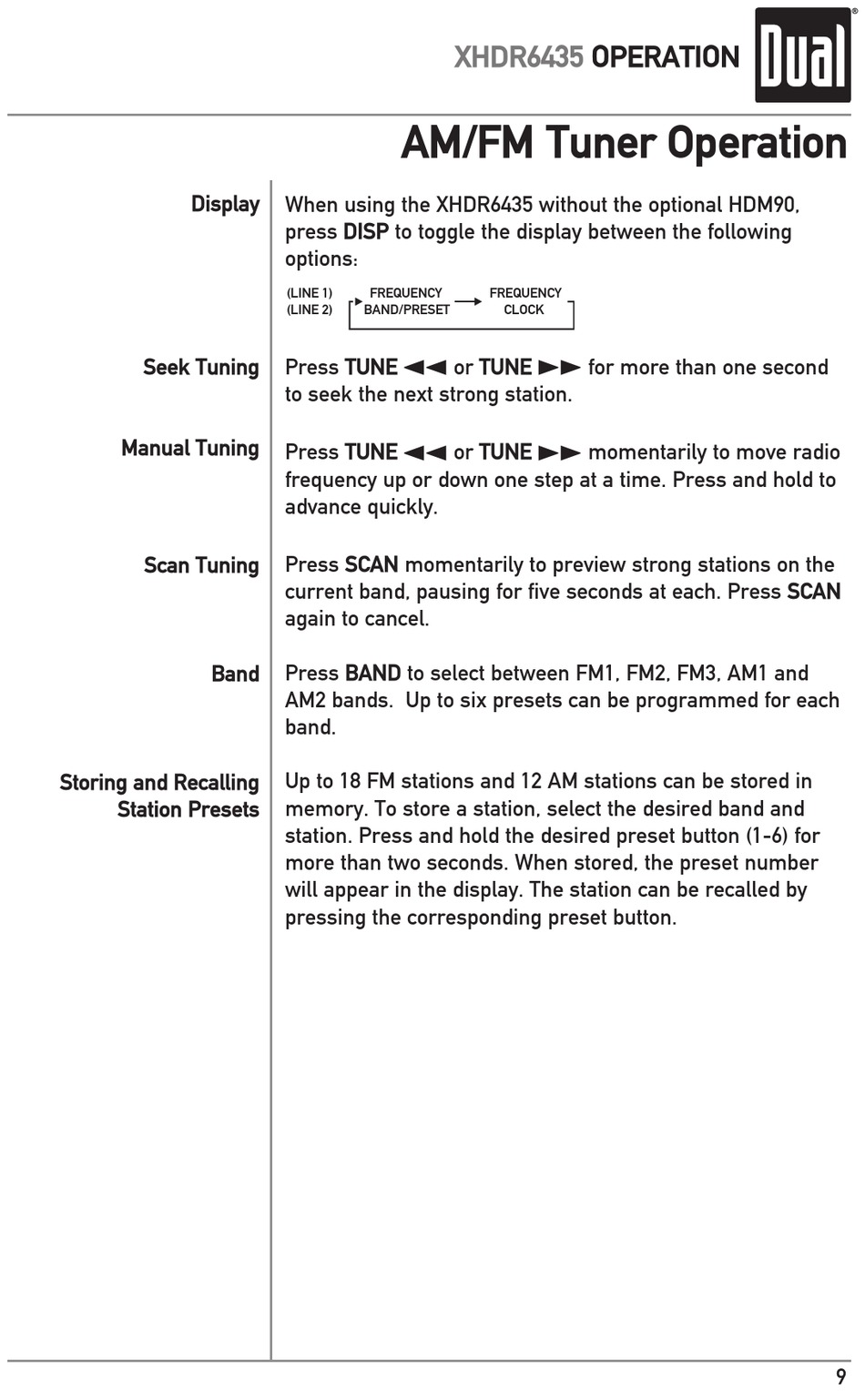

AM/FM Tuner Operation
When using the XHDR6435 without the optional HDM90,
press DISP to toggle the display between the following
options:
(LINE 1) FREQUENCY
(LINE 2) BAND/PRESET
nn
Press TUNE
to seek the next strong station.
nn
Press TUNE
frequency up or down one step at a time. Press and hold to
advance quickly.
Press SCAN momentarily to preview strong stations on the
current band, pausing for five seconds at each. Press SCAN
again to cancel.
Press BAND to select between FM1, FM2, FM3, AM1 and
AM2 bands. Up to six presets can be programmed for each
band.
Up to 18 FM stations and 12 AM stations can be stored in
memory. To store a station, select the desired band and
station. Press and hold the desired preset button (1-6) for
more than two seconds. When stored, the preset number
will appear in the display. The station can be recalled by
pressing the corresponding preset button.
XHDR6435 OPERATION
FREQUENCY
CLOCK
ll
or TUNE for more than one second
ll
or TUNE momentarily to move radio
9
