Summary of Contents for Dual XR4110

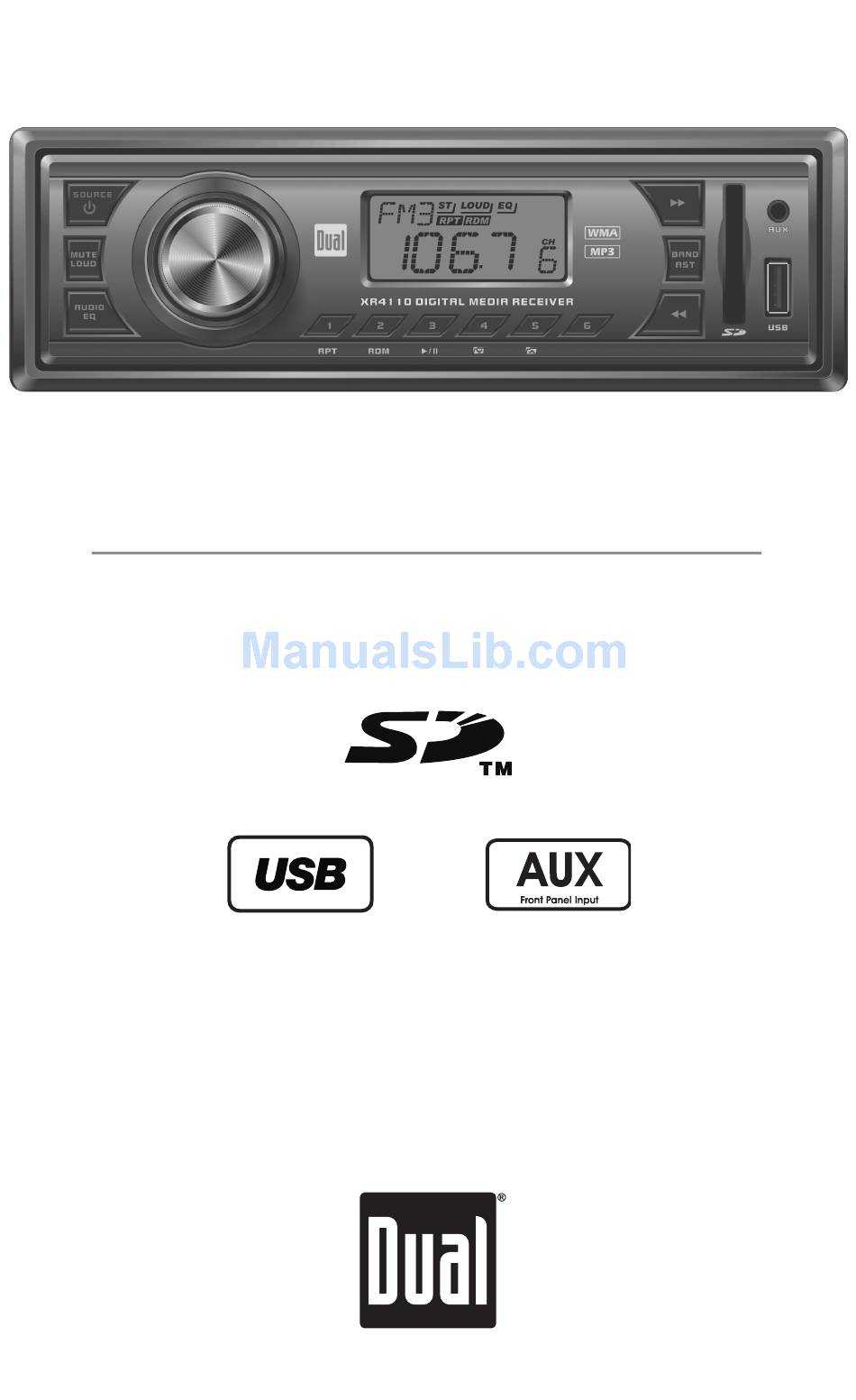

- Page 1 XR4110 INSTALLATION/OWNER'S MANUAL AM/FM/MP3/WMA Receiver with Auxiliary Input, USB Port and SD Card Input...
- Page 2 XR4110 INSTALLATION Preparation Please read entire manual before installation. Before You Start • Disconnect negative battery terminal. Consult a qualified technician for instructions. • Avoid installing the unit where it would be subject to high temperatures, such as from direct sunlight, or where it would be subject to dust, dirt or excessive vibration.
-
Page 3: Wiring Diagram
Using an incorrect fuse could damage the radio. The XR4110 uses one 5 amp AGC fuse located in-line. * Caution - Do not attach any speaker leads to ground as severe damage will occur. -
Page 4: Control Locations
XR4110 OPERATION Control Locations Power / Source Mute / Loud Volume Tune / Track Up Band / Auto Station Store SD Card Slot Auxiliary Input USB Port Tune / Track Down Preset 6 Preset 5 / Folder Up Preset 4 / Folder Down... -
Page 5: General Operation
XR4110 OPERATION General Operation Press to turn the unit on. Press and hold for more Power On/Off than two seconds to turn the unit off. Press SOURCE to select between AM/FM, auxiliary input, Source USB or SD Card modes. Modes of operation are indicated in the display. -
Page 6: Tuner Operation
XR4110 OPERATION Tuner Operation Seek Tuning Manual Tuning Band Storing and Recalling Station Presets Automatically Store Stations Press TUNE or TUNE seek the next strong station. Press TUNE or TUNE radio station at a time. Press and hold to advance quickly. Press BAND to select between FM1, FM2, FM3 and AM1, AM2 bands. -
Page 7: Usb/Sd Card Operation
XR4110's USB port. To play MP3/WMA files from an SD card, insert an SD card into the XR4110's SD card slot with the label facing left. It will click into place when properly inserted. To remove the card, press in until it clicks, then pull to remove. - Page 8 XR4110 OPERATION USB/SD Card Operation Media Compatibility Playback Order Playback Capacity Device Compatibility Sampling Frequency Rates Transfer Bit Rates The following types of files are compatible: • MP3 data • WMA data The following types of files are not compatible: • WMA files that are protected by DRM (Digital Rights Management).
-
Page 9: Troubleshooting
Design and specifications subject to change without notice. Power Output: 5 Watts RMS x 4 channels at 4 ohms and < 1% THD+N Signal to noise ratio: 60dBA (reference: 1 watt into 4 ohms) XR4110 OPERATION Cause Black wire not connected... -
Page 10: Limited One Year Warranty
This warranty gives you specific legal rights. You may also have other rights which vary from state to state. Dual Electronics Corp. warrants this product to the original purchaser to be free from defects in material and workmanship for a period of one year from the date of the original purchase. -
Page 11: Fcc Compliance
Increase the separation between the equipment and receiver. • Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. • Consult the dealer or an experienced radio/TV technician for help. XR4110 OPERATION FCC Compliance... - Page 12 Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and or other countries. The SD logo is a trademark of the SD Card Association. Other trademarks and trade names are those of their respective owners. www.dualav.com ©2009 Dual Electronics Corp. All rights reserved. NSA0809-V02...
