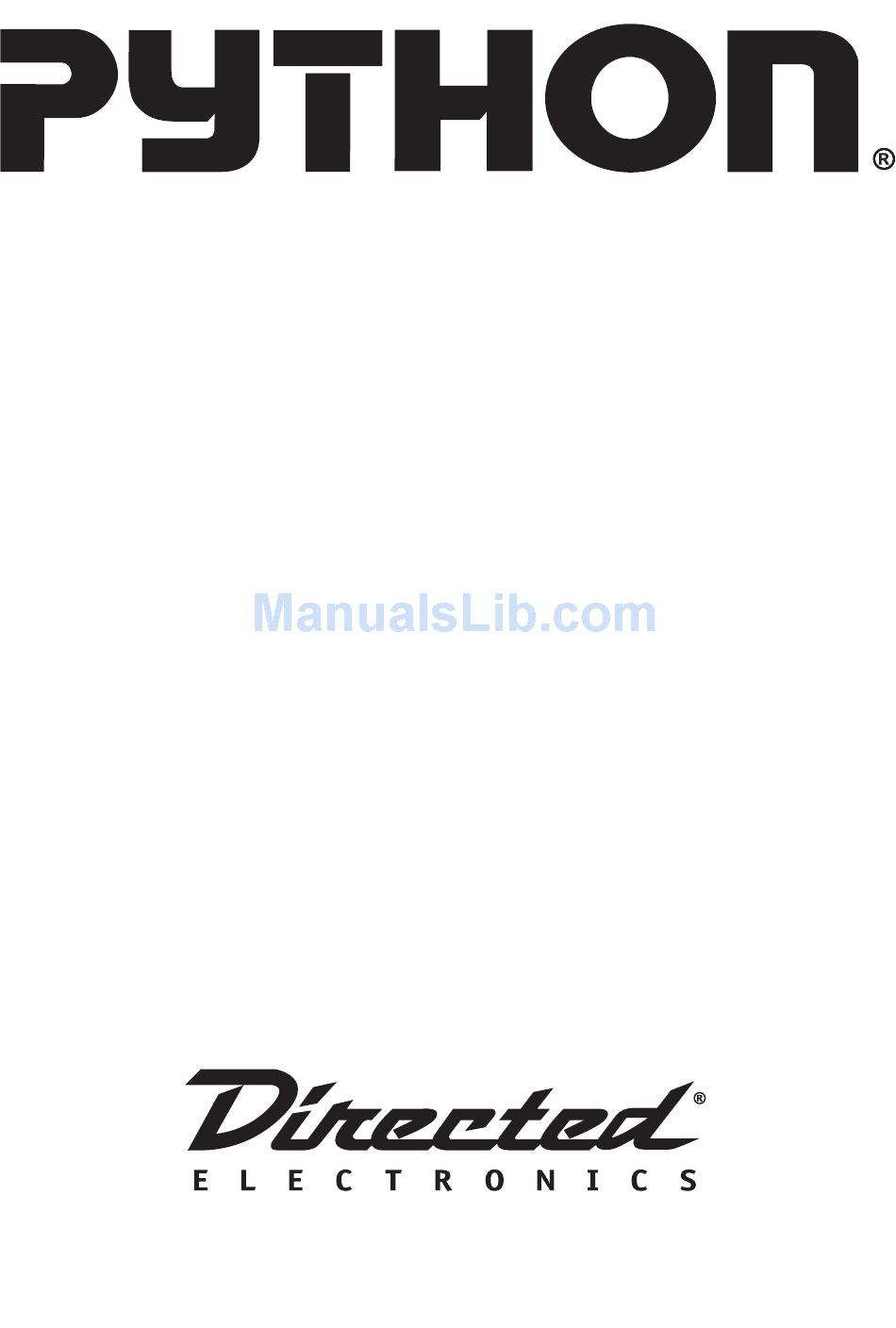

Responder LC Model 951
Remote Start Keyless Entry
Owner's Guide
© 2008 Directed Electronics, Vista, CA
G4702P 2008-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 951 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Directed Electronics 951

Summary of Contents for Directed Electronics 951

  • Page 1 Responder LC Model 951 Remote Start Keyless Entry Owner’s Guide © 2008 Directed Electronics, Vista, CA G4702P 2008-08...

  • Page 3: Table Of Contents

    Contents Government regulations ...4 Warning! Safety first ...5 What’s included ...8 Important information ...8 Your warranty...8 Replacement remote ...8 Out of range notification...9 Charging the Battery ...9 Low battery indicator ...10 Battery Replacement ...10 Multi-car control capability ...11 Responder LC 2-way ...12 LC 1-way companion ...13 Transmitter configuration ...13 Using the system ...14...

  • Page 4: Government Regulations

    RF exposure compliance. This device is designed to be used in a person’s hands and its operating configurations do not support normal transmissions while it is carried in pockets or holsters next to a person’s body. © 2008 Directed Electronics. All rights reserved.
  • Page 5 RF exposure compliance. Warning: Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this device. © 2008 Directed Electronics. All rights reserved.

  • Page 6: Warning! Safety First

    Leave the vehicle in neutral and be sure no one is standing in front or behind the vehicle. • Only remote start on a flat surface • Have the parking brake fully engaged WARNING! It is the responsibility of the owner to ensure the parking/emergen- © 2008 Directed Electronics. All rights reserved.
  • Page 7 REMOTE START MODULE. DIRECTED WILL NOT BE HELD RESPONSIBLE OR PAY FOR INSTALLATION OR REINSTALLATION COSTS. This product is designed for fuel injected vehicles only. Use of this product in a standard transmission vehicle must be in strict accordance with this guide. © 2008 Directed Electronics. All rights reserved.
  • Page 8 This product should not be installed in any convertible vehicles, soft or hard top with a manual transmission. Installation in such vehicles may pose certain risk. © 2008 Directed Electronics. All rights reserved.

  • Page 9: What's Included

    Your system comes with one Responder LC remote control (P/N 7752P) and one companion remote control (P/N 7652P). If additional remotes are desired, please see your authorized dealer or visit www.directedstore.com to order. © 2008 Directed Electronics. All rights reserved.

  • Page 10: Out Of Range Notification

    The battery status outline flashes and CHARGE is displayed on the LCD. Once the battery has accumulated enough charge for functionality, the LCD icons initialize with a beep sound, the battery status © 2008 Directed Electronics. All rights reserved.

  • Page 11: Low Battery Indicator

    Control the remote control is ready for use. Toggles Scan mode © 2008 Directed Electronics. All rights reserved. The temperature range over which Warning! the battery can be charged is 0ºC TO 45ºC (32ºF TO 113ºF). Charging the battery at...

  • Page 12: Multi-Car Control Capability

    1 or 2 flashes indicating the current vehicle mode. button for 3 seconds or until the remote beeps. The car button until the amber light blinks once or twice © 2008 Directed Electronics. All rights reserved. . The car icon flashes to button again.

  • Page 13: Responder Lc 2-Way

    Label Battery Door (1-way) Transmit LED (1-way) Note: If Keypad Lock is On, press © 2008 Directed Electronics. All rights reserved. Activity/icon display Press for one second to arm. Press for one second to disarm. Press and hold for 1.5 second to activate optional trunk release.

  • Page 14: Lc 1-Way Companion

    See call out table for 2-way Silent Lock Silent Unlock Valet Mode Reset Timer Mode Runtime AUX 1 AUX 2 Cabin Runtime Temperature Check request (2-way only) (2-way only) © 2008 Directed Electronics. All rights reserved. Car Finder Smart Start Rear Defogger AUX 3...

  • Page 15: Using The System

    The parking lights flash once. The 2-way re- mote displays the icon. If no lock confirmation is received, the 2-way remote emits the Out Of Range signal. © 2008 Directed Electronics. All rights reserved. button. The system...
  • Page 16 When the system reaches 3-minutes and 1-min- ute of runtime remaining, it sends the 2-way remote control a paging signal. icon. If no unlock confirmation is received, the © 2008 Directed Electronics. All rights reserved. button. The...
  • Page 17 Once you exit the vehicle you can lock the system and the car will remain running. If the vehicle shuts down, then the unit did not enter valet take-over mode. © 2008 Directed Electronics. All rights reserved. 1 time and the...
  • Page 18 : Press 1 to 4 times. (See Transmitter configuration table) Feedback Display shows a text message across the bottom for the com- mand received. Notes Each Press then release, shifts the function of the command but- ton. © 2008 Directed Electronics. All rights reserved.

  • Page 19: Valet Mode

    When locking the system in Valet Mode, the screen displays “valet” and the remote then emits an error tone. When unlocking in Valet Mode, the screen displays “valet” and the remote emits two error tones. © 2008 Directed Electronics. All rights reserved. two-times and then REVISIONS REV.

  • Page 20: Cabin Temperature

    2-way remote gives the Out Of Range signal. • Fail-Safe Starter Kill The starter is disabled by the system’s Fail-Safe starter kill. Silent unlock three-times and then one time, then Hold for 1.5 one- time and then press © 2008 Directed Electronics. All rights reserved.

  • Page 21: Overriding The Optional Starter Kill

    Override Switch Number ___________ © 2008 Directed Electronics. All rights reserved. one- time and then press 1. Texture is same as 2. Radious will be if not specified.

  • Page 22: Additional Remote Start Features

    Lock the doors with the remote. (the vehicle shuts off when locking the system). You can now remote start the vehicle. If a door is opened before the next remote start activation the system will not remote start. Note: Pressing the brake again after this © 2008 Directed Electronics. All rights reserved.
  • Page 23 Make sure the remote start system is not operating the engine. Turn the ignition on. Timer Mode is exited and the parking lights flash slowly four times. © 2008 Directed Electronics. All rights reserved. two-times and then . Parking lights flash slowly four times...
  • Page 24 Turn off the ignition (car stays running). Exit the vehicle and lock the system. At this point the vehicle stays running for the programmed runtime. button twice followed by the © 2008 Directed Electronics. All rights reserved.
  • Page 25 (factory setting is for 1 pulse). The remote emits the remote start confirmation tone. Now you can turn off the ignition and exit the vehicle. The car remains running for the pre-programmed amount of time. © 2008 Directed Electronics. All rights reserved. two-times,...
  • Page 26 55 degrees or below when this feature is wired and enabled. four times, and then © 2008 Directed Electronics. All rights reserved. two-times, and then one-time and then . (Only after remote start is...
  • Page 27 The parking lights will flash 5 times slow confirm- ing that Smart Start Mode is exited. © 2008 Directed Electronics. All rights reserved. three-times and then press button on the remote (the vehicle will...
  • Page 28 5 start cycles. If the threshold has not been met then the system will not start the vehicle, and 6 start cycles are left. The unit continues to check threshold levels every 3 hours. © 2008 Directed Electronics. All rights reserved.

  • Page 29: Auxiliary Features

    *Factory default is pulsed. The text can be changed by your installer using the Bitwriter® programming tool. © 2008 Directed Electronics. All rights reserved. one time and then press two times and then press three times and then press...

  • Page 30: Remote Control Feature Programming

    Places remote in demo mode Exits programming button until the remote beeps to confirm entry into the button. . Programming mode is automatically © 2008 Directed Electronics. All rights reserved. A U X button to scroll down the button, or scroll...

  • Page 31: Remote Setup Options

    Back light color Temp units F° Button press beep System type Remote start & Security Clock set Clock time © 2008 Directed Electronics. All rights reserved. Opt 2 Opt 3 Back Power save Tone Both Temp Runtime Back Home Back C°...

  • Page 32: Menu Option Descriptions

    Clock displays the current time during remote start. Temperature displays the current cabin temperature during the remote start. Runtime displays the runtime remaining during the remote start. to unlock the keypad. button is pressed, the keypad auto lock feature © 2008 Directed Electronics. All rights reserved.
  • Page 33 Once the desired time has been reached you can either choose "back" in the menu or press © 2008 Directed Electronics. All rights reserved. button. The LC text display reads button to move up to the hour or minute, and press to save and exit.

  • Page 34: Pair Remote Setup

    Note: If the charger is plugged into the remote and demo mode is acti- vated, the remote plays the demo mode continuously. The continuous loop demo mode is exited when the charger is disconnected. © 2008 Directed Electronics. All rights reserved.

  • Page 35: Safety Features

    To disable the remote start, move the shutdown toggle switch to the Off position. Check with your installer for the location of the shutdown switch. Location of Shutdown Switch____________________________ © 2008 Directed Electronics. All rights reserved.

  • Page 36: Diagnostics

    ➤ Unlocking Extra honks when unlocking the system is a notification that the batteries in the remote are low and need to be replaced. Important: The optional horn honk feature must be installed. © 2008 Directed Electronics. All rights reserved.

  • Page 37: Remote Start

    8 flashes: neutral safety wire has no ground or the remote start defeat toggle switch is off. Keep a record of the number of flashes, to assist your installer when taking the vehicle in for service. © 2008 Directed Electronics. All rights reserved.

  • Page 38: Owner Recognition

    (ignition is not turned on) for a one-hour period while the system is in Valet Mode, the status LED will shut Off. If the system remains in Valet Mode, the LED will come back on the next time the ignition is turned on and then back Off. © 2008 Directed Electronics. All rights reserved.

  • Page 39: 2-Way Remote

    Panic mode enabled pletely turned Off. (Some states have laws against horns continually honk- ing in moving cars.) © 2008 Directed Electronics. All rights reserved. On or Off. Off: When this feature is pro- /disabled when the ignition is turned on or com-...

  • Page 40: Convenience Expansions

    529T and 530T systems. These can operate power windows, and can roll them up automatically when the system is Locked, roll them down, or both up and down. is a programming option which closes the vehicle’s win- © 2008 Directed Electronics. All rights reserved.

  • Page 41: Glossary Of Terms

    Valet Button: A small push button switch located on your systems control center. It is used to override the starter interrupt when a 2-way remote is lost or damaged, or to enter or exit Valet Mode. © 2008 Directed Electronics. All rights reserved.
  • Page 42 Locked in valet Unlock Unlocked in valet Alarm Remote Start Timer Mode Manual Transmission En- abled © 2008 Directed Electronics. All rights reserved. Thermometer/Smart start Battery Status Hood (Trigger)* Hood (Zone bypass)* Trunk (Trigger)* Trunk (Zone bypass)* Pager On Pager Off...
  • Page 43 Car Door (Zone bypass) *Feature only available on full security and remote start systems. Does not apply to 4702 model. ** Feature not available © 2008 Directed Electronics. All rights reserved. Car Door Home (Garage - Open)** Home (Garage Close)**...

  • Page 44: Quick Reference Guide

    The remote beeps two-times and the LCD The lock icon turns on and the LCD . The unlock icon turns on and the © 2008 Directed Electronics. All rights reserved. 1. Texture is same as *Tolerance please refer specification 2.
  • Page 45 Exit the vehicle and lock the doors with the remote. The engine will remain running until the programmed time elapses or a shut-down input is received. © 2008 Directed Electronics. All rights reserved. (only after remote start is On.) The The remote will beep once and the LCD...

  • Page 46: Limited Lifetime Consumer Warranty

    Limited lifetime consumer warranty Directed Electronics. (“Directed”) promises to the original purchaser to repair or replace (at Directed’s election) with a comparable reconditioned model any Directed unit (hereafter the “unit”), excluding without limitation the siren, the remote transmitters, the associated...
  • Page 47 WITHOUT LIMITATION, LIABILITY FOR THEFT, DAMAGE AND/OR VANDALISM. THIS WARRANTY DOES NOT COVER LABOR COSTS FOR MAINTENANCE, REMOVAL OR REINSTALLATION OF THE UNIT OR ANY CONSEQUENTIAL DAMAGES OF ANY KIND. IN THE EVENT OF A CLAIM OR A DISPUTE INVOLVING DIRECTED OR ITS SUBSIDIARY, THE VENUE SHALL BE SAN DIEGO COUNTY IN THE STATE OF CALIFORNIA.
  • Page 48 The company behind this system is Directed Electronics Since its inception, Directed Electronics has had one purpose, to provide consumers with the finest vehicle security and car stereo products and accessories available. The recipient of nearly 100 patents and Innovations Awards in the field of advanced electronic technology.
