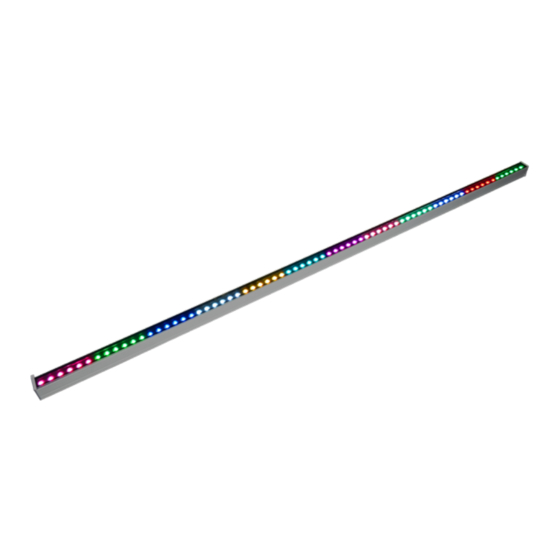

Osram Traxon e:cue Allegro Media Tube Lite Mounting Manual

Dimensions (Direct View)
H2
H1
NOTE: Please see CAD files for additional dimensional data.
W1
1200mm / 48" 24.5mm / 0.96" 33.3mm / 1.31"
300mm / 12" 24.5mm / 0.96" 33.3mm / 1.31"
Dimensions (Diffused View)
W1
H2
H1
W2
NOTE: Please see CAD files for additional dimensional data.
W1
1200mm/ 48" 24.5mm / 0.96" 33.3mm / 1.31"
300mm / 12" 24.5mm / 0.96" 33.3mm / 1.31"
Tube-to-tube Clearance
To maintain consistent LED pitch and to allow for thermal expansion, a minimum of
4mm / 0.16" is required between luminaire's.
>4mm / 0.16"
Tube-to-tube Connection
www.traxontechnologies.com | www.osram.us/traxon
©2021 TRAXON TECHNOLOGIES - AN OSRAM BUSINESS. ALL RIGHTS RESERVED. TRAXON™, TX CONNECT®, ARE TRADEMARKS OF TRAXON TECHNOLOGIES. U.S. PATENTS, E.U. PATENTS, JAPAN PATENTS, OTHER PATENTS PENDING. SPECIFICATIONS ARE SUBJECT TO CHANGE
WITHOUT NOTICE.
Mounting Guide
Allegro Media Tube
W1
L1
W2
A
W2 H1
58.2mm / 2.29" 31.2mm / 1.23"
58.2mm / 2.29" 31.2mm / 1.23"
L1
A
W2 H1
70mm / 2.76" 43mm / 1.69"
70mm / 2.76" 43mm / 1.69"
1
2
Mounting Guide
L
D
L
L1
A
H2 A D
240mm / 9.45" 850mm / 33.46"
145mm / 5.71" 135mm / 5.31"
L
D
L
L1
A
H2 A D
240mm / 9.45" 850mm / 33.46"
145mm / 5.71" 135mm / 5.31"
If you do not hear "click", rotate the spring loaded connector manually to ensure that the
connectors are properly mated.
If you do not hear "click", rotate the spring loaded
connector manually to ensure that the connectors
are properly mated.
12/21 V1.0
Lite
®
L2
L2
D
L L1
1200mm / 47.24" 116.5mm / 4.59"
300mm / 11.81" 116.5mm / 4.59"
L2
L2
D
L L1
1200mm / 47.24" 116.5mm / 4.59"
300mm / 11.81" 116.5mm / 4.59"
End Cap Seal on Last Tube
L2
136.3mm / 5.37"
136.3mm / 5.37"
L2
136.3mm / 5.37"
136.3mm / 5.37"
1 of 3
