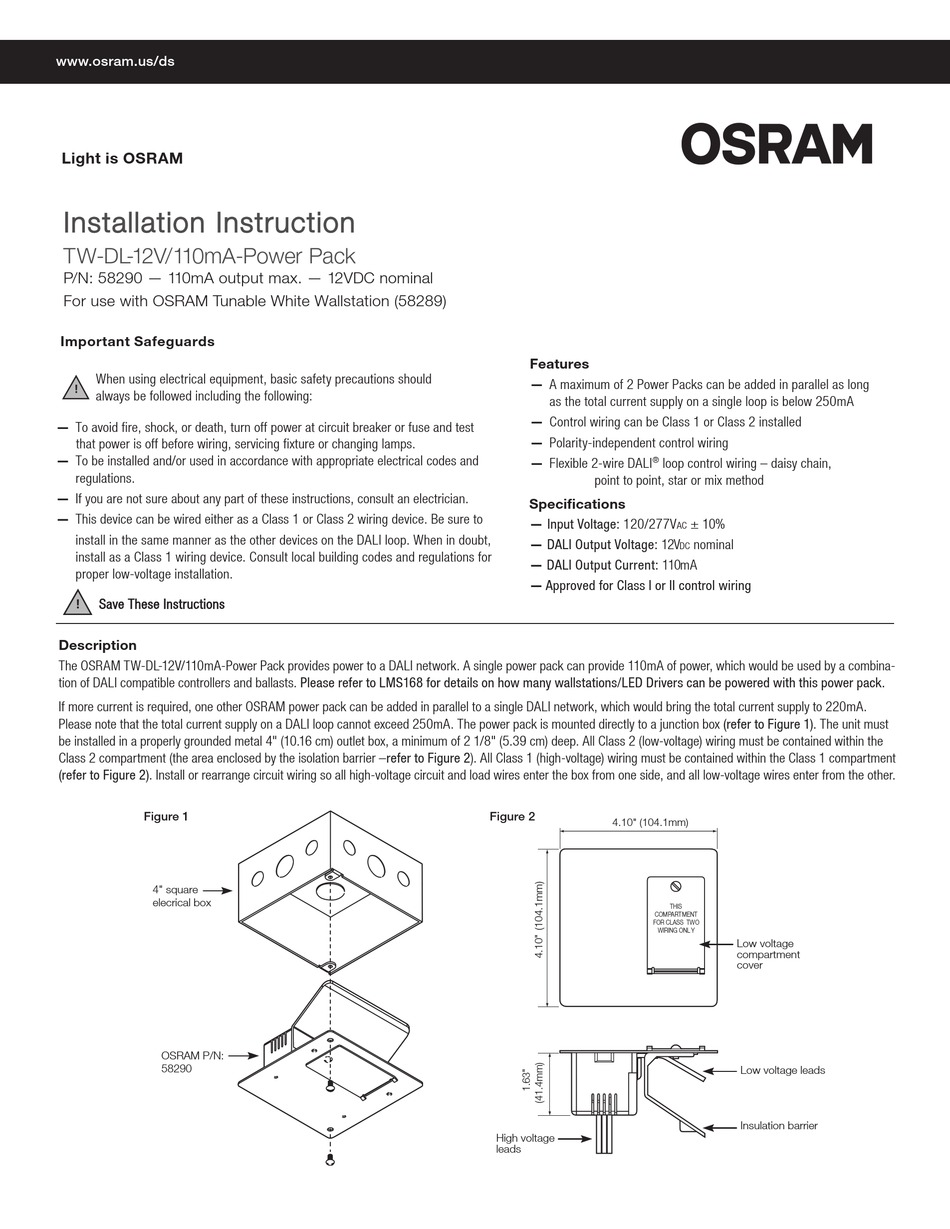

Installation Instruction
TW-DL-12V/110mA-Power Pack
P/N: 58290 — 110mA output max. — 12Vdc nominal
For use with OSRAM Tunable White Wallstation (58289)

Important Safeguards

When using electrical equipment, basic safety precautions should
!
always be followed including the following:
— To avoid fire, shock, or death, turn off power at circuit breaker or fuse and test
that power is off before wiring, servicing fixture or changing lamps.
— To be installed and/or used in accordance with appropriate electrical codes and
regulations.
— If you are not sure about any part of these instructions, consult an electrician.
— This device can be wired either as a Class 1 or Class 2 wiring device. Be sure to
install in the same manner as the other devices on the DALI loop. When in doubt,
install as a Class 1 wiring device. Consult local building codes and regulations for
proper low-voltage installation.
Save These Instructions
!

Description

The OSRAM TW-DL-12V/110mA-Power Pack provides power to a DALI network. A single power pack can provide 110mA of power, which would be used by a combina-
tion of DALI compatible controllers and ballasts. Please refer to LMS168 for details on how many wallstations/LED Drivers can be powered with this power pack.
If more current is required, one other OSRAM power pack can be added in parallel to a single DALI network, which would bring the total current supply to 220mA.
Please note that the total current supply on a DALI loop cannot exceed 250mA. The power pack is mounted directly to a junction box (refer to Figure 1). The unit must
be installed in a properly grounded metal 4" (10.16 cm) outlet box, a minimum of 2 1/8" (5.39 cm) deep. All Class 2 (low-voltage) wiring must be contained within the
Class 2 compartment (the area enclosed by the isolation barrier –refer to Figure 2). All Class 1 (high-voltage) wiring must be contained within the Class 1 compartment
(refer to Figure 2). Install or rearrange circuit wiring so all high-voltage circuit and load wires enter the box from one side, and all low-voltage wires enter from the other.
Figure 1
4" square
elecrical box
OSRAM P/N:
58290

Features

— A maximum of 2 Power Packs can be added in parallel as long
as the total current supply on a single loop is below 250mA
— Control wiring can be Class 1 or Class 2 installed
— Polarity-independent control wiring
— Flexible 2-wire DALI
® loop control wiring – daisy chain,
point to point, star or mix method

Specifications

— Input Voltage: 120/277V
— DALI Output Voltage: 12V
— DALI Output Current: 110mA
— Approved for Class I or II control wiring
Figure 2
4.10" (104.1mm)
COMPARTMENT
FOR CLASS TWO
WIRING ONL Y
High voltage
leads
± 10%
ac
nominal
dc
THIS
Low voltage
compartment
cover
Low voltage leads
Insulation barrier
