36 mm
62 mm
max. approx. 54 mm
24 mm
ELOX
RO
25 mm
Ø 24 mm
10 mm
46

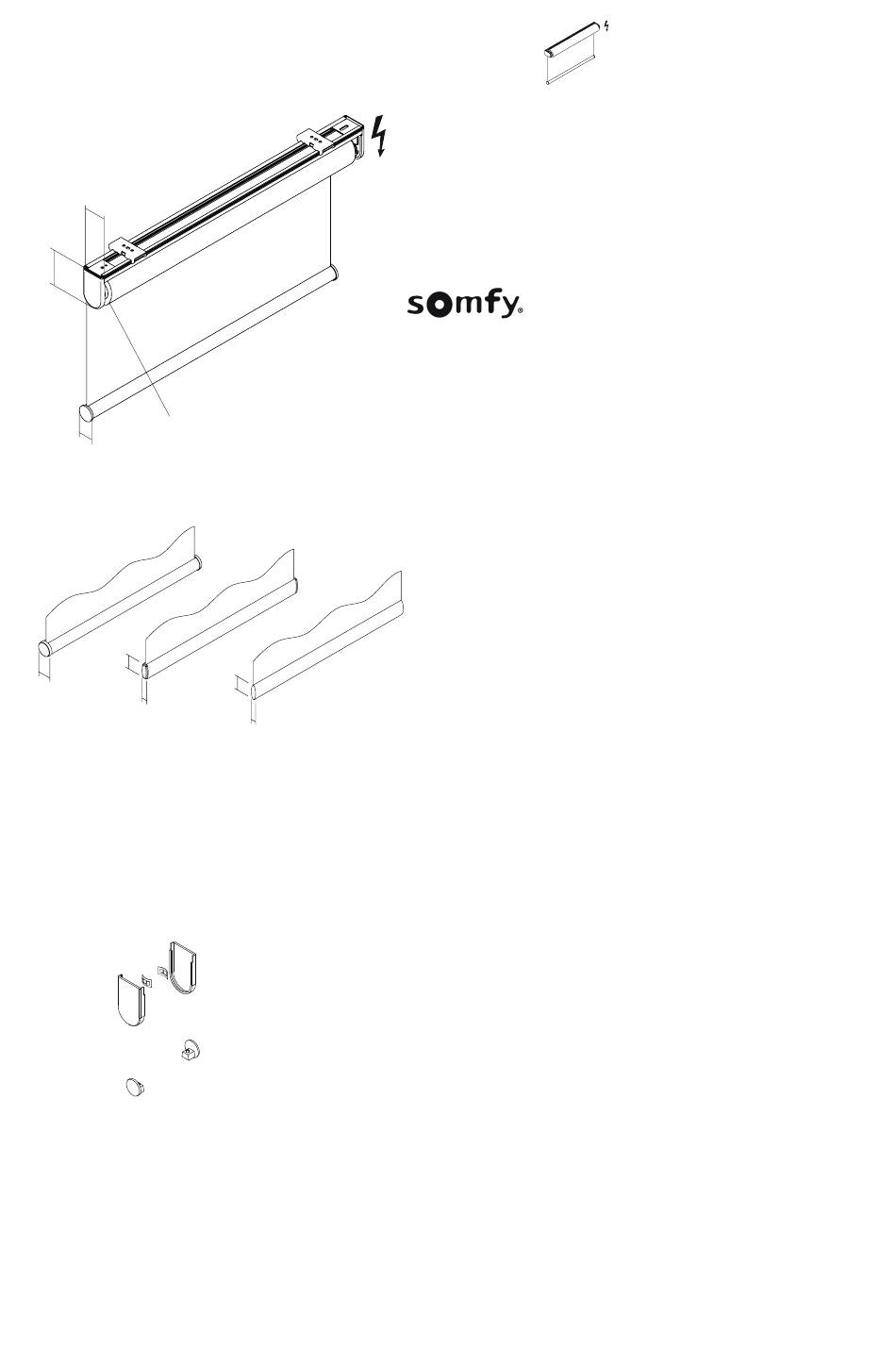

ROLLECTRIC II
TEChNIquE mOTOR 24 V
SL
30 mm
8 mm
Technique
The electric roller blind for simply
assembly. Completely ready for instal-
lation, with head profile and clips. Tube
of approx. 36 mm diameter. motor
arrangement right or left. Length of
electric cable: 250 cm
motor
24-Volt DC motor
minimum voltage: 20 volt
Nominal current: 0.5 ampere
maximum number of rotations: 40
Nominal rotation speed:
35 rotations/minute
with overload protection
Pay attention to the wire cross section
Colours
Standard anodized aluminium/grey
Standard white RaL 9016
Other colours upon inquiry
Bottom bar RO
Bottom weight aluminium
Colours
Standard anodized aluminium/grey
Standard white RaL 9016
TEX
Other colours upon inquiry
Bottom bar SL
weight flat-profile aluminium
Colours
Standard anodized aluminium/grey
Standard white RaL 9016
Other colours upon inquiry
Bottom bar TEX
weight flat-profile, 6 x 20 mm,
sewn into the seam
Option:
ELOX 1
high-quality side cover on top and
Design
caps RO and SL weight in anodized
aluminium, to match the anodized
aluminium head profile/bottom bar,
instead of the plastic option
