Element 14 Manual Original instructions

7) OPERATING INSTRUCTIONS

GETTING STARTED – PREPARATION
RELEASING the CUTTING HEAD
The cutting head will automatically rise to the upper position once it is released from the locked down
position.
To Release the cutting head from the Locked Down position: Gently press down on the cutting handle.
• Pull out the head latching pin and lock in the outer position
(Fig. 1) Allow the cutting head to rise to its upper position.

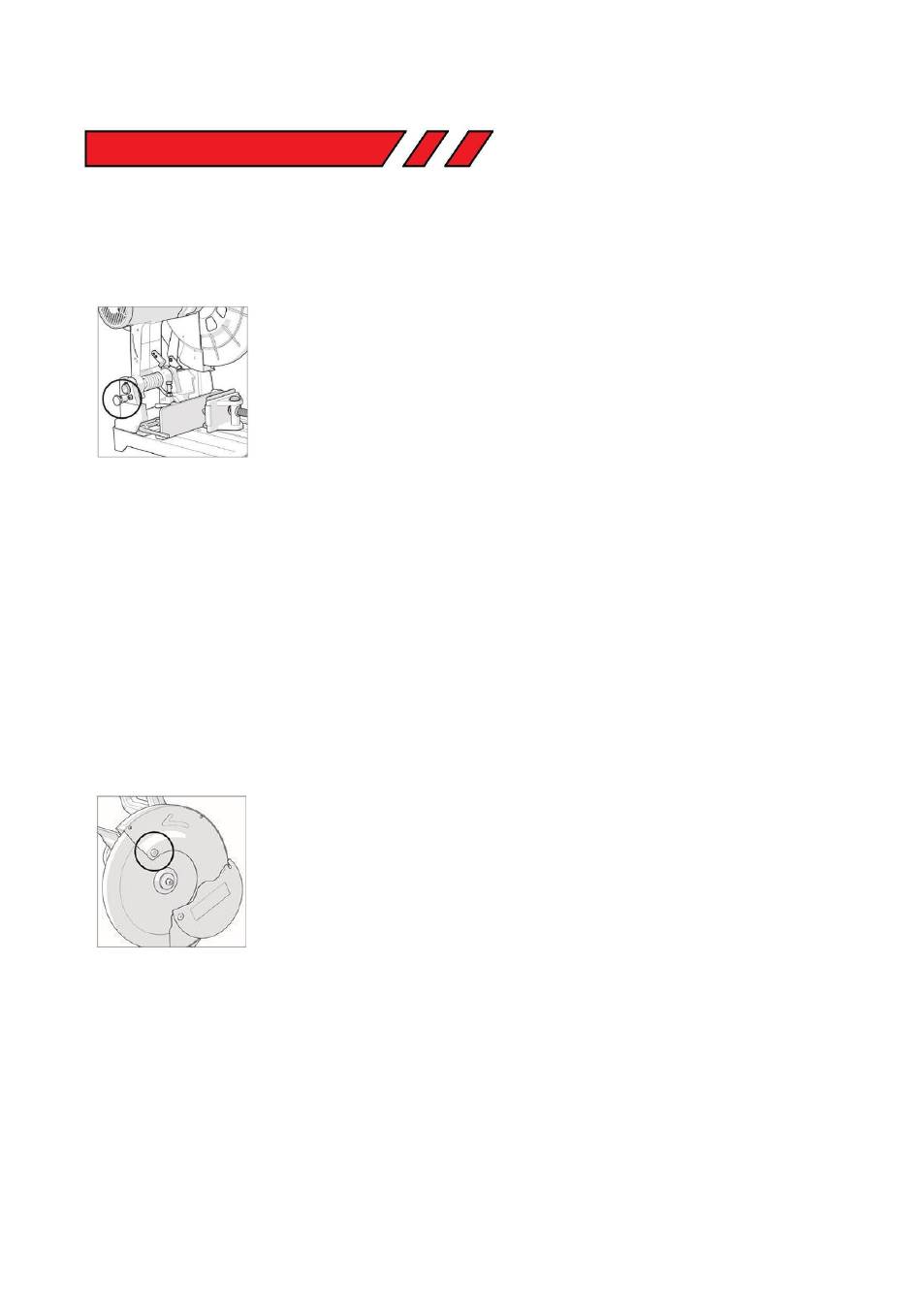

Fig.1
If Release is Difficult:
• Gently rock the cutting head up and down.
• Pull the latching pin fully out and turn 1/4 of a turn to lock in the outer position.
Note: We recommend that when the machine is not in use the cutting head is locked in its down position with
the latching pin fully engaged in its socket.
INSTALLING or REMOVING a BLADE
WARNING: Only use genuine Rotabroach blades, or Rotabroach approved blades which are designed for this
machine. Ensure that the maximum recommended blade speed of the blade is compatible with the machine.
WARNING: Only perform this operation with the machine disconnected from the power supply.
Note: It is recommended that the operator considers wearing protective gloves when handling the blade
during installation or when changing the machine's blade.
Removing a Blade:
• Ensure that the cutting head is in its upper position.
• Loosen the fastener screw securing the arbor guard and rotate
the guard upwards to reveal the machine's arbor. (Fig. 2)
Fig.2
• Engage the arbor lock by pressing the arbor lock button.
(Fig. 3)
