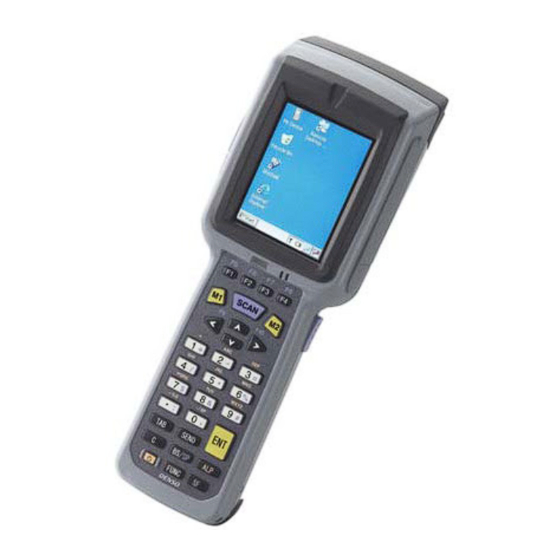

Denso 400BW-CE User Manual

Bar code handy terminal
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
Bar Code Handy Terminal
BHT-400B-CE/400BW-CE
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 400BW-CE and is the answer not in the manual?

Questions and answers

Related Manuals for Denso 400BW-CE

Summary of Contents for Denso 400BW-CE

  • Page 1 Bar Code Handy Terminal BHT-400B-CE/400BW-CE User’s Manual...
  • Page 2 If it is judged by DENSO WAVE INCORPORATED that malfunction of the product is due to the product having been dropped or subjected to impact, repairs will be made at a reasonable charge even within the warranty period.
  • Page 3 Copyright © DENSO WAVE INCORPORATED, 2007 All rights reserved. No part of this publication may be reproduced in any form or by any means without permission in writing from the publisher. Specifications are subject to change without prior notice. Microsoft, Windows and ActiveSync are either registered trademarks or trademarks of Microsoft Corporation.
  • Page 4 BHT-400BW-CE contains Wireless LAN module (type WM-G-MR-01) that complies with Part 15 of FCC rules and RSS-Gen of IC rules. For Wireless LAN module This device complies with Part 15 of FCC rules and RSS-Gen of IC rules. Operation is subject to the following two conditions:...
  • Page 5 BHT-400B-CE and BHT-400BW-CE comply with Part 15 of FCC rules and ICES-003 of IC rules. For Barcode Handy Terminal This device complies with Part 15 of FCC rules and ICES-003 of IC rules. Operation is subject to the following two conditions:...
  • Page 6 The radio frequency module that complies with the Directive 99/5/EC(R&TTE) is mounted on this device (BHT-400BW-CE). Manufacturer or Authorized representative : DENSO WAVE INCORPORATED Address : 1-1 Showa-cho, Kariya-shi, Aichi-ken, 448-8661, Japan We declare on our sole responsibility, that the following product :...
  • Page 7 Labeling ■BHT-400B-CE ■BHT-400BW-CE For USA and Canada For European Union For USA and Canada For European Union...
  • Page 8 • Handling and operating methods for the optical communication unit CU-400 series The BHT-400B-CE/400BW-CE models are designed in the same way except for the interface differences shown in the table below. In this manual, operations common for all models are explained unless otherwise stated.
  • Page 9 System Mode (which is required for the efficient use of application programs). Chapter 3 Communications Operations of the BHT Describes the communications operations of the BHT-400B-CE/400BW-CE — the wireless communication (BHT-400BW-CE only), infrared communication, USB interface specifications, connector interface specifications, basic communications specifications, communication using Ymodem, and ActiveSync--for data transfer with the host computer or other devices.

  • Page 10: Related Publications

    Related Publications BHT-400-CE API Reference Manual BHT-400-CE Class Library Reference Manual 2D Code Scanner/Barcode Scanner Keyboard Interface with BHT-CE kbifCE User’s Guide Screen Indication The lettering in the screens in this manual is a little different from that in the actual screens. File names used are only for description purpose, so they will not appear if you have not set files having those names.
  • Page 11 Be sure to observe all these safety precautions. Please READ through this manual carefully. It will enable you to use the BHT and CU correctly. Always keep this manual nearby for speedy reference. Strict observance of these warnings and cautions is a MUST for preventing accidents that could result in bodily injury and substantial property damage.
  • Page 12 Handling the battery cartridge • Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury. • Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins, hairpins, etc.
  • Page 13 Handling the BHT • The BHT uses a laser light for indicating the scanning range. The intensity of the laser light might be too low to inflict bodily injury. However, do not look into the laser beam or view directly with optical instruments. The BHT complies with IEC 60825-1:1993+A2:2001.
  • Page 14 Handling the CU • If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the wall socket or CU and contact your nearest dealer. Failure to do so could cause fire or electrical shock. •...
  • Page 15 Handling the battery cartridge • Never charge a wet or damp rechargeable battery cartridge. Doing so could cause the batteries to break, generate heat, rupture or burn. Handling the BHT • If smoke, abnormal odors or noises come from the BHT, immediately turn off the power, pull out the battery cartridge, and contact your nearest dealer.
  • Page 16 Handling the CU • Never disassemble or modify the CU; doing so could result in an accident such as fire or malfunction. • Never put the CU in places where there are excessively high temperatures, such as inside closed-up automobiles, or in places exposed to direct sunlight. Doing so could affect the housing or parts, resulting in a fire.
  • Page 17 Blow the particles away with an air brush or a soft brush. Limited Warranty on Software Products In no event will DENSO WAVE INCORPRATED be liable for direct, indirect, special, incidental, or consequential damages (including imaginary profits or damages resulting from interruption of operation or loss of business information) resulting from any defect in the software or its documentation or resulting from inability to apply the software or its documentation.
  • Page 18 DENSO WAVE; (ii) the use of DENSO WAVE's products in a manner for which the same were not intended nor designed; or (iii) any modification of DENSO WAVE's products by other(s) than DENSO...
  • Page 19 Chapter 1 Quick Guide Chapter 2 Getting Started the BHT and System Menu Chapter 3 Communications Operations of the BHT Chapter 4 Error Messages Chapter 5 Handling the CU-400 (Option) Appendices...

  • Page 21: Table Of Contents

    This chapter describes the basic operating method of the BHT and the related notes. Reading Barcodes ...2 Setting and Using the Hand Strap and Stylus ...4 Setting the Backlight...6 Using the Keypad ...9 Transferring Data...11 Chapter 1 Quick Guide...

  • Page 22: Reading Barcodes

    1.1 Reading Barcodes Turn the BHT on, bring the barcode reading window to the barcode to be scanned, and press the trigger switch. Pressing the trigger switch halfway emits a laser light to indicate the scanning range and pressing it fully turns on the illumination LED to scan the barcode. Barcodes can also be scanned by pressing the Scan key.
  • Page 23 The utility software can be downloaded from our web site (http://www.denso-wave.com). For further details, refer to “2D Code Scanner/Barcode Scanner Keyboard Interface with BHT-CE kbifCE User's Guide “ that comes with the software.

  • Page 24: Setting And Using The Hand Strap And Stylus

    1.2 Setting and Using the Hand Strap and Stylus Setting the hand strap Using the hand strap Put your hand through the hand strap and hold the BHT as shown below. This will prevent you from dropping the BHT accidentally. Hand strap Hand strap...

  • Page 25: Using The Stylus

    Setting the stylus stylus Using the stylus The BHT has a touch screen LCD. With the stylus that comes with the BHT, you can operate keys, menus, and icons displayed on the touch screen. Before using the touch screen, be sure to set it up. (Refer to Chapter 2, Section 2.3.2, "Setting-up 2: Calibrating the touch screen.") •...

  • Page 26: Setting The Backlight

    1.3 Setting the Backlight 31-key pad Pressing the right-hand trigger switch (M4 key) with the SF key held down enables or disables the backlight function. In user programs, you can select the key to be used for enabling or disabling the backlight function (instead of the initial setting: combination of SF key and right-hand trigger switch (M4)), as well as modifying the ON-duration of the backlight before the automatic turning-off.
  • Page 27 50-key pad (Phone-type key layout) Pressing the right-hand trigger switch (M4 key) with the SF key held down enables or disables the backlight function. In user programs, you can select the key to be used for enabling or disabling the backlight function (instead of the initial setting: combination of SF key and right-hand trigger switch (M4)), as well as modifying the ON-duration of the backlight before the automatic turning-off.
  • Page 28 50-key pad (Calculator-type key layout) Pressing the right-hand trigger switch (M4 key) with the SF key held down enables or disables the backlight function. In user programs, you can select the key to be used for enabling or disabling the backlight function (instead of the initial setting: combination of SF key and right-hand trigger switch (M4)), as well as modifying the ON-duration of the backlight before the automatic turning-off.

  • Page 29: Using The Keypad

    1.4 Using the Keypad Entering Numerical Data To enter numerical data, use the numerical keys and the ENT key. For example, to enter the number "120," press the 1, 2 and 0 keys and then press the ENT key. If you type in any wrong value, press the BS/SP(31-key pad) or BS(50-key pad) key and then enter the correct one.
  • Page 30 Using the software keyboard You can display or hide the software keyboard by tapping the software keyboard status icon on the task tray. Software keyboard status icon (This icon does not appear by default. You can display it by changing the setting in System Menu or in user programs) Just as from the hardware keyboard, you can enter data from the software keyboard, by tapping keys on Software keyboard...

  • Page 31: Transferring Data

    1.5 Transferring Data Using radio link (BHT-400BW-CE only) Using radio waves, the BHT-400BW-CE may transfer data to an access point in a wireless LAN. If there are too many communications errors, first make sure that the BHT-400BW-CE points directly at an access point.
  • Page 32 Using infrared link Using infrared rays, the BHT may transfer data directly to the host computer equipped with an IrDA interface port and other IrDA-compliant devices. • Make sure that there is no obstruction in the light path between the BHT and any target stations. In infrared communication, you need to keep the BHT and any target stations within the effective infrared radiation range, usually 15 cm (5.9").
  • Page 33 Using USB interface Using a USB interface cable, the USB interface ports of the BHT and a host computer can be connected, allowing data to be transferred to the host computer. Host computer Using connector interface Using a connector interface cable, the RS-232C interface of a host computer and the connector interface port of the BHT can be connected allowing data to be transferred to the host computer.
  • Page 35 This chapter summarizes the BHT system configuration and describes the operation including preparation and System Menu (which is required for the efficient use of application programs). BHT System Configuration ...16 Components ...20 2.2.1 Names and Functions ...20 2.2.2 Status Indicators on the LCD ...24 2.2.3 Notes for Using the BHT ...27 Preparation ...28...

  • Page 36: Bht System Configuration

    2.1 BHT System Configuration The BHT barcode data collection system requires the following hardware as well as the BHT Barcode Handy Terminal (which reads barcodes and accepts keypad entry), depending upon the intended system configuration. • Host computer: For host computers having no IrDA interface ports, the optional CU-400 optical communication unit and RS-232C interface cable (for CU-401) or USB cable (for CU-421) are available.
  • Page 37 IrDA interface port. The CU-421 exchanges data and programs with the BHT optically, and with the host computer via the USB interface cable. In addition, the BHT-400BW-CE may operate in a radio communications system (wireless communication) by connecting with access points by a wireless local area network (wireless LAN).
  • Page 38 BHT Operating System (OS) Microsoft Windows CE 5.0 Application Program Development Environment PC for application development Item Microsoft Windows 2000 Professional Service Pack 2 or later, Microsoft Windows 2000 Server Service Pack 2 or later, or Microsoft Windows XP Professional Pentium-II class processor, 450 MHz or faster For Microsoft Windows 2000 Professional Service Pack 2 or Microsoft Windows XP Professional:...
  • Page 39 Application Development Tool Microsoft eMbedded Visual C++ 4.0 Service Pack 4 or later, Microsoft Visual Studio .NET or Microsoft Visual Studio .NET 2003 You can download Microsoft eMbedded Visual Tools 4.0 and Service Pack 4 from the Microsoft Web site (Microsoft eMbedded Visual C++ 4.0) http://www.microsoft.com/downloads/details.aspx?FamilyID=1dacdb3d-50d1-41b2-a107-fa75ae96085 6&DisplayLang=en...

  • Page 40: Components

    Reset button Battery cartridge cover Remove this cover to replace the battery cartridge. * Provided on the BHT-400BW-CE Hand strap Be sure to put your hand through this strap to prevent you from dropping the BHT accidentally.
  • Page 41 The functions of the keys may be set by user programs. Shown below is a set of sample functions. 31-key pad Trigger switch (M3 key) Scan key Also functions as a trigger switch to scan bar codes. Numerical keys Used for data input. C (Clear) key Pressing this key in BHTSHELL returns to...
  • Page 42 50-key pad (Phone-type key layout) Trigger switch (M3 key) ESC (Escape) key Scan key Also functions as a trigger switch to scan bar codes. Numerical keys Used for data input. Power key Turns the BHT on or off. Magic keys (M1 to M4) Other functions, such as SF key and ENT key functions, can be assigned...
  • Page 43 50-key pad (Calculator-type key layout) Trigger switch (M3 key) ESC (Escape) key Scan key Also functions as a trigger switch to scan bar codes. Numerical keys Used for data input. Power key Turns the BHT on or off. Chapter 2 Getting Started the BHT and System Menu Magic keys (M1 to M4) Other functions, such as SF key and ENT key functions, can be...

  • Page 44: Status Indicators On The Lcd

    The battery voltage level varies depending upon the operation of the BHT, so the displayed level also may vary. Wireless Zero Configuration radio status (Provided on the BHT-400BW-CE) Indicates that the Wireless Zero Configuration (WZC) radio is connected to a wireless network.
  • Page 45 Synchronization state (Provided on the BHT-400BW-CE) Displays the open state of the wireless device and the radio field intensity. Displays when the wireless device is open. Shows the radio field intensity with the number of bars. The radio field intensity icons ( assure you that there will be few communications errors.
  • Page 46 Software keyboard display/hide Shows whether the software keyboard is displayed or hidden. (Tapping this icon toggles the software keyboard on and off.) Displays when the software keyboard is displayed. Displays when the software keyboard is hidden. Software keyboard display/hide Shows whether the software keyboard is displayed or hidden. (Tapping this icon toggles the software keyboard on and off.) Displays when the software keyboard is displayed.

  • Page 47: Notes For Using The Bht

    2.2.3 Notes for Using the BHT Windows desktop on the LCD The Windows desktop shown in this manual may be a little different from that in the actual screens on the LCD. (Windows desktop sample) No refreshing of the LCD screen when on standby To minimize the power consumption, the BHT automatically switches to the standby mode after it has not been operated for the specified period*.

  • Page 48: Preparation

    2.3 Preparation 2.3.1 Setting-up 1: Loading the battery cartridge Before the first use of the BHT, be sure to load the battery cartridge as shown below. The battery cartridge is not loaded in the BHT when shipped from the factory. Into the BHT body (1) Turn the BHT upside down.
  • Page 49 • Never disassemble or heat the battery cartridge, nor put it into fire or water; doing so could cause battery-rupture or leakage of battery fluid, resulting in a fire or bodily injury. • Do not carry or store the battery cartridge together with metallic ball-point pens, necklaces, coins, hairpins, etc.
  • Page 50 Battery Voltage Level on the Status Indicator Line The battery voltage level is always displayed on the status indicator line. (For details, refer to Section 2.2.2 "Status Indicators on the LCD.") Low Battery Indication Low battery warning If the battery output voltage drops below a specified lower level limit when the BHT is in operation, the BHT displays the following message for approx.
  • Page 51 • You may charge the rechargeable battery cartridge with the optional CU-400 communication unit or optional CH-201 charger. For the charging procedure using the CU-400, refer to Chapter 5. For that using the CH-201, refer to the "CH-201 User's Manual." •...

  • Page 52: Setting-Up 2: Calibrating The Touch Screen

    2.3.2 Setting-up 2: Calibrating the touch screen Press the power key to turn on the BHT. The calibration screen appears, so follow the on-screen instructions. If nothing appears, first perform a "cold boot" (refer to Section 2.3.5 “Warm and Cold Booting”). ⇓...

  • Page 53: Battery Replacement Notes

    • Use only DENSO WAVE-authorized battery cartridges and chargers. • Never dispose of battery cartridges into a fire. They should be recycled properly. Do not throw them in a trash.

  • Page 54: Bht Turning-Off Notes

    2.3.4 BHT Turning-off Notes [ 1 ] "Shutdown in progress" message If you press the power key to turn off the BHT, the BHT displays the following message and starts preparation for shutdown. When the above message is displayed, do not remove the battery cartridge. If you do so, the data stored in the BHT may be lost.

  • Page 55: 2 ] Backing Up The Registry

    [ 2 ] Backing up the Registry The Registry is the part of Windows CE that stores setup information required for operating the BHT. Backing-up the Registry When the BHT is on, pressing the power key with the SF key held down displays the screen shown at right and starts backing up the Registry.

  • Page 56: Warm And Cold Booting

    2.3.5 Warm and Cold Booting Warm-booting the BHT In any of the following cases, warm-boot the BHT: - The BHT makes no response to entry from the touch screen or keys. - The programs in the BHT malfunction due to any problems. Warm-booting the BHT will not erase data stored in the RAM, but it will erase data being edited and not be saved.
  • Page 57 Cold-booting the BHT If a problem persists even after warm-booting the BHT, cold-boot the BHT. Cold-booting the BHT will erase all data stored in the RAM. It is recommended that important data be saved into the FLASH folder or uploaded to the host computer. Cold booting procedure Turn the BHT off.

  • Page 58: Replacement Of The Backup Battery

    2.4 Replacement of the Backup Battery If the following warning message appears on the LCD, you need to replace the backup battery (refer to Section 2.4.1). If you remove the backup battery, the contents of the memory may no longer be backed up so that the data stored in the BHT may be lost.

  • Page 59: Replacing The Backup Battery

    2.4.1 Replacing the Backup Battery Before proceeding to the replacement procedure below, it is recommended that you save important data into the FLASH folder or upload it to the host computer. (1) Turn the BHT upside down. (2) Disconnect the hand belt. (3) Slide the release button in the direction of the arrows to remove the battery cartridge cover.
  • Page 60 (4) Pull up the battery pull strap to remove the battery cartridge. Battery cartridge Battery pull strap (5) Pull the clear insulation sheet up and out of the BHT. Clear insulation sheet Battery pull strap (6) Use a pair of tweezers to remove the backup battery. Backup battery Tweezers...
  • Page 61 Chapter 2 Getting Started the BHT and System Menu (7) Use the tweezers to pull the connector out. Tweezers (8) Connect the connector of a new backup battery with the red lead facing to the top. (9) Load the backup battery. Backup battery Black lead Red lead...
  • Page 62 (10) Store the wires inside the backup battery casing. Backup battery (11) Set the clear insulation sheet back into place while threading the battery pull strap through the cutout in the sheet. Clear insulation sheet Battery pull strap...
  • Page 63 Chapter 2 Getting Started the BHT and System Menu (12) Push the battery cartridge into the BHT. The end of the battery pull strap should come out from the under edge of the battery cartridge. (13) Set the battery cartridge cover back into place and return the release button to the original position. Battery cartridge cover Battery cartridge Battery pull strap...

  • Page 64: Resetting The Discharge Counter

    2.4.2 Resetting the Discharge Counter If you replace the backup battery, reset the internal discharge counter in the BHTSHELL System Properties Menu. For detailed operation, refer to Section 2.5.4, ", Backup Battery Discharge Counter."...

  • Page 65: Operating In System Menu

    2.5 Operating in System Menu 2.5.1 Desktop Upon completion of setting-up 2 (described in Section 2.3.2), the desktop appears on the touch screen as shown below. Double-tapping icons on the desktop runs the corresponding programs. My Device Chapter 2 Getting Started the BHT and System Menu On the desktop, double-tap My Device.

  • Page 66: Internet Explorer

    Recycle Bin BhtShell Internet Explorer On the desktop, double-tap Recycle Bin. The Recycle Bin opens. The Recycle Bin stores files you deleted in the BHT. To retrieve files stored in the Recycle Bin, select the file to be retrieved and choose File|Restore. To delete a file(s) in the Recycle Bin from the BHT memory permanently, select the file(s) to be deleted and choose File|Delete.
  • Page 67 Configuring Proxy Server Messenger Microsoft WordPad Chapter 2 Getting Started the BHT and System Menu When the Internet Explorer runs, choose View|Internet Options to call up the Options window. Tap the Connection tab to display the screen shown at left. Make your settings.
  • Page 68 My Documents Remote Desktop Connection On the desktop, double-tap My Documents. The screen shown at left appears. With this program, you can browse the file information in the BHT. On the desktop, double-tap Remote Desktop Connection. The screen shown at left appears.

  • Page 69: Start Menu

    2.5.2 Start Menu Terminal Internet Explorer On the Start menu, tap Programs|Internet Explorer to run Internet Explorer. For details, refer to Section 2.5.1, "Desk Top, Windows Explorer On the Start menu, tap Programs|Windows Explorer to run Windows Explorer. For details, refer to Section 2.5.1, "Desk Top, Chapter 2 Getting Started the BHT and System Menu Tap the Start button in the bottom left corner of the desktop.

  • Page 70: Control Panel

    Command Prompt Favorites On the Start menu, tap Favorites. Your Favorites list appears. To add items to your Favorites list, create a shortcut(s) of the desired file(s) in the \Windows\favorites folder. Documents On the Start menu, tap Documents. Recently opened documents appear. To add files to the Start menu, use the standard API "SHAddToRecentDocs().
  • Page 71 Backlight Properties On the Control Panel window, double-tap Backlight, and the Backlight Properties window appears. Chapter 2 Getting Started the BHT and System Menu - Backlight function Enable or disable the backlight function. If it is enabled, the backlight comes on when you press any key or tap the touch screen. - Backlight On-duration Set the ON-duration of the backlight that comes on when you press any key or tap the touch screen.
  • Page 72 BHTSettings System Properties On the Control Panel window, double-tap System, and the System Properties window appears. On the Control Panel window, double-tap BHTSettings, and the BHTSettings window appears. For details, refer to Section 2.5.4. [3] “System Properties." Tap the General tab to display the screen shown at left. Choose the Memory tab to display the screen shown at left.
  • Page 73 Chapter 2 Getting Started the BHT and System Menu Stylus Properties On the Control Panel window, double-tap Stylus, and the Stylus Properties window appears. You can adjust the double-tap speed. Tap the Calibration tab to display the window shown at left. Tab the Recalibrate to display the screen shown at left.
  • Page 74 Dialing Properties Owner Properties On the Control Panel window, double-tap Owner, and the Owner Properties window appears. On the Control Panel window, double-tap Dialing, and the Dialing Properties window appears. You can set up the telephone line. Tap the Network ID tab to display the window shown at left. You can specify a user name, password and domain required to access the network resource.
  • Page 75 Volume & Sounds Properties On the Control Panel window, double-tap Volume & Sounds, and the Volume & Sounds properties window appears. Chapter 2 Getting Started the BHT and System Menu Tap the Volume tab to display the screen shown at left. You can make the following settings: - Adjust the beeper volume except volumes for key entry and screen taps...
  • Page 76 Display Properties On the Control Panel window, double-tap Display, and the Display Properties window appears. Regional and Language Settings Properties Tap the Background tab to display the screen shown at left. You can select wallpaper to be displayed on your desktop. Tap the Appearance tab to display the screen shown at left.
  • Page 77 Network and Dial-up Connection On the Control Panel window, double-tap Network and Dial-up Connection, and the Connection window appears. PC Connection Properties Chapter 2 Getting Started the BHT and System Menu Double-tap the "Make New Connection" icon starts Wizard. Follow the Wizard instructions and set the connection name and type. Tap the PC Connection tab to display the screen shown at left.
  • Page 78 Date/Time Properties Input Panel Properties On the Control Panel window, double-tap Date/Time, and the Date/Time Properties window appears. You can specify the date, time and time zone. The entry range to the year is 2003 to 2099. On the Control Panel window, double-tap Input Panel, and the Input Panel Properties window appears.
  • Page 79 Taskbar On the Start menu, tap Settings|Taskbar. The Taskbar and Start Menu window appears. Chapter 2 Getting Started the BHT and System Menu Tap the General tab to display the screen shown at left. You can customize the taskbar. On the Start menu, tap Run, and the screen shown at left appears. You can run applications or open files.

  • Page 80: Operating In System Menu

    2.5.3 Operating in System Menu On the desktop, double-tap BhtShell. System Menu starts up to display the following screen: To run the items in System Menu, tap the desired item or press the corresponding numerical key. To quit System Menu, tap the The keys below are so designed that the function of each key is consistent in every screen.
  • Page 81 Structure of System Menu Menu 1 C(CLEAR) Menu 2 Menu 3 Chapter 2 Getting Started the BHT and System Menu System Menu Double-tapping the BhtShell shortcut icon on the desktop starts up System Menu. Execute Program Executes a user program you select. (Refer to Section 2.5.4, [ 1 ].) Communication Communicates with the host computer.
  • Page 82 Menu 4 C(CLEAR) Menu 5 Menu 6 Test Tests a variety of hardware operations. (Refer to Section 2.5.4, [ 4 ].) Explorer Runs Explorer. (Refer to Section 2.5.4, [ 5 ].) Version Shows the system program version and memory size. (Refer to Section 2.5.4, [ 6 ].)

  • Page 83: Detailed Description Of The Functions In System Menu

    2.5.4 Detailed Description of the Functions in System Menu [ 1 ] Execute Program ⇓ ⇓ Chapter 2 Getting Started the BHT and System Menu Choosing "1:Execute Program" in System Menu calls up the screen shown at left. With this menu, you can start an application you want. Tap the Browse button.

  • Page 84: 2 ] Communication

    [ 2 ] Communication [2.1] Ymodem Menu With this menu, you can set the communications parameters and download or upload files from/to the host computer. Choosing "2:Communication" in System Menu calls up the screen shown at left. [1] Ymodem: Switches to the Ymodem menu where you can set the Ymodem communications parameters and download/upload files.
  • Page 85 Setting the communications environments Tapping button on the Ymodem menu calls up the communications environments setting screen. When using connector interface When using IrDA interface After the BHT is initialized, the interface port and communications parameters are set as listed in the default table below.
  • Page 86 Downloading If you download a file having the same name as one already in the same folder, the newly downloaded file replaces the old one. ⇓ Specify a folder where you want to store a downloaded file and then tap button , and the BHT waits for a file to be downloaded.
  • Page 87 If an error occurs during downloading If some error occurs during downloading, the BHT beeps three times and shows one of the following screens. Chapter 2 Getting Started the BHT and System Menu Problem The memory is insufficient for storing files to be downloaded. Solution Delete unnecessary files in the memory or decrease the size of the file to be downloaded.
  • Page 88 Problem Downloading has failed. Solution Confirm the communications environment settings and then retry the download. It is also necessary to check the communications environment setup of the host computer. Problem Downloading has aborted. Solution Confirm communications communications log, then retry the download. It is also necessary to check the communications environment setup of the host computer.
  • Page 89 Chapter 2 Getting Started the BHT and System Menu Uploading Specify a file you want to upload and then tap button , and the BHT waits for a file to be uploaded. File you want to upload ⇓ Upon completion of uploading, the BHT sounds a long beep once and displays the screen shown at left.
  • Page 90 If an error occurs during uploading If some error occurs during uploading, one of the following screens will appear and the beeper beeps three times. Problem The file you attempted to upload was opened. Solution Close the file to be uploaded and then retry the upload. Problem Uploading has aborted.
  • Page 91 Chapter 2 Getting Started the BHT and System Menu Problem Timeout has occurred. Solution Confirm communications communications log, then retry the upload. It is also necessary to check the communications environment setup of the host computer. Problem No file has been correctly selected for uploading. Solution Select a file(s) to be uploaded and retry the upload.
  • Page 92 [2.2] ActiveSync (Infrared) Choosing "2:ActiveSync (Infrared)" on the Communication menu connects the BHT to the host computer via the Infrared interface port. When connecting the BHT to the host computer using ActiveSync (Infrared), arrange the BHT and host computer with their Infrared ports facing directly each other. When the CU-401 with RS-232C interface is used to connect the BHT with the host, no ActiveSync can be used.
  • Page 93 [2.3] ActiveSync (Serial) Choosing "3:ActiveSync (Serial)" on the Communication menu connects the BHT to the host computer via the connector interface port. If ActiveSync connection succeeds If ActiveSync connection fails If ActiveSync connection fails, the BHT beeps once and does not display the ActiveSync icon. Chapter 2 Getting Started the BHT and System Menu After a connection is established, the screen shown at left appears.
  • Page 94 [2.4] ActiveSync (USB) Choosing "4:ActiveSync (USB)" on the Communication menu connects the BHT to the host computer via the USB interface port. The BHT can be setup so that ActiveSync, which allows connection with the host computer, begins automatically when the USB cable is plugged into the BHT when it is turned on. For further details, refer to Section 2.5.4, "[3.3] Device Menu".
  • Page 95 [2.5] ActiveSync (RF) Choosing "5:ActiveSync (RF)" on the Communication menu connects the BHT to the host computer via the RF interface port. Before proceeding to "ActiveSync (RF)," you need to: - Set up a partnership between the host computer and BHT by running "ActiveSync (Infrared).", "ActiveSync (Serial)"...
  • Page 96 If connection to the network fails If connection to the network fails, the BHT beeps three times and displays the following screen. If no partnership has been set up If no partnership has been set up between the host computer and BHT, the BHT beeps three times and displays the following screen.

  • Page 97: 3 ] System Properties

    [ 3 ] System Properties [3.1] Barcode Black-and-white inverted label reading function (INVERT) This function makes it possible to read white bars on a black background. Activating this function might increase the frequency of bar-code reading errors. Usually this function should be set to OFF. Chapter 2 Getting Started the BHT and System Menu Choosing "3:System Properties"...
  • Page 98 DECODE LEVEL You may set the decode level. Decreasing the level value increases the bar-code reading efficiency, but the BHT might misread low-quality bar codes (split or stained). To the contrary, increasing the level value decreases the bar-code reading efficiency, but it will diminish the possibility of misreading. The setting range of the level value is from 1 to 9 and the default is 4.
  • Page 99 [3.2] Beeper/Vibration Adjusting the beeper volume Switching the beeper and vibrator Chapter 2 Getting Started the BHT and System Menu Double-tap the "Beeper/Vibration", and the Beeper/Vibration property appears. On this menu, you can adjust the beeper volume and switch the beeper and vibrator.
  • Page 100 [3.3] Control Panel [3.4] File System The table below shows which memory area will be initialized by the initialization transactions listed above. Data stored in the FLASH folder Data stored in other folders Registry * Note that the backup of the Registry will be erased. To back up the Registry again, follow the procedure given in Section 2.3.4, "[ 2 ] Backing up the Registry."...
  • Page 101 Chapter 2 Getting Started the BHT and System Menu Initializing the memory excluding the Registry You can initialize the memory excluding the Registry and files stored in the FLASH folder. Initializing procedure (1) Tap the Initialize tab and select the RAM radio button. (2) Tap the Initialize button.
  • Page 102 Initializing the memory including the Registry You can initialize the memory including the Registry but excluding files stored in the FLASH folder. Initializing procedure (1) Tap the Initialize tab and select the RAM radio button. (2) Select the Initialize Registry check box (3) Tap the Initialize button.
  • Page 103 Chapter 2 Getting Started the BHT and System Menu Initializing the FLASH folder You can erase all information stored in the FLASH folder and let the folder revert to the initial state. Initializing procedure (1) Tap the Initialize tab and select the FLASH radio button. (2) Tap the Initialize button.
  • Page 104 Running Scandisk through the FLASH folder If the power to the BHT is shut down when the FLASH folder is being accessed, some broken file fragments may remain in the FLASH folder so that the free memory space will be decreased. To remove or clear those fragments, run Scandisk through the FLASH folder.
  • Page 105 [3.5] Power Management • Setting the CPU performance to Fast consumes much power, decreasing the BHT operation period after battery charge. • CPU performance settings are available at the next run. Chapter 2 Getting Started the BHT and System Menu Double-tap the "Power Management", and the Power Management property appears.
  • Page 106 [3.6] Defining the SF key for keypad shift Double-tap the "Key", and the Key property appears. You can define the functions of the following keys: - SF key - M1 key - M2 key - M3 key - M4 key - M3 key (pressed halfway) - M4 key (pressed halfway) Choose the SHIFT tab on the Key definition menu to display the...
  • Page 107 Defining the M1, M2, M3 (left-hand trigger switch), and M4 (right-hand trigger switch) Defining the halfway pressed M3 through M4 keys Chapter 2 Getting Started the BHT and System Menu Choose the MAGIC Full-press tab on the Key definition menu to display the screen shown at left.
  • Page 108 If you define the M4 key as a backlight function on/off key, pressing the M4 key activates or deactivates the backlight function. Note that the backlight function on/off key can be assigned only to any one of M1 through M4 keys and halfway pressed M3 and M4 keys.
  • Page 109 Setting the keyboard 31-key pad Chapter 2 Getting Started the BHT and System Menu On the Key property window, pressing the 0 key with the SF key held down calls up the screen shown at left. Keyboard Emulation: Enable keyboard emulation: Select this checkbox to enable the keyboard emulation function.
  • Page 110 50-key pad On the Key property window, pressing the 0 key with the SF key held down calls up the screen shown at left. Keyboard Emulation: Enable keyboard emulation: Select this checkbox to enable the keyboard emulation function. Emulated keyboard layouts: When the keyboard emulation function is enabled, you can set the emulated keyboard layout.
  • Page 111 [3.7] Status Display [3.8] Radio Frequency Chapter 2 Getting Started the BHT and System Menu Double-tap the "Status Display", and the Status Display property appears. You can display or hide the following status indicators in the task tray: BATTERY: Battery voltage level Synchronization state SIP: Software input panel (Software keyboard)
  • Page 112 Displaying the wireless module version and opening/closing the RF device Displaying the IP address and MAC address Tapping the Info tab on the NIC Control property displays the screen shown at left. This menu displays the following: Driver Version: Version of the RF driver Firmware Version: Firmware version of the wireless module You can also open or close the wireless module by tapping the RF...
  • Page 113 Chapter 2 Getting Started the BHT and System Menu Tapping the Property button calls up the IP address setting screen. This property has the following tabs: IP Address tab: Used to set the IP address. Name Servers tab: Used to set the Name Servers. Tapping the IP Address tab on the property displays the screen shown at left.
  • Page 114 Setting the RF options Displaying the current communications link status Tapping the Link tab when the RF device is not opened automatically opens the RF device and displays the current communications link status. Tapping the Option tab on the NIC Control property displays the screen shown at left.You can set the following: Power: Select the power save mode for the wireless module.
  • Page 115 Testing with Ping Tapping the Ping Start button when the RF device is not opened automatically opens the RF device and runs Ping. Chapter 2 Getting Started the BHT and System Menu Tapping the Ping tab on the NIC Control property displays the screen shown at left.
  • Page 116 Entry Range for Data size, Interval, Timeout, and Count Item Data size Interval Timeout Count * Specification of zero (0) will set the number of echo requests to be sent to "infinite," keeping sending echo requests (until Ping is aborted). If you specify a value out of the allowable entry range listed above, the nearest value within the range will automatically apply.
  • Page 117 Ping Echo Request Send Timing Two types of echo request send timings are available: Type 1 and Type 2. The default is Type 2. • Type1 After sending an echo request, Ping will wait for the period specified by Interval and then send an echo request again.
  • Page 118 Backup Battery Discharge Counter ActiveSync automatic connection On the System Properties window, pressing the 0 key with the SF key held down calls up the screen shown at left. This screen displays the discharge count of the backup battery. If you replace the backup battery, tap the Reset button to reset the discharge counter to zero.

  • Page 119: 4 ] Test

    [ 4 ] Test If an error occurs in any of the above tests, contact your nearest dealer. Chapter 2 Getting Started the BHT and System Menu Choosing "4:Test" in System Menu calls up the screen shown at left. [1] BARCODE: Select the bar-code reading test.
  • Page 120 [4.1] Bar-code reading test ⇓ Bar-code type Number of digits of the bar code Data read Listed below is a table showing the relationship between the barcode types and the identifier letters to be displayed on the LCD. Bar-code Type EAN-13, UPC-A EAN-8 UPC-E...
  • Page 121 [4.2] Beeper scale test [4.3] Aging test Chapter 2 Getting Started the BHT and System Menu Selecting "2:BEEPER" on the Hard Test menu calls up the screen shown at left and sounds the beeper at three octaves listed below. Upon completion of this test, the BHT automatically returns to the Hard Test menu.
  • Page 122 [4.4] Communications test In System Menu, you can test the IrDA interface port and USB interface port. Preparation for the IrDA interface test Arrange two BHTs, one as a master station and the other as a slave station (to be tested) with their IR ports facing each other as illustrated below.
  • Page 123 Testing the IrDA interface port Chapter 2 Getting Started the BHT and System Menu Selecting the "1:OPTICAL" on the COM menu calls up the screen shown at left. At the slave BHT to be tested, select the "1:SLAVE" and at the master BHT, select the "2:MASTER."...
  • Page 124 If the IrDA interface test ends abnormally: If the test ends due to a timeout error, the tested slave BHT beeps three times and displays the screen as shown at left. This sample screen shows that an error has occurred at 2400 bps. If the test ends due to mismatch between the sent data and received data, the tested slave BHT beeps three times and displays the screen as shown at left.
  • Page 125 Testing the USB interface port If ActiveSync connection succeeds via the USB interface port If ActiveSync connection fails via the USB interface port If ActiveSync connection fails, the BHT beeps once and does not display the ActiveSync icon. Chapter 2 Getting Started the BHT and System Menu Selecting the "2:USB"...
  • Page 126 To terminate the USB interface test There are two ways to terminate the USB interface test--"Disconnect the USB interface cable" and "Disconnect the link with the button in the task tray (as described below)." (1) Double-tap the ActiveSync icon (circled in red at left) in the task tray.
  • Page 127 [4.5] LCD and indicator LED tests C(CLEAR) key ⇑ ⇓ ENT key C(CLEAR) key ⇑ ⇓ ENT key C(CLEAR) key ⇑ ⇓ ENT key Chapter 2 Getting Started the BHT and System Menu Selecting "5:DISPLAY" on the Hard Test menu calls up the test pattern shown at left on the LCD and turns on the indicator LED in blue.
  • Page 128 C(CLEAR) key ⇑ ⇓ ENT key C(CLEAR) key ⇑ ⇓ ENT key C(CLEAR) key ⇑ ⇓ ENT key The checker pattern is reversed. The gray screen appears with a one-dot wide white outline. Forty eight right-angled triangles appear.
  • Page 129 Chapter 2 Getting Started the BHT and System Menu The gradation pattern appears. Press the ENT key, and the BHT returns to the Hard Test menu.
  • Page 130 [4.6] Key entry and vibrator test The table below shows the relationship between the keys and the identifier letters to be displayed on the LCD. 31-key pad Letter < > M3 halfway pressed M4 halfway pressed C(CLEAR) BS/SP FUNC FUNC SEND SEND SCAN...
  • Page 131 50-key pad Letter < > M3 halfway pressed M4 halfway pressed FUNC FUNC SCAN SCAN (Note) Only when the M1 or M2 key is pressed, the vibrator works. Chapter 2 Getting Started the BHT and System Menu Letter After all keys are pressed and displayed on the LCD, this test automatically ends and the screen returns to the Hard Test menu.

  • Page 132: 5 ] Explorer

    [ 5 ] Explorer [ 6 ] System Information Choosing "5:Explorer" in System Menu calls up the screen shown at left. Choosing "6:Version" in System Menu calls up the screen shown at left.

  • Page 133: Wireless Zero Configuration (Wzc)

    Wireless local area network (Wireless LAN) environment has not yet been established following purchase of the BHT unit. (BHT-400BW-CE only) If this screen does not display, double-tap the Wireless Zero Configuration status icon in the task tray to display.
  • Page 134 IP Information Tapping the IP Information tab on the WZC Menu displays the screen shown at left. Internet Protocol (TCP/IP) settings information displays at this menu. Renew: When the IP address is set to be acquired from the DHCP server, tap the Renew button to reacquire the IP address from the DHCP server.
  • Page 135 Wireless Information Wireless Properties Chapter 2 Getting Started the BHT and System Menu Tapping the Wireless Information tab on the WZC Menu displays the screen shown at left. The SSID list for which a search was performed automatically by the BHT displays.
  • Page 136 • Security and Setting Method The security level can be changed based on combinations of the encryption and authentication. The setting parameters for each security level are shown in the table below. Setting parameter None Encryption Disabled Authentication – Network key –...
  • Page 137 Chapter 2 Getting Started the BHT and System Menu • Settings when PEAP, TLS Selected for EAP Type Tapping the Properties… button on the Wireless Properties window displays the screen shown at left. Displays the User Certificate issuance information. Select the Validate Server check box to enable the certificate server. Default: Enabled When TLS is selected for the EAP type, tapping the Select…...
  • Page 138 Advanced Wireless Settings Wireless Networking Log Tap the Advanced… button from the Wireless Information tab to display the screen on the left. Use Windows to configure my wireless settings: Select this check box to automatically perform wireless network settings at Windows CE. This check box should always be selected.
  • Page 139 Communications Operations of the BHT Describes the communications operations of the BHT—the wireless communication (BHT-400BW-CE only), infrared communication, USB interface specifications, connector interface specifications, basic communications specifications, communication using Ymodem, and ActiveSync--for data transfer with the host computer or other devices.

  • Page 140: Wireless Communication

    3.1.1 Notes for Wireless Operations • If there are too many communications errors, first make sure that the BHT-400BW-CE points directly at an access point because the 2.4-GHz band requires a more or less straight line path. Note also that the low-power radio waves have trouble passing through human bodies and other obstacles along that path.

  • Page 141: Infrared Communication

    3.2 Infrared Communication The BHT has an integrated infrared (IR) communications device which enables wireless transfer of programs and data between the BHT and the host computer and between the BHTs, instead of the conventional wire transfer. The IR communications device features the following: •...

  • Page 142: Connector Interface Specification

    3.3 Connector Interface Specification The BHT is equipped with a connector interface for communicating with the host PC. (1) Specification • USB1.1, Full-speed compliant • RS-232C interface (2) Connector : TCX5110 HOSIDEN Pin No. (Note 1) The Input / Output direction is stipulated from the BHT side. (Note 2) Use the exclusive cable only.
  • Page 143 (3)-1 Interface circuit (USB) USB Driver／Receiver (3)-2 Interface circuit (RS-232C) Output circuit TxD, RTS Signal Level Output voltage “H” (3KΩ load) Output voltage “L” (3KΩ load) Input voltage “H” Input voltage “L” (Note 1) Input / Output voltages are specified at the terminal of the interface connector. (Note 2) Output voltage becomes unsettled when the connector communication device file is closed.

  • Page 144: Basic Communications Specifications And Ymodem

    3.4 Basic Communications Specifications and Ymodem 3.4.1 Basic Communications Specifications Listed below are the communications specifications when the BHT exchanges data with a host computer through the CU-400 (IrDA interface) or the connector interface*. Synchronization Transmission Speed Transmission Code Transmission Bit Order Vertical Parity Synchronization For accurate data transaction, it is very important to synchronize the transmission between the sender...
  • Page 145 Transmission Code and Bit Order All characters should be coded to 7 or 8-bit code for data transmission. The transmission bit order is LSB (Least significant bit) first. What follows is an example for transmitting character A (41h, 01000001b) with an even parity and a single bit each for start and stop bits.

  • Page 146: Using Ymodem

    3.4.2 Using Ymodem In System Menu and user programs, the BHT can use the Ymodem protocol with the following communications parameters: Port Transmission Speed Character Length Vertical Parity Stop Bit Length In System Mode Refer to Section 2.5.4, "[ 2 ] Communication." In User Programs Refer to the "BHT-400-CE API Reference Manual"...

  • Page 147: Activesync

    3.5 ActiveSync With Microsoft ActiveSync, the BHT can exchange data with the host computer connected by IrDA, USB, connector interface, or wireless communication (BHT-400BW-CE only). ActiveSync enables the following: Synchronized data transmission Backing up data Copying or transferring data Debugging user programs 3.5.1 Configuring the Host Computer...

  • Page 148: Connection Using Activesync

    3.5.2 Connection Using ActiveSync When connected by IrDA, USB, or connector interface IrDA communication Arrange the BHT and host computer with their IrDA ports facing directly each other as shown below. No ActiveSync can be used for connection via the CU-400 (RS-232C interface). Host Computer For the operating procedure of ActiveSync on the BHT, refer to Chapter 2, Section 2.5.4, "[2.2] ActiveSync (Infrared)."...
  • Page 149 Chapter 3 Communications Operations of the BHT USB communication Connect the BHT to the host computer by using a USB interface cable as shown below. Host Computer USB interface cable For the operating procedure of ActiveSync on the BHT, refer to Chapter 2, Section 2.5.4, "[2.4] ActiveSync (USB)."...
  • Page 150 Setting up a partnership ⇓ ⇓ ⇓ Upon completion of connection between the host computer and BHT, the host computer displays the screen shown at left. On this screen, set up a partnership between the host computer and BHT. Click the Yes radio button and then click Next. Type an arbitrary BHT name in the Device name box and click Next.
  • Page 151 For debugging of user programs using ActiveSync, refer to the "BHT-400-CE API Reference Manual" or "BHT-400-CE Class Library Reference Manual." In wireless LAN (BHT-400BW-CE only) Like ActiveSync in wireless LAN, ActiveSync in wireless LAN requires a partnership between the BHT and host computer to be set up.

  • Page 153: Error Messages

    Chapter 4 Error Messages This chapter lists the error messages which will appear on the LCD if some error occurs in the BHT. System Errors...134...

  • Page 154: System Errors

    4.1 System Errors If some error occurs when the power is turned on or during program execution, one of the following error messages will appear on the LCD. System Program error Problem A System Program error has occurred. If this error occurs, the BHT beeps five times (for 0.1 second per beep) and then turns itself off.
  • Page 155 Shutdown due to low battery Problem When the power is turned on or off or during execution of applications, the battery output level has lowered so that the BHT no longer operates. If lower battery is detected, the BHT beeps five times (for 0.1 second per beep) and then turns itself off.
  • Page 157 This chapter describes the handling procedure of the communication unit CU-400, the interfacing with the host PC, and the charging of the rechargeable battery cartridge. Functions of the CU-400 ...138 Components and Functions ...139 Applying Power to the CU-400...140 Communicating with the Host PC ...142 5.4.1 Setting the Transmission Speed of the CU-400 ...142 5.4.2 Interface Cable Connection ...143 5.4.3 Interfacing with the Host PC ...144...

  • Page 158: Functions Of The Cu-400

    5.1 Functions of the CU-400 The optical communication unit CU-400 series is available in two models: CU-401 and CU-421. The CU-400 series has the following functions: (1) Data exchange function The CU-401/421 exchanges data and programs between the BHT and the host PC. Interface with the BHT: Interface with the host PC: RS-232C (CU-401) (2) Battery cartridge charging function...

  • Page 159: Components And Functions

    5.2 Components and Functions Indicator LED Shows the charging state. IrDA interface port Used to exchange data optically with the BHT. Status indicators POWER LED (green) Lights when the power is applied to the CU. DATA Communications LED (green) Lights when the BHT is communicating with the host PC.

  • Page 160: Applying Power To The Cu-400

    5.3 Applying Power to the CU-400 CU-401: The CU-401 should be powered from a wall socket via the dedicated AC adapter. Connect the outlet plug of the AC adapter to the power inlet connector of the CU-401, then plug the other end into a wall socket.
  • Page 161 • If smoke, abnormal odors or noises come from the CU, immediately unplug the AC adapter from the wall socket and contact your nearest dealer. Failure to do so could cause fire or electrical shock. • If foreign material or water gets into the CU, immediately unplug the AC adapter from the wall socket and contact your nearest dealer.

  • Page 162: Communicating With The Host Pc

    5.4 Communicating with the Host PC 5.4.1 Setting the Transmission Speed of the CU-400 CU-401: Set the transmission speed to the same value as that of the BHT and host PC, by using the DIP switch. The DIP switch is located next to the power inlet connector on the side of the CU-401. (1) Remove the protection sheet of the DIP switch from the CU-401.

  • Page 163: Interface Cable Connection

    5.4.2 Interface Cable Connection (1) Unplug the AC adapter of the CU-400 from the wall socket. (2) Make sure that the host PC is turned off. (3) CU-401: Connect the RS-232C interface cable to the interface port of the CU-401. CU-421: Connect the USB interface cable to the interface port of the CU-421.

  • Page 164: Interfacing With The Host Pc

    5.4.3 Interfacing with the Host PC This section describes how to start communication with the host PC from System Menu. The same may apply when you use a user program. (1) Turn the host PC on to run Windows. (2) CU-401: Plug the AC adapter into a wall socket. CU-421: Plug the AC adapter into a wall socket, if necessary.

  • Page 165: Charging The Rechargeable Battery Cartridge (Using The Cu-400)

    5.5 Charging the Rechargeable Battery Cartridge (using the CU-400) You can charge a rechargeable battery cartridge loaded in the BHT. Be sure to turn the BHT off before starting charging. Service Life of Rechargeable Battery Cartridge: Lithium-ion batteries used in the rechargeable battery cartridge will gradually deteriorate during the repeated cycles of charging and discharging due to its properties, even under normal use.
  • Page 166 Charging Operation and LED Indication Operator's Action Place the BHT on the CU-400. ⇓ After approx. 3 hours when the CU-401/421 is powered from the C adapter ⇓ Remove the BHT. If the CU-421 is self-powered via the USB interface from the USB host (PC) or USB hub and the host PC is in suspend mode, the CU-421 cannot charge the battery cartridge.

  • Page 167: Interface Specifications

    5.6 Interface Specifications [ 1 ] Interface Connector and Pin Assignment CU-401 The CU-401 has an RS-232C interface port (Dsub-9P). RS-232C interface port (Dsub-9P) on the CU-401 Pin No. Signal The input/output voltage threshold for the logical valued signal is listed below. Logical Value CU-421 The CU-421 has a Full-Speed USB 1.1-capable port (Series B receptacle).

  • Page 168: 2 ] Interface Cable Connection

    [ 2 ] Interface Cable Connection CU-401 As illustrated below, connect the CU-401 (on which the BHT is put) to a host PC with a cross-mode cable. To connect it to a modem, use a straight-mode cable. CU-401 (DTE) Cable Connection between CU-401 and Host PC CU-401 (DTE) Cable Connection between CU-401 and Modem...
  • Page 169 Appendix A. Specifications ...150 BHT-400B-CE/400BW-CE ...150 [ 1 ] Product Specifications ...150 [ 2 ] Bar Code Specifications...151 [ 3 ] Interface Specifications...153 CU-400 ...155 [ 1 ] Product Specifications ...155 [ 2 ] Charging Requirements ...155 [ 3 ] Interface Specifications...156...

  • Page 170: Appendix A. Specifications

    Appendix A. Specifications A.1 BHT-400B-CE/400BW-CE [ 1 ] Product Specifications Power Source Main power Dimensions (W) x (L) x (H) Weight Operating Ambient Temperature Operating Humidity Ambient Illuminance Controller Keypad Display Calendar Clock Reading Confirmation Rechargeable lithium-ion battery cartridge (3.7 VDC) 78 x 224 x 53 mm (3.07 x 8.81 x 2.08 inches)

  • Page 171: 2 ] Bar Code Specifications

    [ 2 ] Bar Code Specifications (1) Available Bar Code Types Bar code type Universal product codes EAN-13 EAN-8 UPC-A UPC-E EAN-13 with add-on EAN-8 with add-on UPC-A with add-on UPC-E with add-on 2-digits add-on 5-digits add-on Interleaved 2of5 (ITF) Standard 2of5 (STF) Codabar (NW-7) Code 39...
  • Page 172 (3) Bar Code Label Size Recommended width: 10 mm min. (0.39 inch min.) Length: (Distance from bar codes to the 400 mm (15.7 inches) (4) Thickness of Bars and Depth of Field Minimum narrow bar width 0.125 mm (4.92 mils) 0.15 mm (5.91 mils) 0.19 mm...

  • Page 173: 3 ] Interface Specifications

    [ 3 ] Interface Specifications IrDA Interface Synchronization: Input signals: Output signals: Transmission speed: Connector Interface Specification: Connector: Pin assignment: Pin No. (Note 1) The Input / Output direction is stipulated from the BHT side. (Note 2) Use the exclusive cable only. (Note 3) When the RS-232C detect signal is at a low level, it will detect that the BHT is connected to the RS-232C interface.
  • Page 174 Wireless Interface (BHT-400BW-CE only) Specification: Radio type: Frequency bands: Data rate: Modulation type: Channels: IEEE 802.11b/g OFDM, DS-SS 2400MHz – 2483.5MHz 54/48/36/24/18/12/9/6/11/5.5/2/1Mbps (The data rate is automatically controlled.) 64-QAM/16-QAM/CCK/QPSK/BPSK (The modulation is automatically controlled.) 13 (European Union) 11 (United States)

  • Page 175: 1 ] Product Specifications

    A.2 CU-400 [ 1 ] Product Specifications Power Source Power Consumption (AC adapter output) Dimensions (W) x (L) x (H) Weight Operating Ambient Temperature Operating Humidity *NOTE: Can be powered from a wall socket via the dedicated AC adapter. [ 2 ] Charging Requirements CU-401/CU-421 (When using the AC adapter) Charge current: Approx.

  • Page 176: 3 ] Interface Specifications

    [ 3 ] Interface Specifications CU-401 RS-232C interface port (Dsub-9P) on the CU-401 Pin No. Signal Shown below is a diagram of the internal connection in the CU-401. CU-421 The USB interface on the CU-421 is USB1.1 (Full-speed) compliant with a type-B receptacle. Functions Receive data Send data...

  • Page 177: Appendix B. Loading An Optional Compact Flash Card

    Appendix B. Loading an Optional Compact Load an optional Compact Flash card to the BHT using the following procedure. (1) Open the Compact Flash card slot cover and insert the Compact Flash card with the surface facing upwards. Compact Flash card slot cover Compact Flash (2) Press the Card release button to remove the Compact Flash card.

  • Page 178: Appendix C. Quality Assurance Standards

    Appendix C. Quality Assurance Standards C.1 Applicable Standards Country or Region United Standard States Canada European 89/336/EEC EN 55022:1998 Union Australia Radio United Standard States Canada European 1999/5/EC** EN 60950-1 :2001 +A11 Union Laser United Radiation States Standard European Union : meet this standard ** This regulation applies to the built-in radio communication module only.

  • Page 179: Interface Cables

    C.2 Interface Cables With the interface cables described in this section, DENSO WAVE has run the quality assurance test conforming to the EMC Directive for the BHT-400B-CE/400BW-CE and CU-400. Any connectors other than those specified here are not acceptable. They may cause the BHT or CU to fail to work according to the specifications.
  • Page 180 BHT-400B-CE/400BW-CE. Please feel free to send your comments regarding any errors or omissions you may have found, or any suggestions you may have for generally improving the manual. In no event will DENSO WAVE be liable for any direct or indirect damages resulting from the application of the information in this manual.
