AV Link HDM-LNW User Manual

HDMI OVER IP
Extender
HDM-LNW
HDM-RNW
U M
SER ANUAL
HDM-ENW
Package Contents-
 1x HDM-LNW and HDM-RNW Unit

1x user manual

2x Power adapter DC 12V with lock

4x screws
 8x foot pads
 1x IR receiver cable
1x IR blaster cable (Peak Wavelength 940nm)

Any thing missed, please contact with your vendor.
Features

HDTV resolution up to 1080p@60.

HDMI signal up to 100 meter on HDTV.
 Use CAT.5/5E/6 cable to install easily.
 Support RS-232.

HDMI Compliant.

HDCP Compliant.
 RS-232 Extender.

Supports Web server system setup.
Specifications
Function
HDMI Input Connector
HDMI Output Connector
LED indicators
LINK
IR IN
IR OUT
IR Carrier Frequency
BAUD RATE SETTING
DIP SW
Power Adapter (Min.)
HDMI Output Max.
Resolution
HDMI Output (Color
Space)
Cat.5e Cable Distance
V1.1
RS-232 Connector
Baud Rate
Housing
Weight
Dimensions (LxWxH)
HDM-LNW HDM-RNW
1
NONE
(A-Type Female)
1 (A-Type Female)
POWER
RJ-45 Connector x 1
3.5ψ Stereo Jack
NONE
x 1
3.5ψ Stereo Jack
NONE
x 1
20KHz ~ 60KHz
3 PIN DIP SWITCH
8 PIN DIP SWITCH
DC 12V (LOCKING JACK)
1080p@60 (8Bits) 1080P@60 (8Bits)
YCbCr 4:4:4 RGB
100 meters (Max.)
DB9 Female x 1
2400 up to 115200 bps; 8 data bits,
1 stop bit, no parity
Metal
338g 330g
150x80x35mm
-1-

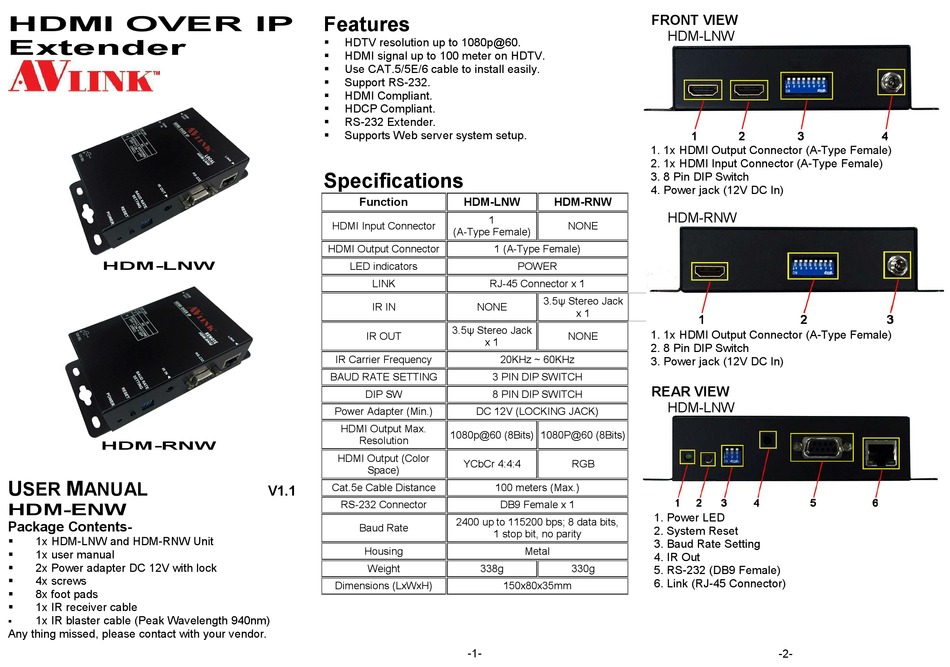

FRONT VIEW
HDM-LNW
1. 1x HDMI Output Connector (A-Type Female)
2. 1x HDMI Input Connector (A-Type Female)
3. 8 Pin DIP Switch
4. Power jack (12V DC In)
HDM-RNW
355g
1. 1x HDMI Output Connector (A-Type Female)
2. 8 Pin DIP Switch
3. Power jack (12V DC In)
REAR VIEW
HDM-LNW
1. Power LED
2. System Reset
3. Baud Rate Setting
4. IR Out
5. RS-232 (DB9 Female)
6. Link (RJ-45 Connector)
-2-
