AV-300-MINI/1500-MINI is radio transmission system designed to transmit analog Video (composite
CVBS) and audio signals outside of buildings. The device uses one of seven available radio channels
(5470MHz ~ 5860MHz), set by dipswitches. Digital PLL generates high frequency, providing excellent work
stability and high resistance to radio interference from adjacent frequencies.
Device includes an airtight case with active directional antenna and required connectors. This solution
allows to obtain optimal radio range because radio signal isn't attenuated on cables beetween antenna and
radio transmitter / receiver.
System can be used on professional CCTV installations to transmit Audio and Video from cameras, to
Video presentation, Audio/Video solutions in home and hobby.
Audio Video signal are transmit in real-time without compression and delays. It's important to choose
right place for installation and precisely align antennas.
Place of installation
5.8GHz frequency provides high quality Video and protection from radio interferences, but it has defects just
like devices using microwave frequencies (for example satellite antenna).
1. Antennas in devices needs to be accurately aligned relative to each other.
2. All solids, also the wood and leaves of trees attenuates microwaves.
3. Antennas of sets need to be visible and the field of view needs to be clean at 3 meters from center of
antenna (6m diameter).
Sometimes is important to use high mast, trim trees or remove other barriers. Devices are more safety
against radio signal attenuation, when are hanging higher off the ground.

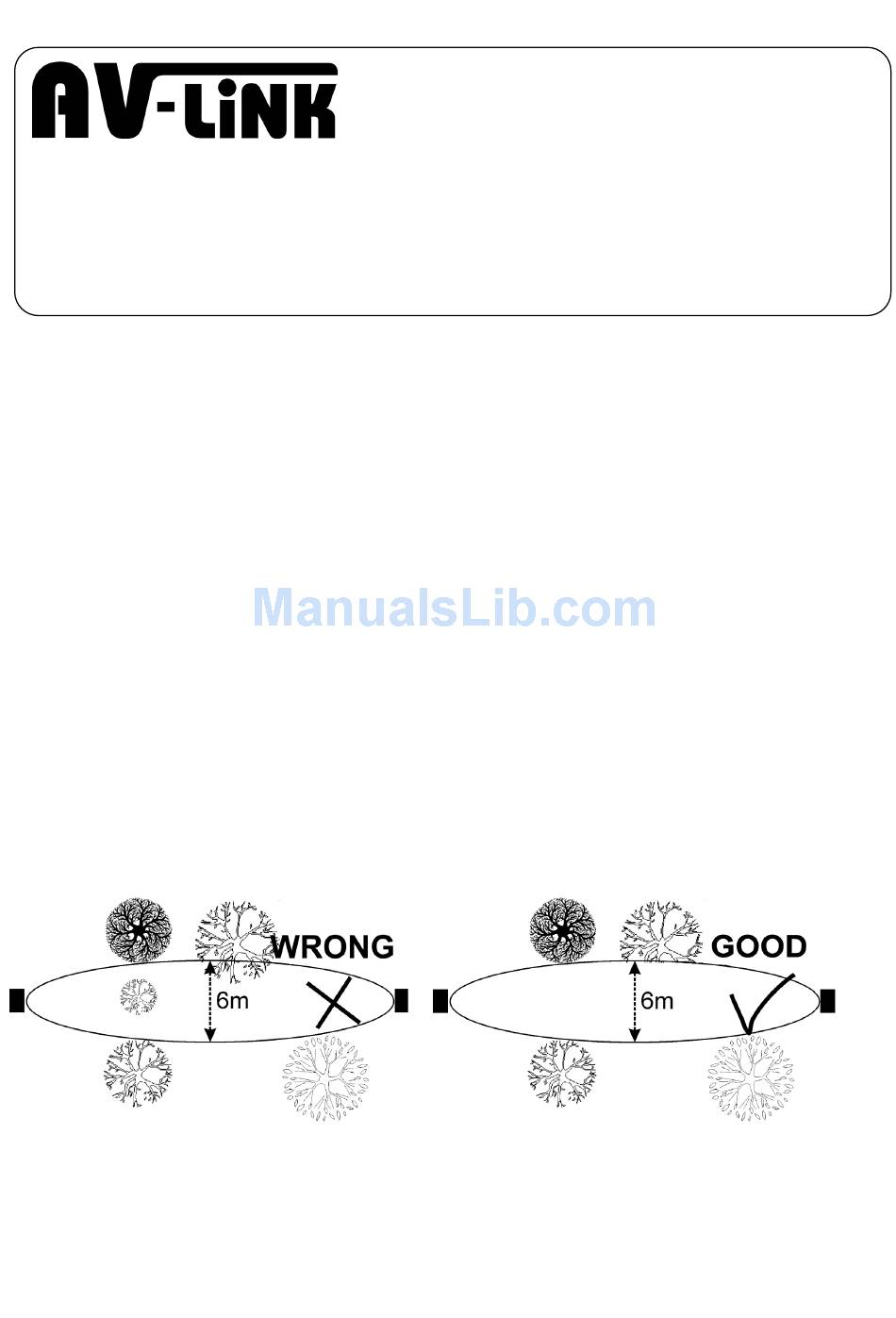

Land view from top. Land diameter without hindrance should be at least 6m.
** Available only in model AV-1500-MINI
Model
5.8GHz Audio / Video signal transmission set
AV-1500-MINI
AV-300-MINI
v1.1
Advertisement
Related Manuals for AV Link AV-1500-MINI
Summary of Contents for AV Link AV-1500-MINI
- Page 1 Sometimes is important to use high mast, trim trees or remove other barriers. Devices are more safety against radio signal attenuation, when are hanging higher off the ground. Land view from top. Land diameter without hindrance should be at least 6m. ** Available only in model AV-1500-MINI...
- Page 2 Mounting of device* Wall Antenna Construction of AV-1500-MINI is designed to mounting Bracket on wall of buildings. Device is equipped on articulated bracket, which allows regulation in horizontally and vertically. Regulation in horizontally and vertically is done by loosening screw, which clamping the articulated.
- Page 3 9V +12V / GND pins are designed to power supply of device. Connected power adapter voltage should be 12VDC. Power input is protected from reverse polarity. Power correctness is indicated by LED diode. ** Available only in model AV-1500-MINI...
- Page 4 Video Video + Audio Audio Example of typical application for AV-1500-MINI model Device adjustment The set doesn’t need special knowledge and expensive tools for installing. The most important is proper positioning of transmitter and receiver a according to recommendations of instructions and aligned relative antennas to each other.
- Page 5 AV-300: Up to 300 meters in open area 18 Radio range AV-1500: Up to 1500 meters in open area Manufacturer reserves right to change technical specification without to prior notification. Producer of wireless Audio / Video transmission www.AV-LiNK.pl ** Available only in model AV-1500-MINI...
