AV Link HX-RUW2 User Manual

HDMI
EXTENDER
HX-RUW2
(Remote)
U M
SER ANUAL
HX-RUW2
Package Contents-
1x HX-RUW2 Remote Unit
1 user manual
1x Power adapter DC 12V with lock
1x IR Blaster Cable
1x IR Receiver Cable
2x screws
4x foot pads
Any thing missed, please contact with your vendor.
-1-
Features
Through the HDMI Extender, you can use one source
device (HDBaseT output port) to display.
Extension of HDMI signal up to 100/70 meter on
HDTV
HDCP Compliant
Supports 3D pass-through
Supports all frequency band IR control
One CAT.5e/ CAT.6 cable extension
Supports resolution up to 4Kx2K
HDBaseT technology
Use CAT.5e/ CAT.6 cable to install easily
Specifications
Function
HDMI Out Connector
RJ-45 Connector
IR IN
IR OUT
Max. Resolution
Cable Distance
Power Adapter (Min.)
Housing
Weight
Dimensions (LxWxH)
V1.0

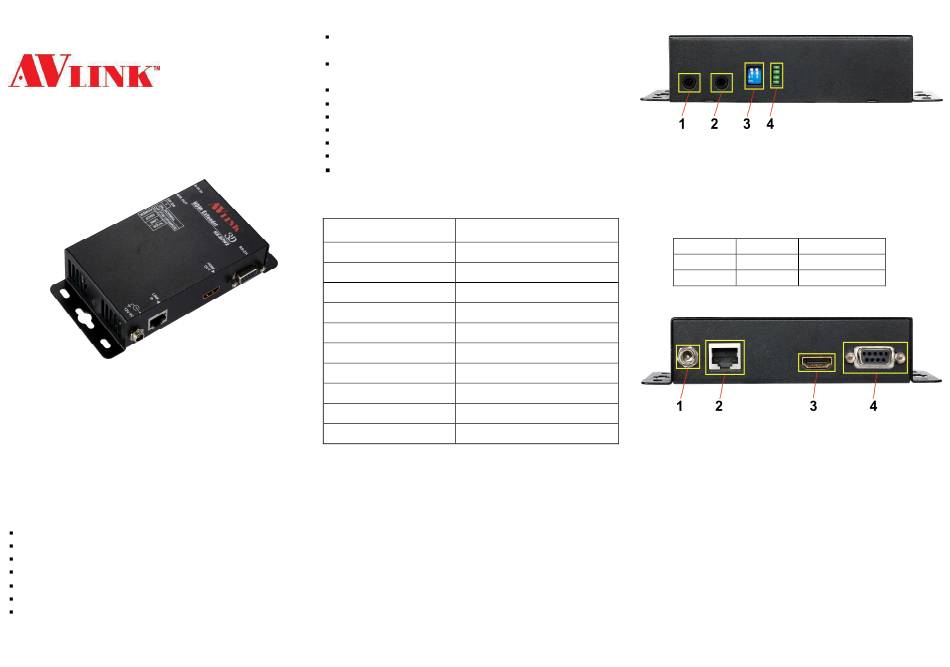

REMOTE FRONT VIEW
HX-RUW2
HDMI A-Type Female x 1
1
3.5ψ Stereo Jack x 1
3.5ψ Stereo Jack x 1
4Kx2K
100 m
DC 12V with lock
Metal
315g
150x80x35 mm
Installation
1. Turn off the source device and HDTV.
2. Connect the HDMI extension cable between the HDTV
3. Connect the CAT.5e/ CAT.6 cables between the source
device and the HX-RUW2 "LINK" port of extender.
4. Connect the power cord and turn on the extender.
5. Turn on the source device (equipment) and HDTV.
-2-
1. IR IN
2. IR OUT
3. 2PIN DIP Switch
4. 4-IN-1 LED
(MODE LED、LINK LED、HDCP LED、POWER LED)
DIP SWITCH SETTING
Select RS-232 or F/W upgrade mode:
1 2 Mode
OFF NC RS-232
ON NC F/W upgrade
REMOTE REAR VIEW
1. Power jack (12V DC)
2. LINK (RJ-45 Connector)
3. HDMI OUT
4. F/W UPGRADE
and the "HDMI OUT" port of HX-RUW2.
-3-
